15-0401 Funda de cuarzo UV para ATS EV-8E
Q&As
15-0401 Funda de cuarzo UV para ATS EV-8E
Q&As
Part Number:
15-0401
Alt Part Number:
15-0401
ATS-476D
QTRI8
WTA-476D
...
close
El manguito de cuarzo de repuesto protege la lámpara UV y garantiza el correcto funcionamiento en los sistemas de las series ATS EV y GDS.
Read More
Subscription Details
Automatic deliveries and charges at your selected frequency. Skip, reschedule, or cancel through your subscription account. View subscription details.
IN STOCK
Descripción

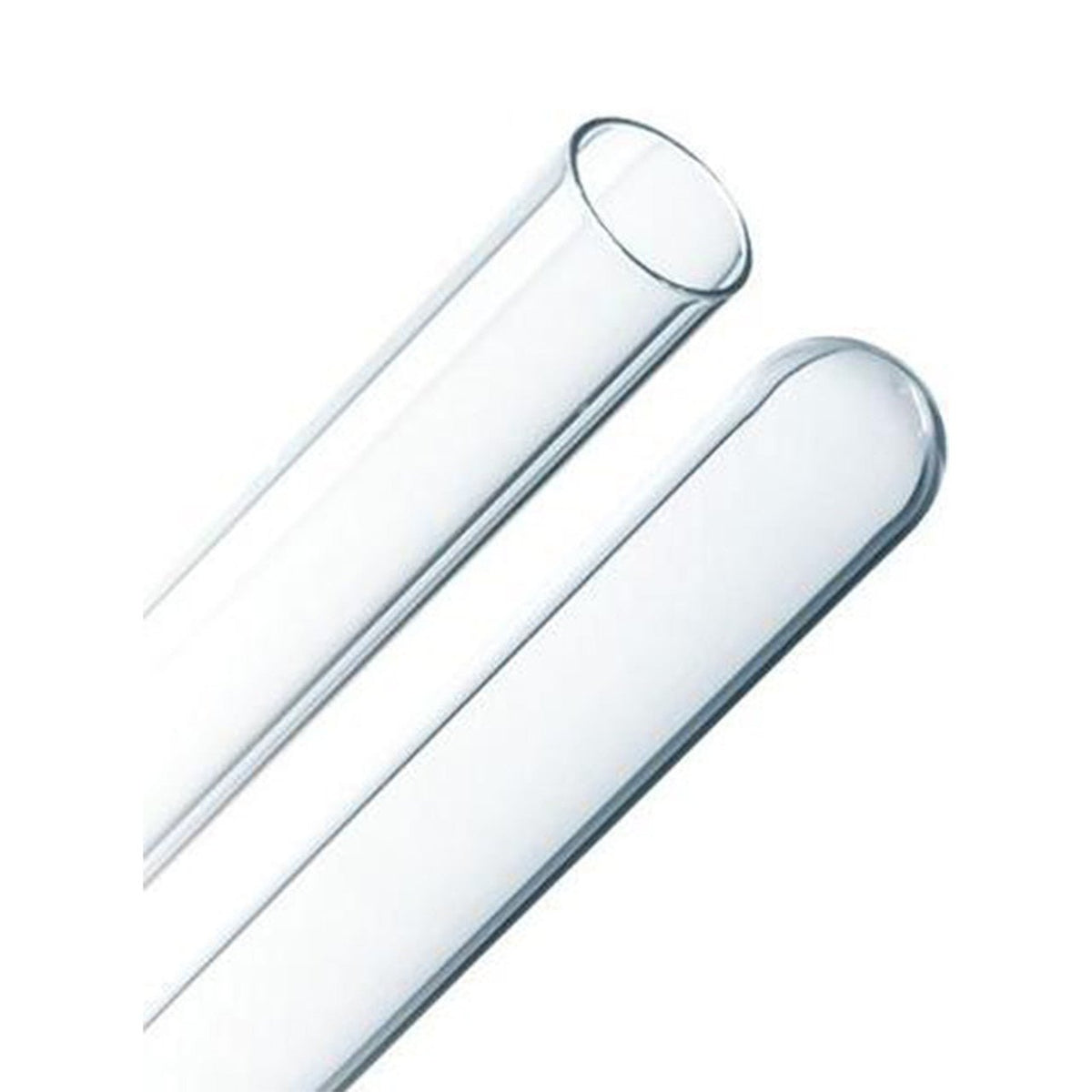

Funda de cuarzo de repuesto para los sistemas UV Aqua Treatment Services (ATS) EV-8E, GDS-8, SL-8V y otros sistemas UV genéricos. La funda de cuarzo 15-0401 está cerrada en un extremo con un diámetro exterior de 24,5 mm y una longitud de 476 mm (18,75 pulgadas). La funda de cuarzo evita que la lámpara UV se cortocircuite y mantiene la temperatura de funcionamiento ideal de la lámpara de 104 grados Fahrenheit. La acumulación de minerales dificulta la eficacia de la lámpara.
Specs
- Reemplace cada 24 meses o según sea necesario
- Cerrado en un extremo
- Longitud: 18,75"/476 mm
- Diámetro interior: 22 mm
- Diámetro exterior: 24,5 mm
Features
Overall rating: 4.85 / 5 from 20 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["shipping","order","service","sleeve","process","replacement","issues"].
Review highlights
Reviews
Emergency help
"Needed emergency help with a water treatment part, and ESP delivered! Great service!"
Excellent customer service
"My order was processed quickly and professionally and I received it the next day as scheduled. Thank you!"
15-0401 Quartz sleeve
"Easily installed and working as it should"
Perfect for my Water System
"Excellent replacement for regular system maintenance"
"Wrong part. Customer service was great (second wrong tube sent). They put me directly in touch with Aquasana and the correct part shipped out. Easy return process."
Excellent service
"I’ve been sourcing both the sleeve and the companion bulb from ESP since approximately 2019. The process is very seamless and the one time that the items were damaged in transit, replacements were expedited and received in 48 hours - no questions asked. You can’t ask for better than that. These guys are good."
Thank You
"Thank You"
Works great
"The sleeve we purchased had worked well. Haven’t had any issues with anything we have bought. Would recommend this company."
Straightforward
"I recall that my purchase was simple and straightforward. No problems."
Perfect
"We've been ordering from here for 4years now and we've had no problems , the shipping is super quick and everything is safely wrapped."
Q&A
Q:
Which UV systems use the 15-0401 UV quartz sleeve?
A:
The catalog lists EV-8E, ATS EV-8E, ATS GDS-8, ATS PFC-8, ATS SL-8V. Check the exact model or part number on the existing equipment before ordering 15-0401 UV quartz sleeve.
Q:
What does the quartz sleeve do?
A:
It keeps the UV lamp isolated from the water and helps the lamp operate at the intended temperature while allowing UV energy to pass into the chamber.
Q:
When should the 15-0401 UV quartz sleeve be replaced?
A:
Replace it if it is cracked, chipped, clouded, etched, or cannot be restored during routine maintenance. Many owners replace a sleeve about every 24 months, depending on water conditions and the system manual.
Q:
Can mineral deposits be removed instead of replacing the sleeve?
A:
Light mineral film can often be removed with a manufacturer-approved scale remover such as CLR or Lime-A-Way. Rinse thoroughly and let the sleeve dry before reassembly; replace it if deposits or clouding remain. The sleeve is closed at one end, approximately 24.5 mm OD, and about 476 mm long.
Q:
Should the sleeve O-rings be inspected during service?
A:
Yes. Replace seals that are cut, flattened, stretched, or brittle, and apply only a light coating of food-grade silicone lubricant if the manual calls for it.
Q:
What installation mistakes can damage a quartz sleeve?
A:
Uneven retaining-nut pressure, pinched seals, grit on sealing surfaces, and forcing the sleeve can cause cracks or leaks. Shut off water and power, relieve pressure, and handle the sleeve with clean gloves.
