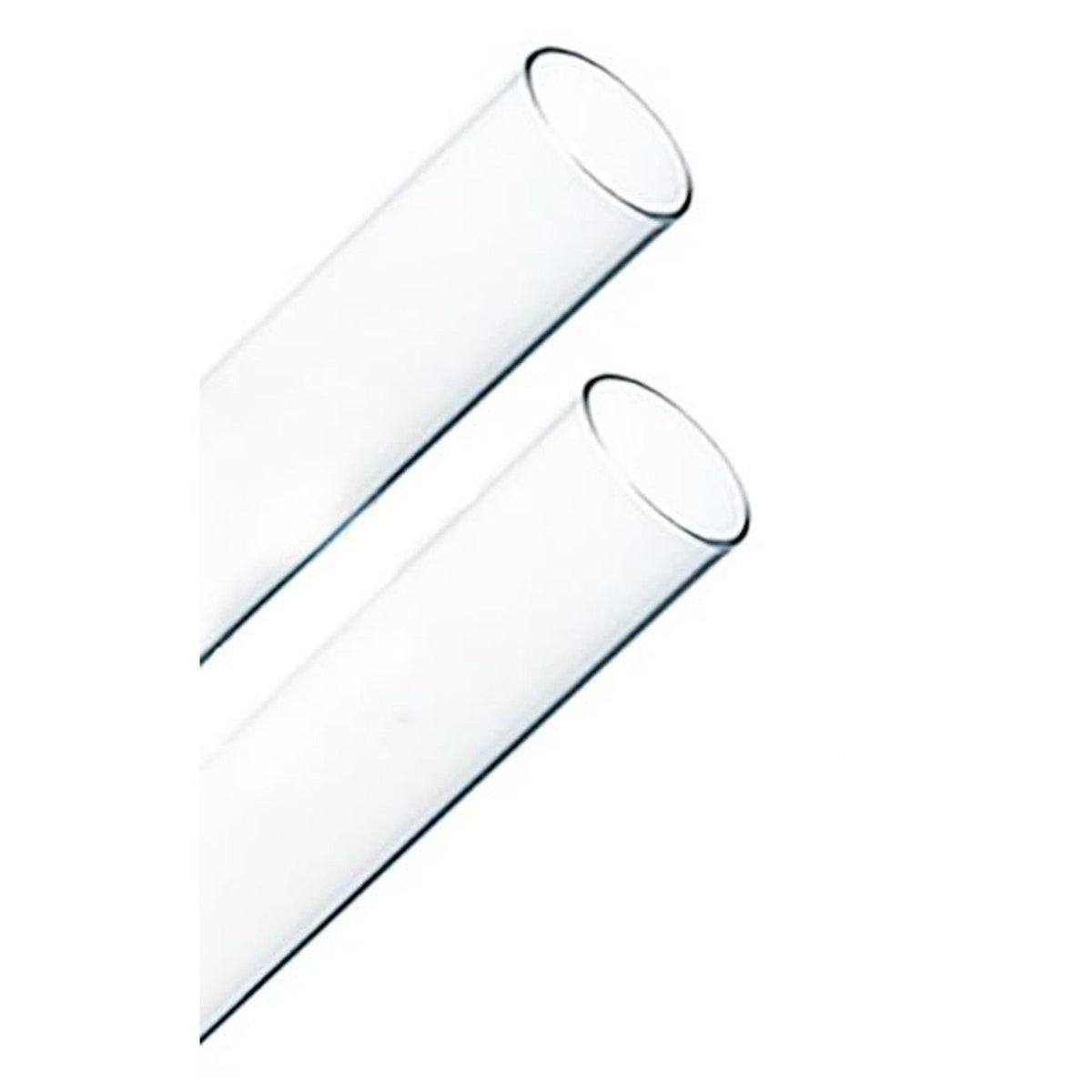

15-0423 Manga de cuarzo UV para sistemas Aquafine CSL y RBE
15-0423 Manga de cuarzo UV para sistemas Aquafine CSL y RBE
Subscription Details
Automatic deliveries and charges at your selected frequency. Skip, reschedule, or cancel through your subscription account. View subscription details.
Descripción
La funda de cuarzo evita que la lámpara UV se cortocircuite y mantiene la temperatura de funcionamiento ideal de la lámpara de 104 grados Fahrenheit.
Se recomienda una limpieza periódica ya que la acumulación de minerales dificulta la eficacia de la lámpara.
- Diámetro interior: 22 mm
- Diámetro exterior: 25 mm
- Longitud: 32,75"/832 mm
- Abierto en ambos extremos.
Overall rating: 0.0 / 5 from 0 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Q&A
Q:
Which systems use the 15-0423 quartz sleeve?
A:
The catalog lists: ATS DWS-15, ATS DWS-15C, ATS DWS-25, ATS DWS-30C, ATS DWS-50C, ATS DWS-5C, ATS DWS-8C, ATS DWSW-15, Ideal Horizons IH-10S. Confirm the exact model or part number on your equipment before ordering 15-0423 quartz sleeve.
Q:
What does the 15-0423 quartz sleeve do?
A:
The quartz sleeve isolates the UV lamp from chamber water while allowing UV energy to pass through. The correct sleeve dimensions and open/closed-end design must match the installed chamber.
Q:
When should the quartz sleeve be replaced?
A:
Replace it if cracked, chipped, clouded, etched, or no longer restorable during maintenance. Many sleeves are replaced around every 24 months, subject to the equipment manual and water conditions.
Q:
Can mineral scale be removed from the sleeve?
A:
Light deposits can often be removed with the manufacturer-approved method. Rinse thoroughly and replace the sleeve if clouding or deposits remain.
Q:
Should the sleeve O-rings be inspected?
A:
Yes. Replace seals that are cut, flattened, stretched, or brittle, and use only a light coating of food-grade silicone lubricant if the manual directs it.
Q:
What installation mistakes can damage a quartz sleeve?
A:
Forcing the sleeve, uneven retaining pressure, grit on sealing surfaces, and pinched O-rings can cause cracks or leaks. Shut off water and power, relieve pressure, and handle quartz with clean gloves.
