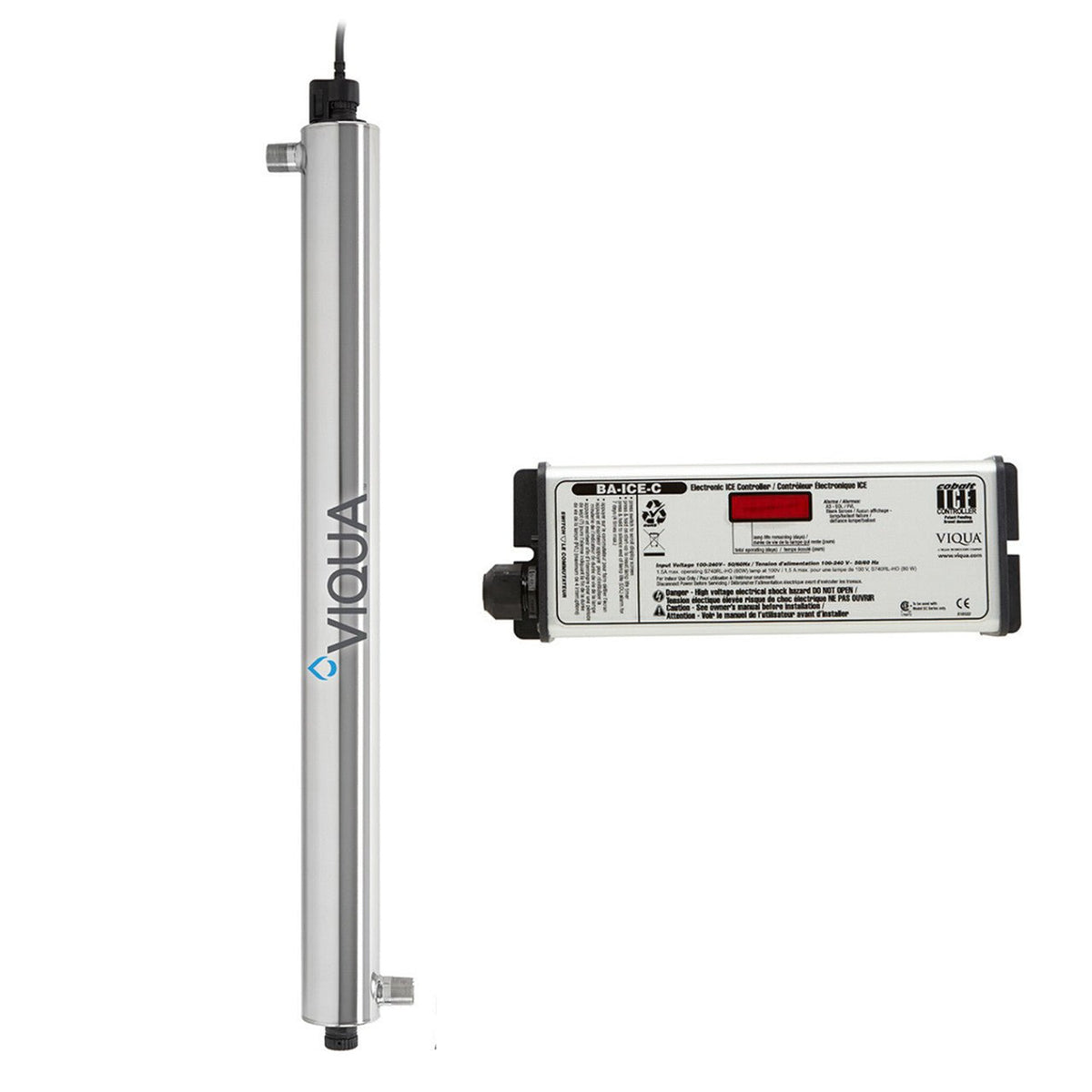

VIQUA VP950 Sistema UV 34 GPM 1.5" MNPT
VIQUA VP950 Sistema UV 34 GPM 1.5" MNPT
Descripción
Los sistemas VIQUA VP950 son unidades de tratamiento UV comerciales de alta eficiencia y alto flujo diseñadas para caudales de 34 GPM. Son sistemas fiables y bien construidos que incluyen una garantía limitada en todos los componentes. Capaces de funcionar con 100-240 V, 50-60 Hz.
Para solicitar los tipos de enchufe eléctrico internacional "F" (Europa), "G" (Reino Unido) e "I" (Australia) se incluyan con su sistema sin cargo, por favor envíe un correo electrónico a atención al cliente, después de realizar su pedido.
- Caudal: 34 galones por minuto
- Aplicación: Punto de entrada
- Alimentación: 100-240V 50-60Hz 95W Enchufe americano
- Dimensiones totales: 45" x 3,5"
- Dimensiones de entrada: 1,5" MPT
- Dimensiones de salida: 1,5" MPT
Replacements & Add Ons
Helpful Info & Downloads
Q:
What flow rate is the VIQUA VP950 designed for?
A:
It is rated for up to 34 GPM under the manufacturer’s specified conditions. Size the system to peak simultaneous flow, not average daily use.
Q:
What plumbing and power does it require?
A:
It uses 1.5-inch male NPT connections and operates from 100–240 V, 50–60 Hz power unless the selected configuration states otherwise. Confirm bypass, drainage, and service clearance.
Q:
Does the VIQUA VP950 include UV output monitoring?
A:
No. The standard VP950 does not include the M-model UV sensor.
Q:

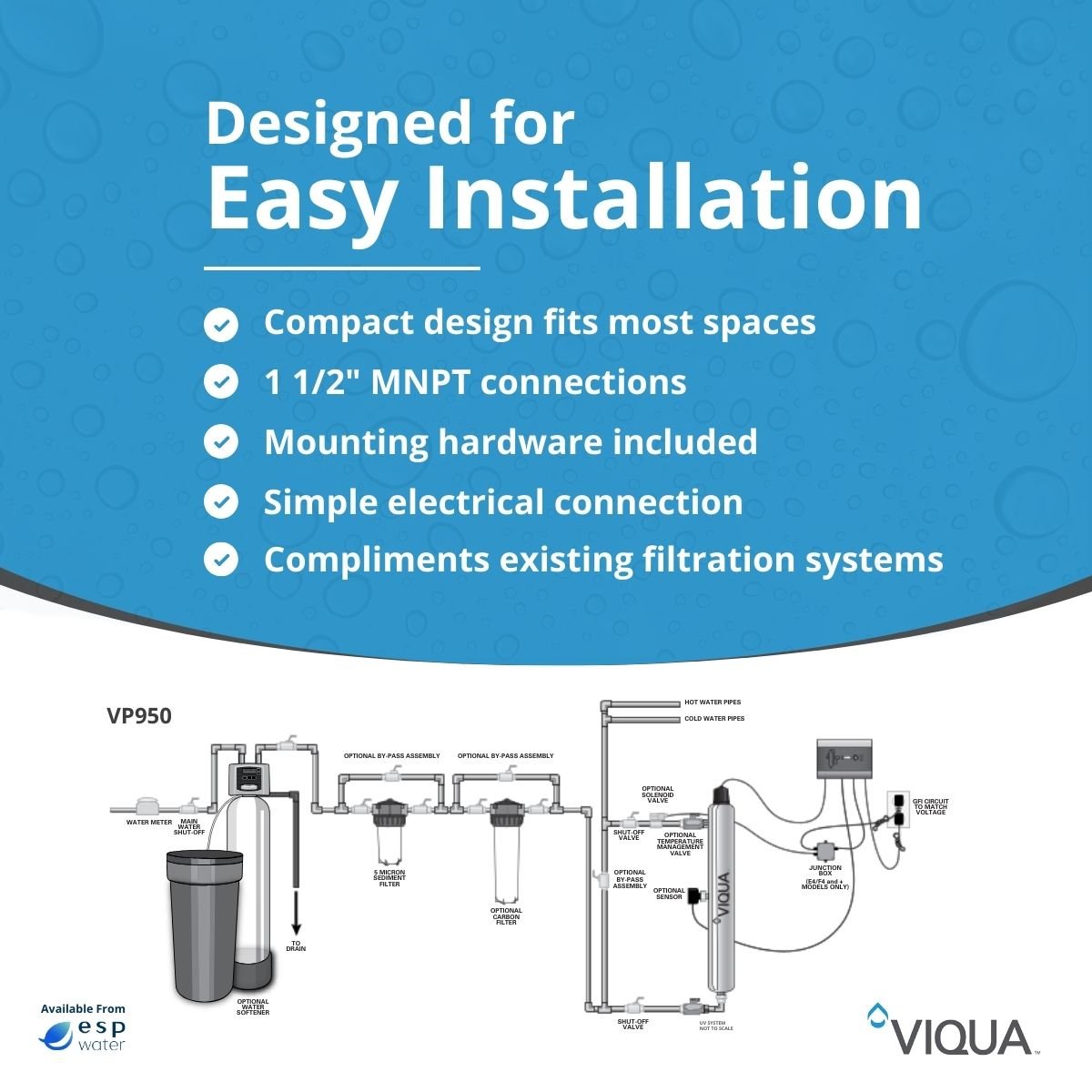

Where should the system be installed?
A:
Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and any other upstream treatment needed to keep water conditions within specification.
Q:
What routine maintenance is required?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Respond to controller alarms rather than relying on visible lamp glow.
Q:
Which service parts should I plan for?
A:
Plan for the S950RL-HO lamp, QSO-950 sleeve or QL-950 kit, seals, and controller service parts.
