Lámpara UV ultravioleta de repuesto G48T5L 05-1334-R
Lámpara UV ultravioleta de repuesto G48T5L 05-1334-R
Subscription Details
Automatic deliveries and charges at your selected frequency. Skip, reschedule, or cancel through your subscription account. View subscription details.
Descripción

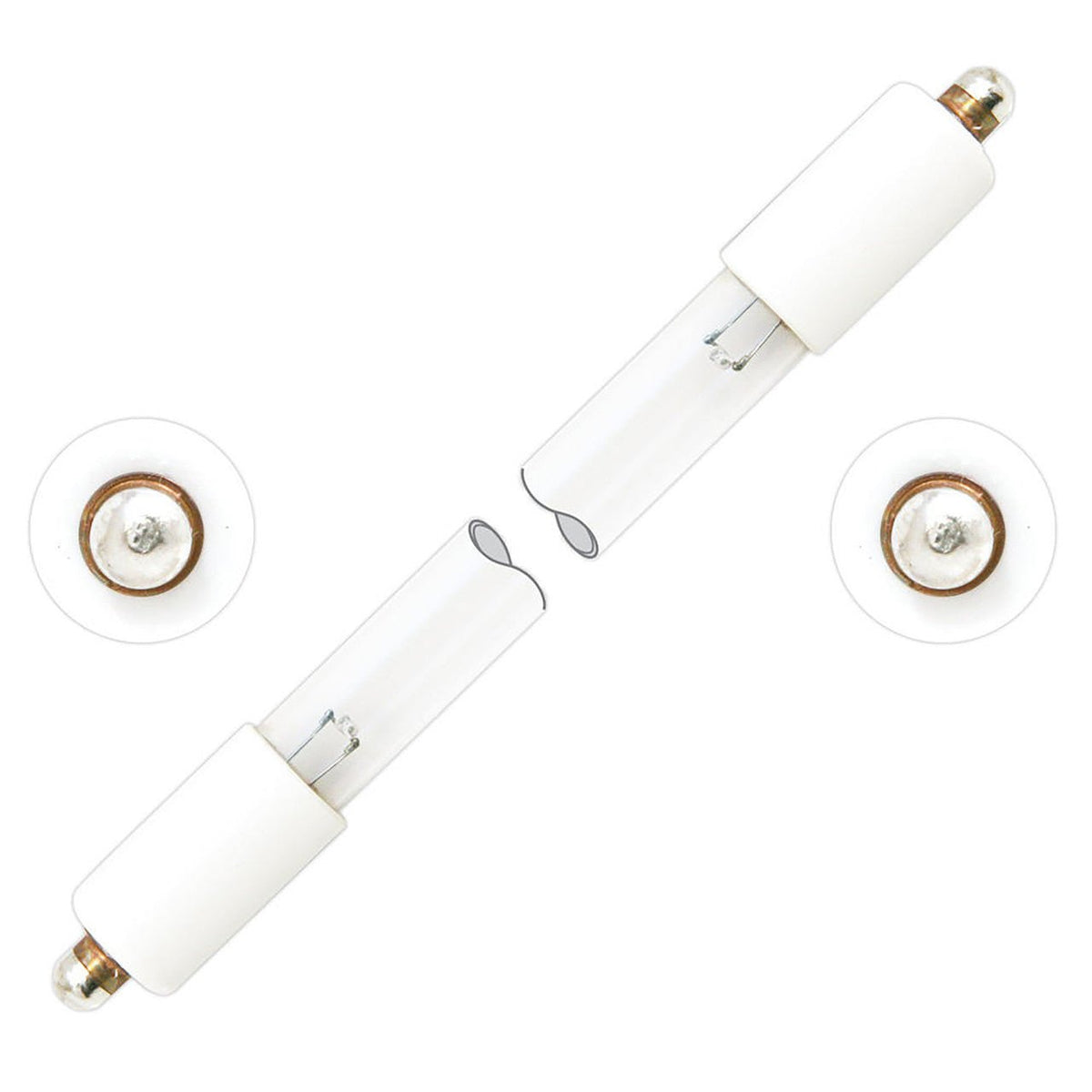

La lámpara de repuesto UV Atlantic Ultraviolet G48T5L es una lámpara de repuesto para los sistemas Atlantic Ultraviolet MightyPure MP49C y Sanitron S50B y S50C; así como una lámpara de repuesto genérica para muchos otros sistemas UV. La G48T5L es una lámpara de un solo pin y doble extremo (B1) que mide 45 pulgadas de largo (1148 mm). La lámpara funciona a 55 vatios con un diámetro exterior de cuarzo de 15 mm. Reemplace esta lámpara UV cada 12 meses o 10,000 horas para mantener la eficacia adecuada del sistema.
- 1 lámpara B1 de doble extremo de un solo pin
- 55 vatios
- Longitud: 45"/1148mm
- Reemplace cada 12 meses
Q:
Which systems use the G48T5L / 05-1334-R?
A:
The catalog lists: G48T5L, Mighty Pure MP49C, Sanitron S50B, Sanitron S50C. Confirm the exact model and part number on your equipment before ordering G48T5L / 05-1334-R.
Q:
How often should the G48T5L / 05-1334-R be replaced?
A:
Replace it every 12 months, even if it still lights. Visible light does not show whether UV output remains at the designed level.
Q:
Does this listing include a quartz sleeve?
A:
No. This is the replacement lamp only unless the package contents explicitly say otherwise. Inspect the sleeve and seals during lamp service.
Q:
What should I do before changing the lamp?
A:
Turn off power, shut off water if the chamber will be opened, relieve pressure, and allow the lamp to cool. Handle the new lamp with clean gloves.
Q:
Why must the exact lamp part number match?
A:
Lamp length, base, wattage, and output must match the controller and chamber. This lamp is approximately 45 inches long, 55 watts, 15 mm in diameter, and uses a single-pin double-ended base.
Q:
What should I check after installation?
A:
Confirm connector alignment, controller operation, lamp-life reset, sleeve condition, and leak-free seals before returning the system to normal operation.
