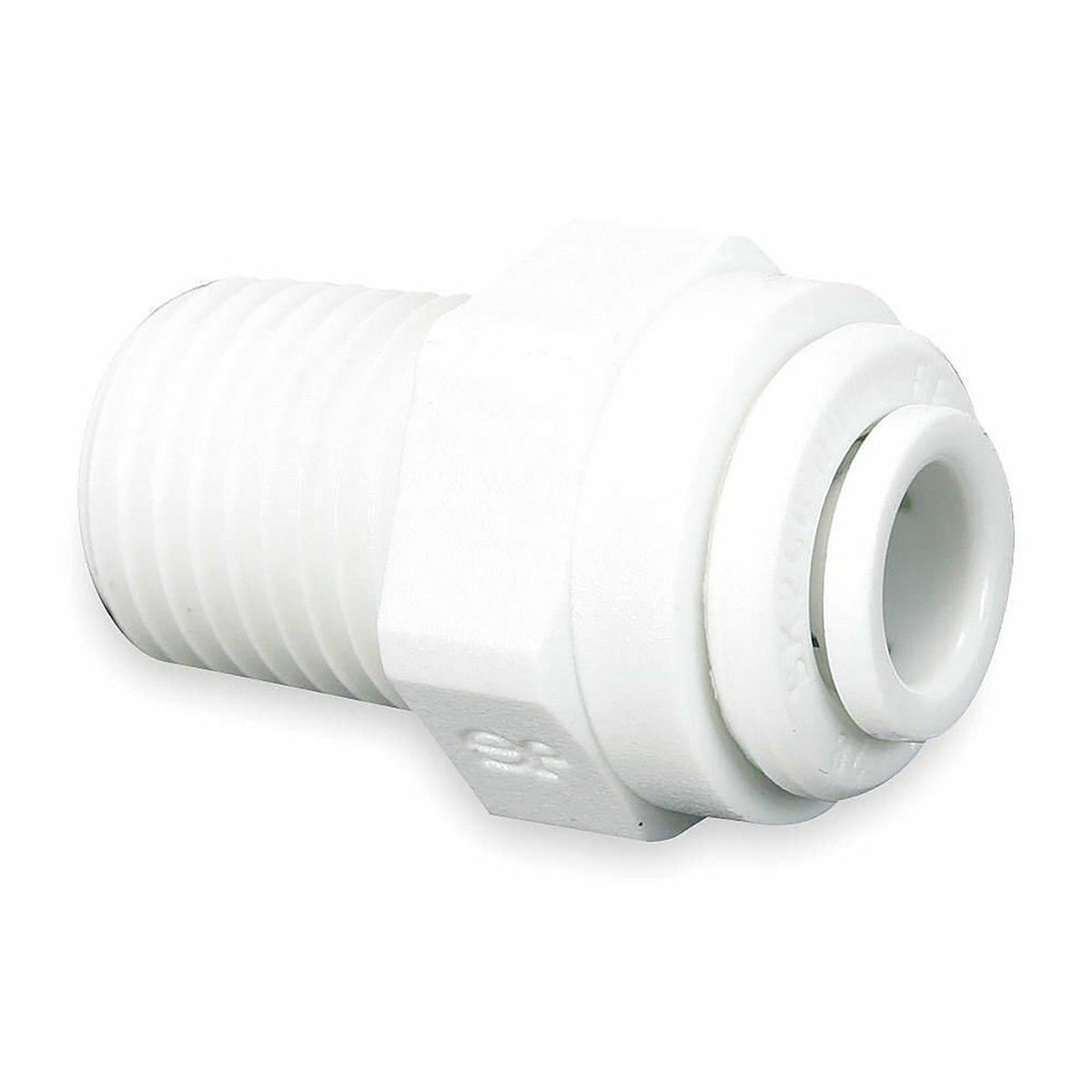

John Guest CI010822W Conector 1/4" QC x rosca macho de 1/4"
Q&As
John Guest CI010822W Conector 1/4" QC x rosca macho de 1/4"
Q&As
Part Number:
CI010822W
El conector rápido permite una fácil conexión entre tuberías de 1/4 de pulgada y puertos roscados macho de 1/4 de pulgada.
Read More
IN STOCK
Descripción
Estos racores John Guest se diseñaron para la industria del agua, pero también pueden utilizarse en otras aplicaciones de líquidos potables. Las conexiones hacen que este adaptador recto sea rápido y sencillo de instalar. Consulte las instrucciones sobre cómo conectar y desconectar los racores y conectores John Guest.
Specs
- Conexiones: Conexión rápida de 1/4" x MPT de 1/4"
- Hecho de materiales que cumplen con la FDA
- No apto para aplicaciones de aire comprimido o vacío.
Features
Customer Reviews
Overall rating: 4.0 / 5 from 4 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
filters
"all worked well, great support finding the right kit, thanks"
Review
"They didn’t fit the cartridge that was sent to me."
Great, Thanks
"Great, Thanks"
Great product
"Great product"
Q&A
Frequently Asked Questions
Q:
What connections are on the John Guest CI010822W?
A:
It is a straight connector with a 1/4-inch quick-connect port and 1/4-inch male threads.
Q:
What tubing fits the quick-connect side?
A:
Use 1/4-inch outside-diameter tubing that is cut square and free of deep scratches.
Q:
How should the male thread be sealed?
A:
Use the thread-sealing method specified for the mating component and avoid overtightening the plastic fitting.
Q:
How far should tubing be inserted?
A:
Push it through the collet until it bottoms against the internal tube stop, then pull back gently to verify engagement.
Q:
Can the tubing be removed and reused?
A:
Yes if depressurized and undamaged. Press the collet evenly, pull the tube straight out, and trim behind any scored section before reuse.
Q:
What should I check after installation?
A:
Restore pressure slowly and inspect both the threaded and quick-connect sides for leaks and side loading.
