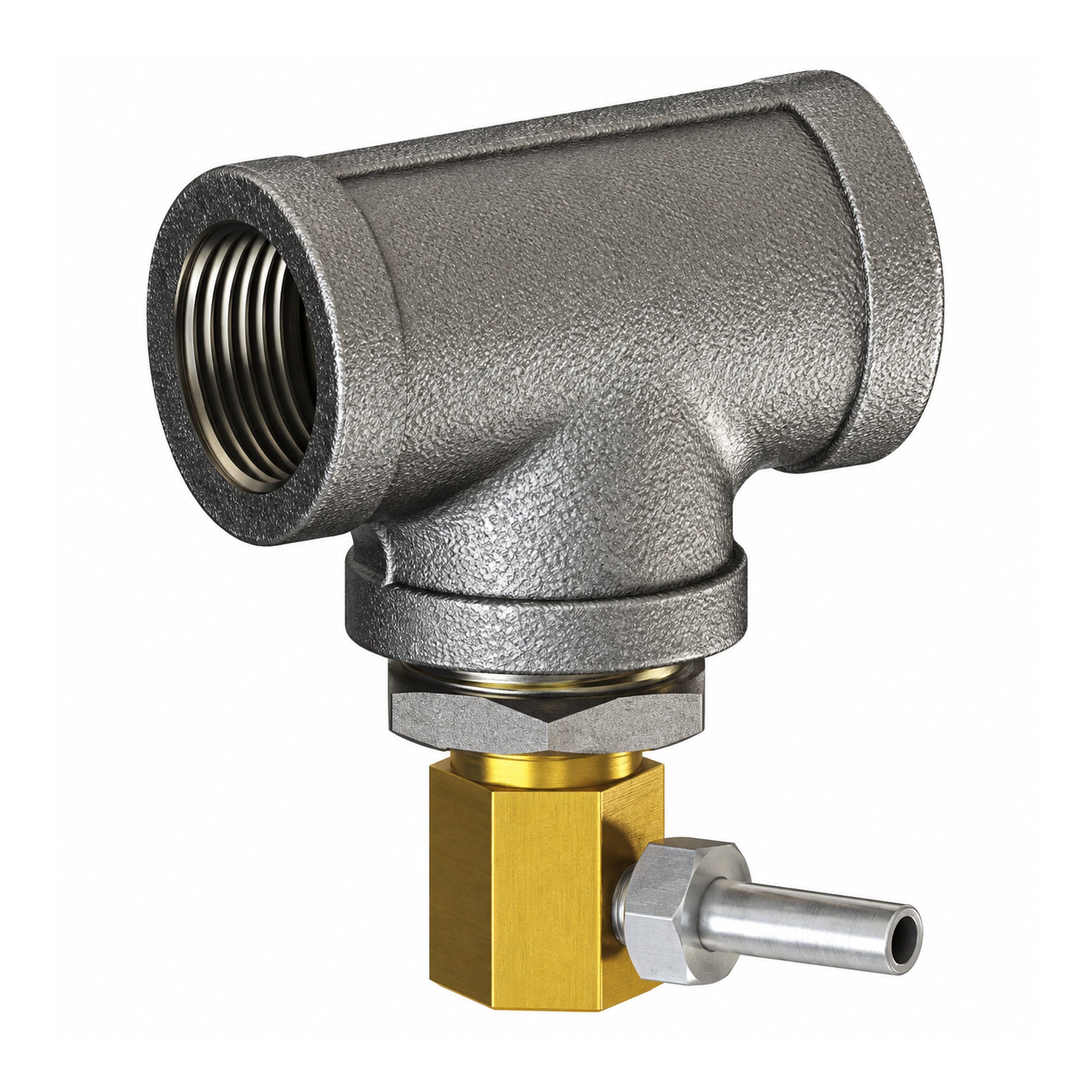

Luminor 130034 Temperature Relief Valve Kit 1-1/2-Inch FNPT

The 130034 is a genuine Luminor temperature relief valve kit with a 1-1/2-inch FNPT connection. The temperature relief valve (TRV) protects a Luminor UV system from overheating during long periods without water flow, when the UV lamp keeps warming the standing water in the chamber. When the water inside the chamber reaches the valve's preset temperature, the valve automatically releases a small amount of water to drain so fresh, cooler water can enter. It works without electrical power and comes complete with 10 feet of drain line.

When to use it

Luminor recommends a temperature management device for installations with extended no-flow periods, such as vacation homes, seasonal properties and low-demand commercial lines, and wherever the temperature of treated water is critical.

Fits these Luminor systems

• LBH4-401
• LBH5-401
• LBH6-401
• LBH6-401A (NSF Class A)
• LBH5-401B (NSF Class B)
• LBH6-401B (NSF Class B)

The 130034 is the largest of Luminor's temperature relief valves (130031 1/2-inch, 130032 3/4-inch, 130033 1-inch, 130034 1-1/2-inch) and matches the 1-1/2-inch connections on 40 GPM BLACKCOMB-HO -401 systems and the 18 GPM NSF Class A LBH6-401A.

Specifications

• Manufacturer part number: 130034
• Connection: 1-1/2-inch FNPT
• Operation: automatic, temperature-actuated, no electrical power required
• Includes: 10 feet of drain line
• Replacement thermistor: Luminor part 310132
• UPC: 880027030088
