Lámpara de repuesto UV Luminor RL-500A para sistemas ultravioleta LR5-355, LR6-355
Lámpara de repuesto UV Luminor RL-500A para sistemas ultravioleta LR5-355, LR6-355
Subscription Details
Automatic deliveries and charges at your selected frequency. Skip, reschedule, or cancel through your subscription account. View subscription details.
Descripción

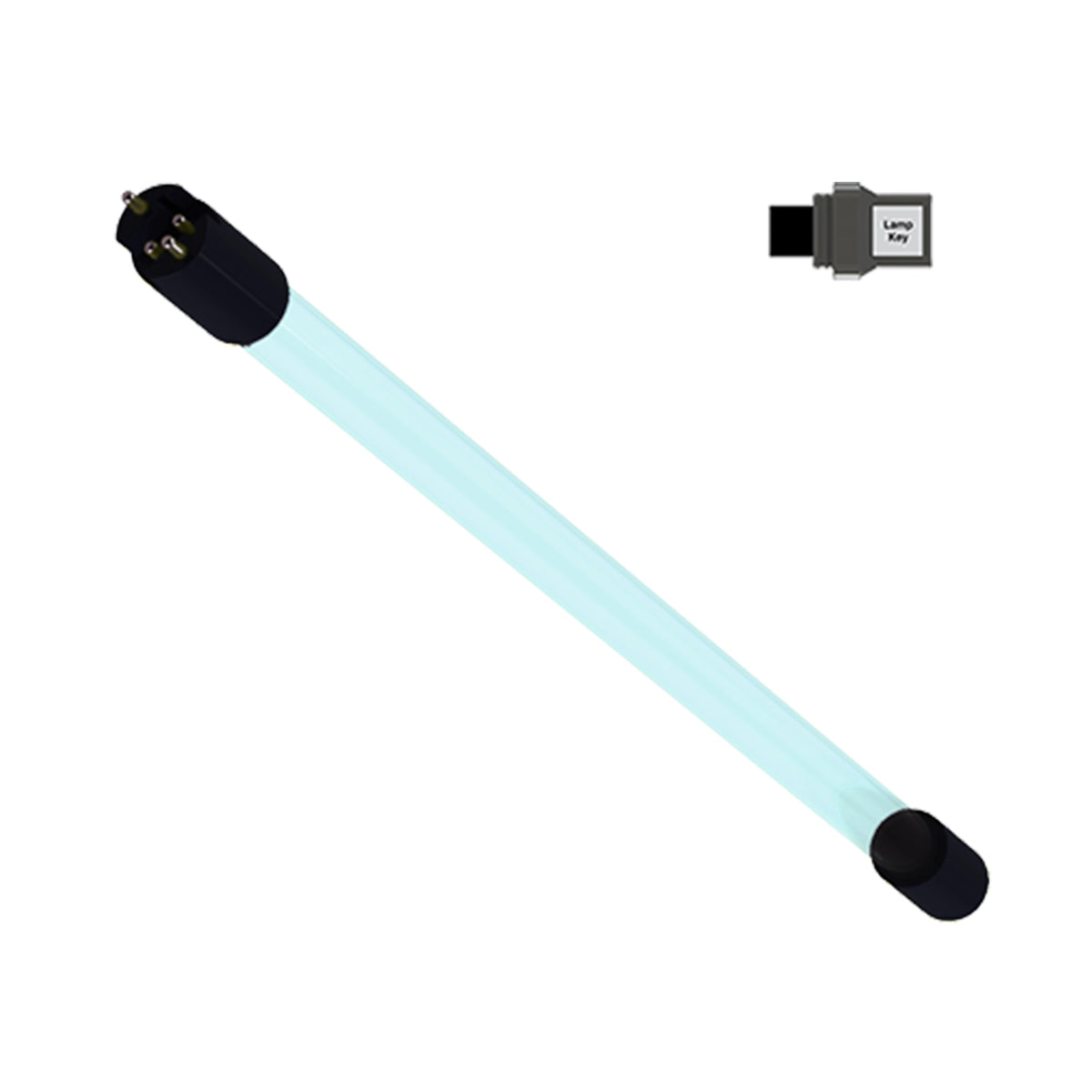

Esta es una lámpara de repuesto y llave Luminor RL-500A genuina para los sistemas de purificación de agua ultravioleta Luminor LR5-355, LR6-355.
La RL-500A es una lámpara LUMINOR auténtica de 15 vatios y tiene una vida útil de 9000 horas. La luz UV-C emitida se debilitará con el tiempo, por lo que una vez que una lámpara alcanza las 9000 horas (o cada 12 meses), es importante reemplazar la bombilla de inmediato.
Por qué es importante usar una lámpara LUMINOR genuina: Los sistemas y lámparas UV de LUMINOR se prueban y certifican como una unidad completa. El uso de lámparas que no son LUMINOR anula todas las certificaciones del sistema UV y puede comprometer su garantía si surge un problema.
Garantía: Protección de garantía de reemplazo completa de un año, sin complicaciones.
- Sustituir cada 12 meses o 12.000 horas de uso.
- Longitud: 500 mm (19,7 pulgadas)
- Potencia: 104 vatios
Helpful Info & Downloads
Q:
How do I know if the RL-500A is the right lamp for my system?
A:
Check the model number on your system's nameplate. The RL-500A fits LR5-355, LR6-355, and their low-UVT "-50" variants. If your model has a "LB" or "LBH" prefix instead of "LR," you have a BLACKCOMB system and need a different lamp.
Q:
What's the difference between a Rainier system and a BLACKCOMB system?
A:
Rainier is Luminor's light commercial and industrial UV line, built for higher flow and heavier duty cycles than the residential BLACKCOMB lineup. The LR5-355 and LR6-355 are rated at 35 GPM, well above what a typical home needs, and are classified by Luminor under its commercial and industrial product category rather than residential.
Q:
What does the "-50" suffix mean on models like LR5-355-50?
A:
It marks a low-UVT crossover configuration, built for source water with reduced UV transmittance. Standard LR5-355 and LR6-355 systems are rated for 30 mJ/cm² at 95% UVT and 35 GPM; the "-50" variants are rated for the same dose at 50% UVT, with flow reduced to 14 GPM to deliver that dose in less clear water. They use the same RL-500A lamp as the standard systems.
Q:
The RQ-500 sleeve page lists "LR5-352, LR6-352" instead of "LR5-355, LR6-355." Is it still the right sleeve for my system?
A:
Yes. The RQ-500 is the quartz sleeve Luminor specifies for the LR5-355 and LR6-355 Rainier systems; the model numbers on that listing refer to the same sleeve part.
Q:
Will a non-Luminor replacement lamp work in my Rainier system?
A:
It may physically fit, but Luminor systems are certified as a complete lamp-and-system unit. A non-Luminor lamp voids that certification and can affect your warranty if an issue comes up.
