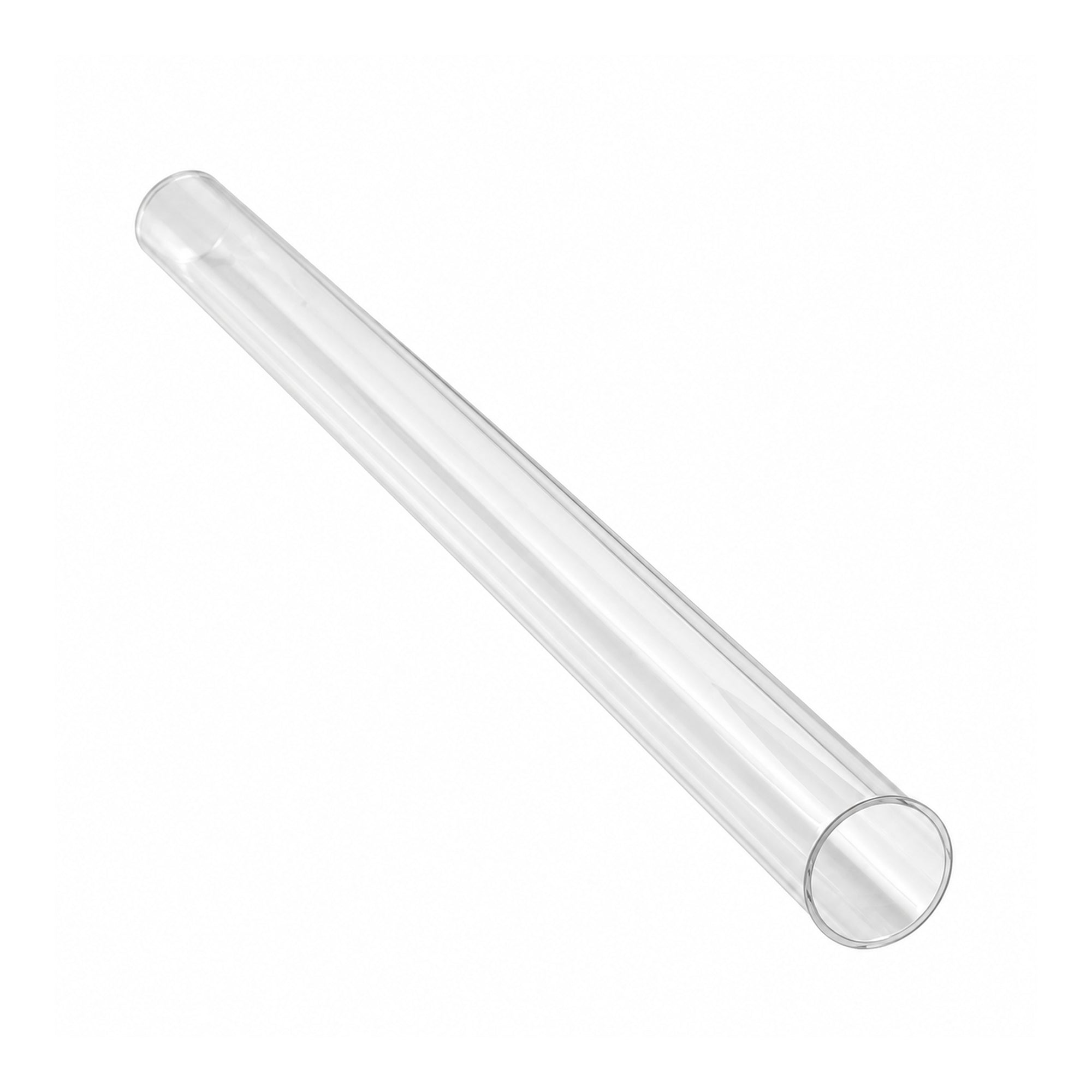

Luminor RQ-843 Replacement Quartz Sleeve for Rainier LR5/LR6-140 UV Systems

The RQ-843 is a genuine Luminor replacement quartz sleeve for LUMINOR RAINIER 140-series light-commercial UV water treatment systems: the RAINIER 5.0 (LR5-140X, non-monitored) and RAINIER 6.0 (LR6-140X, UV-monitored), including the low-UVT (-50) and TOC-reduction (-TOC) versions. The sleeve surrounds the UV lamp inside the stainless steel chamber, keeping the lamp dry while its 254 nm UV output passes into the water. Every 140-series chamber holds two lamps, so each system uses two RQ-843 sleeves.

When to clean or replace the sleeve

Luminor's RAINIER manual calls for cleaning the quartz sleeve at least once a year, and more often when water hardness is near 7 grains per gallon or iron and manganese are present, because scale and mineral deposits block UV light. Clean both sleeves whenever you change the RL-843A lamps, and replace the sleeves every 24 months, or sooner if cracked, etched or still cloudy after cleaning.

Why a genuine Luminor sleeve matters

RAINIER flow ratings, such as 180 GPM at 30 mJ/cm² and 95% UV transmittance for the 140 series, are based on Luminor's matched lamp, sleeve and chamber. The manual directs replacement with the same part number shown on the reactor label, and genuine Luminor quartz sleeves carry Luminor's one-year limited warranty.

Fits these Luminor RAINIER systems

• LR6-1401 and LR6-1405 (RAINIER 6.0, UV-monitored, 180 GPM)
• LR5-1401 and LR5-1405 (RAINIER 5.0, non-monitored, 180 GPM)
• LR6-140X-50 (low-UVT version, 49 GPM at 50% UVT)
• LR5-140X-TOC and LR6-140X-TOC (TOC reduction, 40 GPM at 150 mJ/cm²)
• 140-series systems used on hot water (95 GPM at 75% UVT)

The last digit of a RAINIER model number is the power-plug code (1 = North American 120V, 2 = European CEE 7/7, 3 = British BS 1363, 4 = Australian/NZ AS/NZS 3112, 5 = North American 230V NEMA 6-15). It does not change the sleeve: every LR5-140X and LR6-140X uses the RQ-843. Other RAINIER sizes use different sleeves: RQ-500 for the 35 series, RQ-720 for the 55 and 110 series, and RQ-1000 for the 85 and 175 series.

Specifications

• Manufacturer part number: RQ-843
• Length: 978 mm (38.5 inches)
• Quantity per 140-series system: 2
• UPC: 880027010646

Complete your replacement The RQ-843 is the sleeve only. The matching lamp is the Luminor RL-843A (172 W; replace every 12 months) for standard and low-UVT systems; TOC-reduction systems use the RL-843A-TOC.
