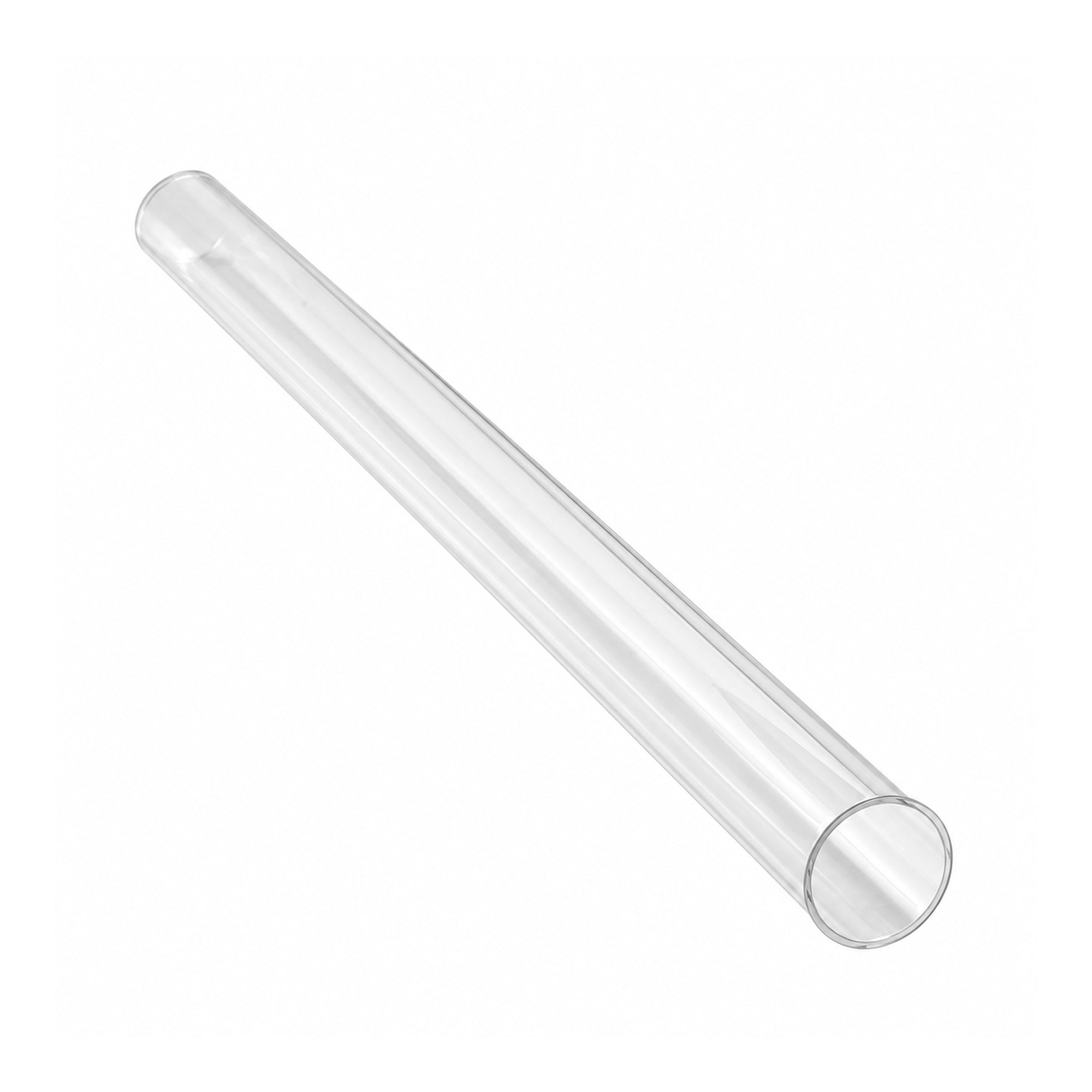

Luminor RQ-K2 Replacement UV Quartz Sleeve for K2 LK5/LK6 UV Systems

The RQ-K2 is a genuine Luminor replacement quartz sleeve for Luminor K2 multi-lamp UV water treatment systems: the K2 LK5 and LK6 series in A22, A42 and A62 sizes, including TOC-reduction models. At 1,200 mm (47.2 in) long, it surrounds each UV lamp inside the stainless steel chamber, keeping the lamp dry while its 254 nm UV output passes into the water. Every lamp has its own sleeve, so order one RQ-K2 per lamp in your system.

When to clean or replace the sleeve

Luminor calls for cleaning the quartz sleeves at least once a year, and more often when hardness approaches 7 grains per gallon or iron and manganese are present, because scale and mineral deposits block UV light. Replace the sleeves every 24 months, or sooner if cracked, etched or still cloudy after cleaning. Luminor water limits for these systems also include chlorine under 4 ppm.

Why a genuine Luminor sleeve matters

Luminor flow ratings are based on the matched RL-1000A lamp, RQ-K2 sleeve and chamber. Luminor directs replacement with the part numbers shown on the reactor label, and genuine Luminor quartz sleeves carry Luminor's one-year limited warranty.

Fits these Luminor systems

• Luminor K2 LK5-A22 and LK6-A22
• Luminor K2 LK5-A42 and LK6-A42
• Luminor K2 LK5-A62 and LK6-A62
• Luminor K2 TOC-reduction models
• Luminor Everest LE5-A42 and LE6-A42 (4 sleeves)
• Luminor Everest LE5-A62 and LE6-A62 (6 sleeves)
• Luminor Everest LE5-A72 and LE6-A72 (7 sleeves)
• Luminor Everest -HW hot-water, -50 low-UVT and -TOC versions of the models above

Check the sleeve part number on your reactor label to confirm. All of the systems above use the RL-1000A lamp (RL-1000A-TOC on TOC models) with the RQ-K2 sleeve.

Specifications

• Manufacturer part number: RQ-K2
• Length: 1,200 mm (47.2 inches)
• Quantity: one sleeve per lamp
• UPC: 880027011643

Complete your replacement The RQ-K2 is the sleeve only. The matching lamp is the Luminor RL-1000A (207 W, 1,000 mm); replace lamps every 12 months. TOC models use the RL-1000A-TOC.
