TP-35 RO Water Storage Pressure Tank
"Easy install under sink."
Tanque de presión de almacenamiento de agua RO TP-35 de 9,2 galones
Q&As
Tanque de presión de almacenamiento de agua RO TP-35 de 9,2 galones
Q&As
Part Number:
TKE-TP35
Alt Part Number:
TP-35
TP35
TK-PRO-10W
El tanque de presión de OI almacena 9.2 galones de agua purificada para sistemas residenciales y comerciales ligeros.
Read More
IN STOCK
Descripción
Los tanques de ósmosis inversa PAE están construidos con materiales aprobados por la FDA y se someten a varias pruebas de calidad de integridad estructural para proporcionar un producto confiable y duradero. Las válvulas de aire de latón selladas incorporadas y las tapas de las válvulas de aire selladas con junta tórica garantizan cámaras de aire sin fugas y eliminan la necesidad de verificar la precarga de aire. Capacidad de retención a 40 psi: 5,5 galones.
Specs
- Volumen total: 9,2 galones
- Capacidad de retención a 40 psi: 5,5 galones

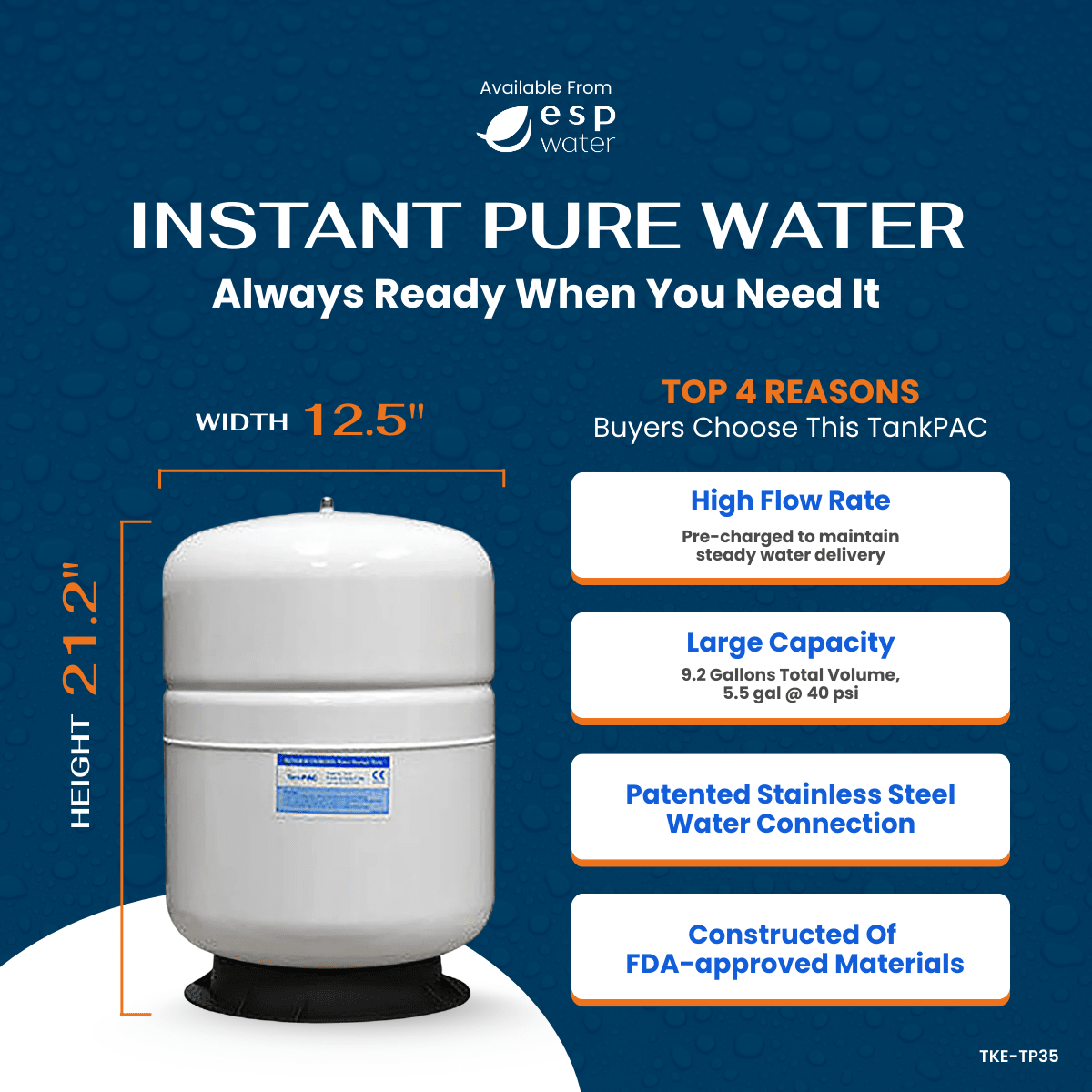

- Dimensiones: 21,2" x 12,5"
- Conexiones: Roscas macho de 1/4"
- Color blanco
Features
Customer Reviews
Overall rating: 4.75 / 5 from 4 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
TP-35 RO Water Storage Pressure Tank
"Easy install under sink."
top-notch
"Extremely well-built unit (in stark contrast to items I'd previously bought online). The manufacturer even called me before-hand to make sure I had enough clearance for my installation. Really really happy with this purchase."
Get has been great so
"Get has been great so far - will know more in a year."
Perfect!
"Just what I needed at a great price."
Q&A
Frequently Asked Questions
Q:
What does the 9.2-gallon rating mean on the TP-35 / TKE-TP35?
A:
It is the tank’s nominal internal volume, not the amount of water delivered at the faucet. Usable drawdown depends on air precharge, RO shutoff pressure, feed pressure, and the system’s operating range. The listing states about 5.5 gallons of holding capacity at 40 psi.
Q:
What connection does the TP-35 / TKE-TP35 use?
A:
It uses a 1/4-inch male threaded connection. Match thread size and type, valve or fitting material, and the system’s required flow before ordering.
Q:
How much installation space is needed?
A:
Allow for the tank body plus the valve, tubing or piping, support, ventilation, and access to the air valve.
Q:
What air pressure should the tank have?
A:
Check precharge with the water side empty and use the tank or RO-system manufacturer’s setting. Do not adjust pressure while the tank contains water.
Q:
Why might the tank deliver less water than expected?
A:
Low feed pressure, incorrect precharge, high shutoff pressure, a restricted membrane or filters, a damaged diaphragm, or an undersized tank can reduce drawdown.
Q:
Can this tank be used with any RO system?
A:
The catalog does not provide an approved model list for TP-35 / TKE-TP35. Match the exact part number, dimensions, connection style, and equipment generation before ordering. Confirm maximum working pressure, connection size, required drawdown, available space, and whether the installation is residential or commercial.
