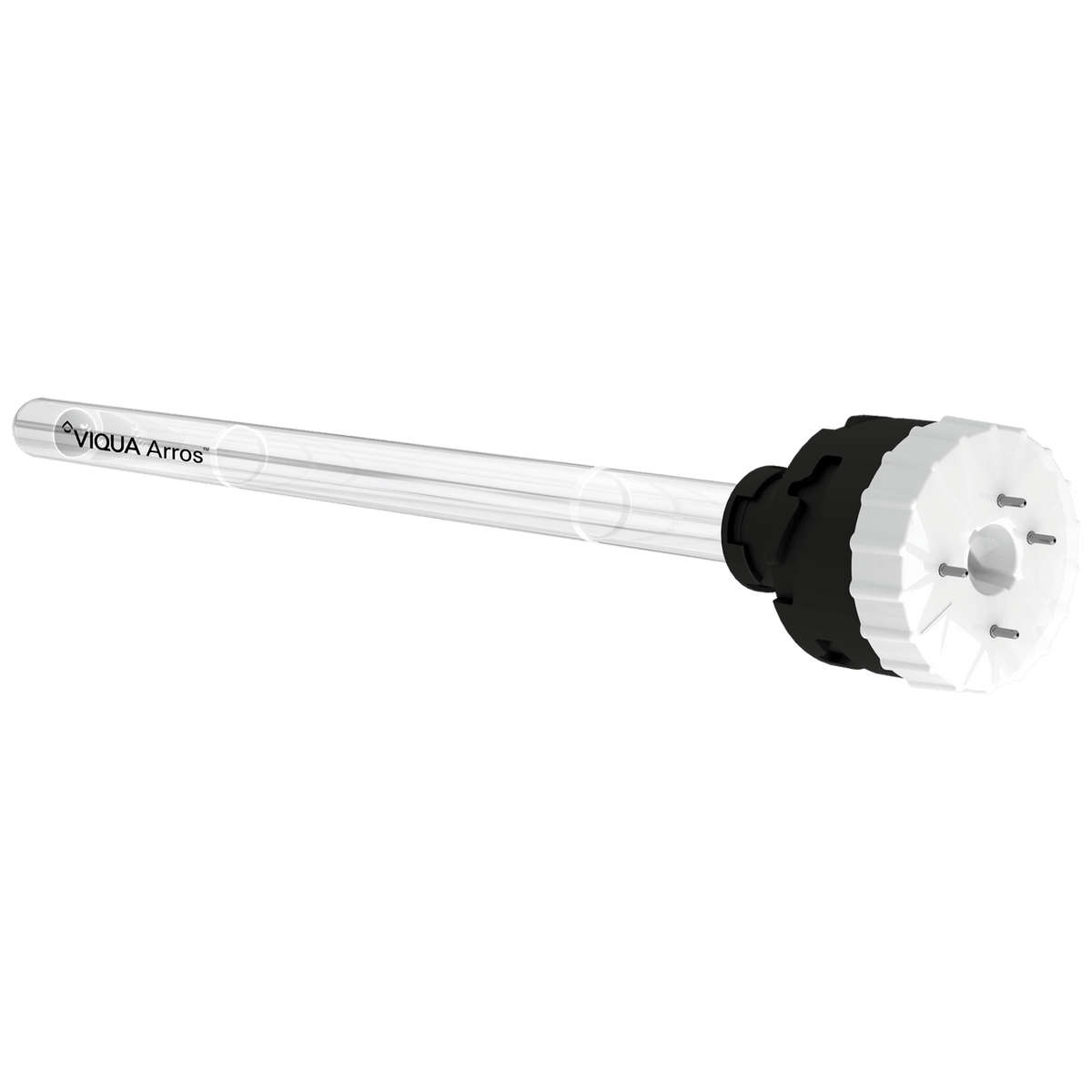

Lámpara UV VIQUA VA22LU con funda integrada para sistema ARROS 22, 22-V, 22-IHS22
Lámpara UV VIQUA VA22LU con funda integrada para sistema ARROS 22, 22-V, 22-IHS22
Part Number:
VA22LU
Combo de repuesto de lámpara UV todo en uno y funda para sistemas Arros 22 y 22-V, con vida útil anual de la lámpara de 9.000 horas.
Read More
IN STOCK
Descripción
La lámpara UV VIQUA VA22LU es el repuesto original de VIQUA para el Sistema UV Arros 22. Esta lámpara tiene una vida útil de 9000 horas y debe reemplazarse cada 12 meses para mantener la eficacia adecuada del sistema. Obtenga más información sobre el sistema UV Viqua Arros.
Innovador diseño de lámpara todo en uno:
- Más simple - Cuenta con lámpara y funda combinadas para una sola conexión.
- Más rápido - Reduce el tiempo de instalación y mantenimiento.
- Más seguro - Garantiza el componente eléctrico adecuado sin necesidad de un arnés de lámpara.
- Un año de garantía

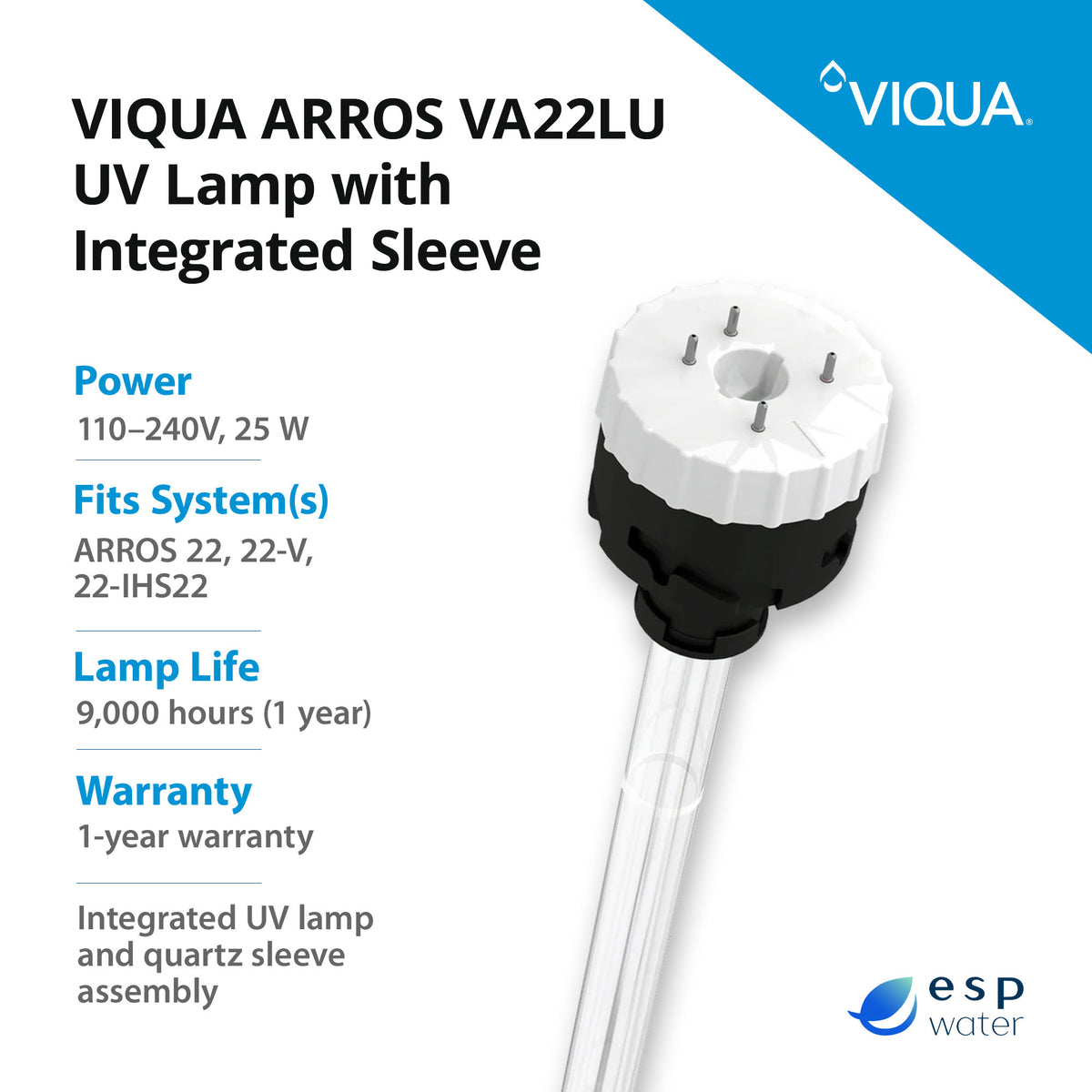

Specs
- Para usar con el sistema VIQUA Arros 22, 22-V, 22-IHS22
- Incluye: 1 lámpara, 1 funda de cuarzo, 1 junta tórica
- Reemplace la lámpara y la funda cada 12 meses
This Item Fits These Select Systems
Overall rating: 5.0 / 5 from 2 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
great products, fair prices
"I have purchased a whole system in the past from ESP. I purchased this replacement UV lamp 1 year later and all of the products they sell have been great along with great service. Highly recommend."
Thank you
"Very knowledgeable and very quick response shipping was great and on time thanks for their help God bless you"
Q&A
- Can I buy a lamp alone without the sleeve? What is that price?
- The lamp for the innovative Arros system includes the sleeve built on. It is one piece and not two separate pieces that would typically be found on traditional UV systems. This makes the lamp and sleeve much simpler to install.
Q:
Which VIQUA systems use the VA22LU lamp unit?
A:
The VA22LU is the integrated replacement lamp unit for compatible ARROS 22 systems, including ARROS 22, 22-V and approved ARROS 22-IHS22 configurations. Verify VA22LU on the existing unit or manual before ordering.
Q:
Does VA22LU include both the lamp and sleeve?
A:
Yes. It combines the UV lamp and quartz sleeve in one service unit and includes the sealing O-ring, reducing the number of separate parts handled during annual maintenance.
Q:
How often should a VIQUA VA22LU be replaced?
A:
Replace it after about 9,000 hours of operation, normally every 12 months. Do not wait for visible lamp failure because effective output declines over the operating year.
Q:
Can I install VA22LU in an ARROS 15 system?
A:
No. ARROS 15 systems use the shorter VA15LU assembly. The VA22LU is sized and rated for compatible ARROS 22 models.
Q:
What precautions should I take during replacement?
A:
Unplug the controller, shut off water, relieve system pressure and allow the chamber to cool. Handle the integrated unit with clean gloves, seat the O-ring correctly and inspect for leaks after water pressure is restored.
Q:
What if the controller alarm continues after installing VA22LU?
A:
Check that the connector is fully locked, the lamp unit is seated correctly and the controller's annual service timer was reset. If the warning remains, disconnect power and follow the ARROS troubleshooting procedure.
