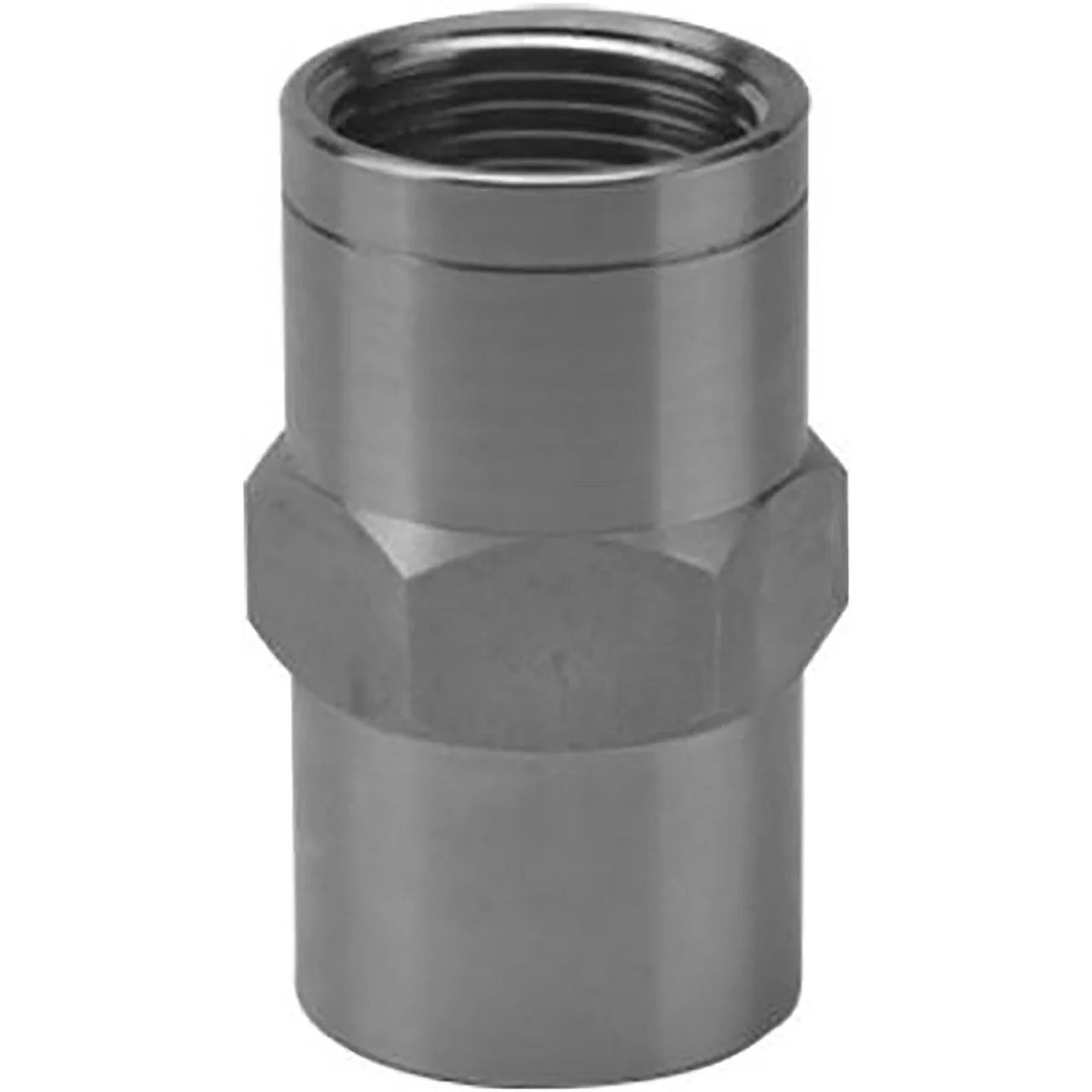

VIQUA FRSS-10 Restrictor de flujo 10 GPM 3/4" x 3/4" FNPT
VIQUA FRSS-10 Restrictor de flujo 10 GPM 3/4" x 3/4" FNPT
Descripción
El limitador de flujo VIQUA FRSS-10 se utiliza con sistemas UV de punto de entrada VIQUA. El limitador de flujo es importante porque ralentiza el caudal de agua entrante, lo que permite que la lámpara UV trate eficazmente toda el agua que pasa a través de la cámara.
- Caudal: 10 galones por minuto
- Conector hembra de 3/4" x 3/4"
- Material: acero inoxidable 304L
Q:
What does the VIQUA FRSS-10 flow restrictor do?
A:
It limits flow to approximately 10 GPM so the matching UV system receives the contact time assumed for that flow rating.
Q:
Which systems use the VIQUA FRSS-10?
A:
The catalog-approved Fits value lists: FRSS-10, S8Q-PA, SC-320. Match the exact system label and part number before ordering VIQUA FRSS-10.
Q:
What connection size does this restrictor use?
A:
It uses 3/4-inch by 3/4-inch female NPT ports. Match pipe size, thread type, flow direction, and service clearance before ordering.
Q:
Will the restrictor increase household water pressure?
A:
No. It intentionally limits maximum flow and creates pressure drop. Confirm the remaining pressure is acceptable at peak demand.
Q:
Where should it be installed?
A:
Install it in the location and orientation specified by the UV-system manual, following any flow arrow. Provide shutoff and service access and use approved thread sealant.
Q:
Can I choose a higher-GPM restrictor to improve faucet flow?
A:
Only if the UV system and required treatment target permit that flow. A restrictor that allows too much water through can reduce the delivered UV dose.
