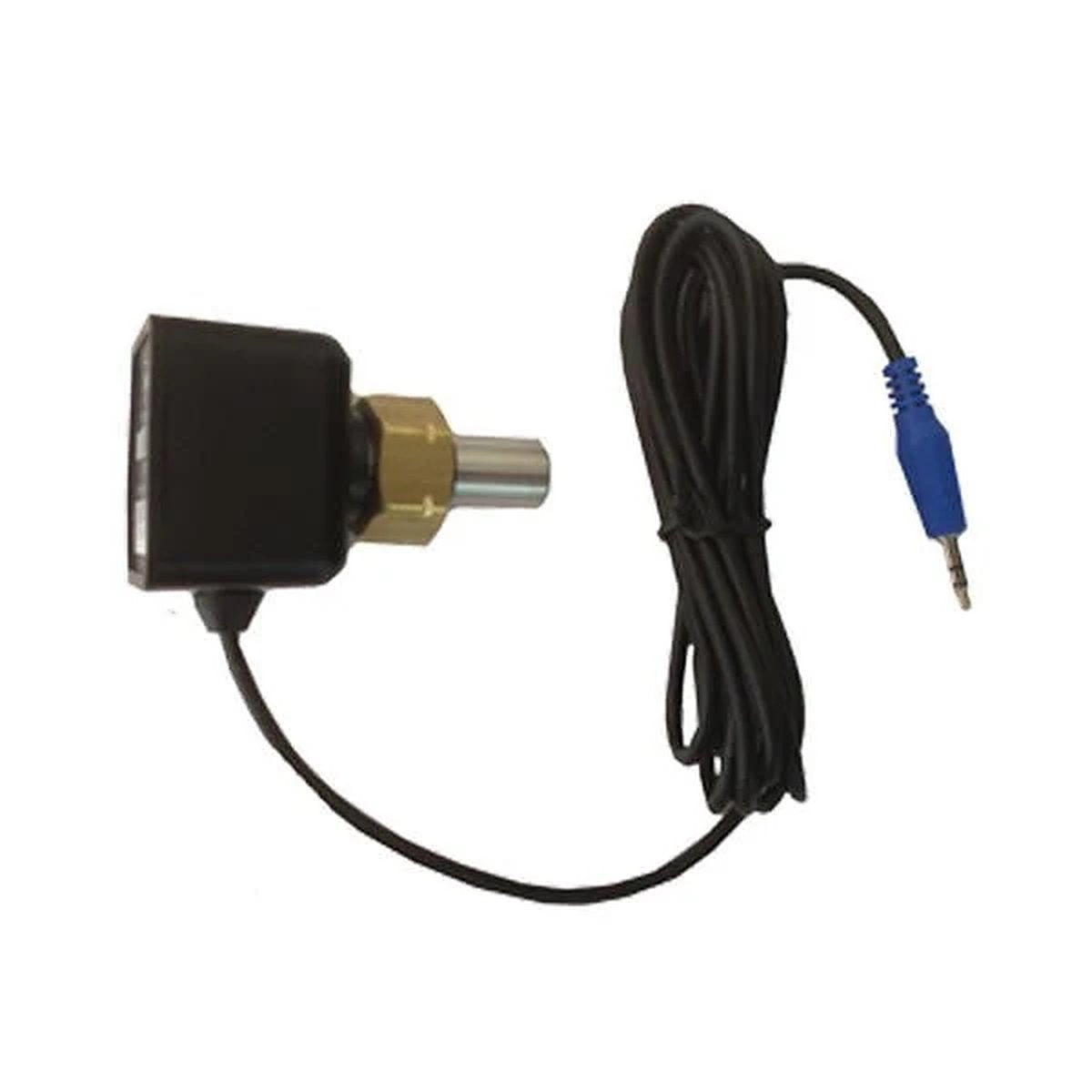

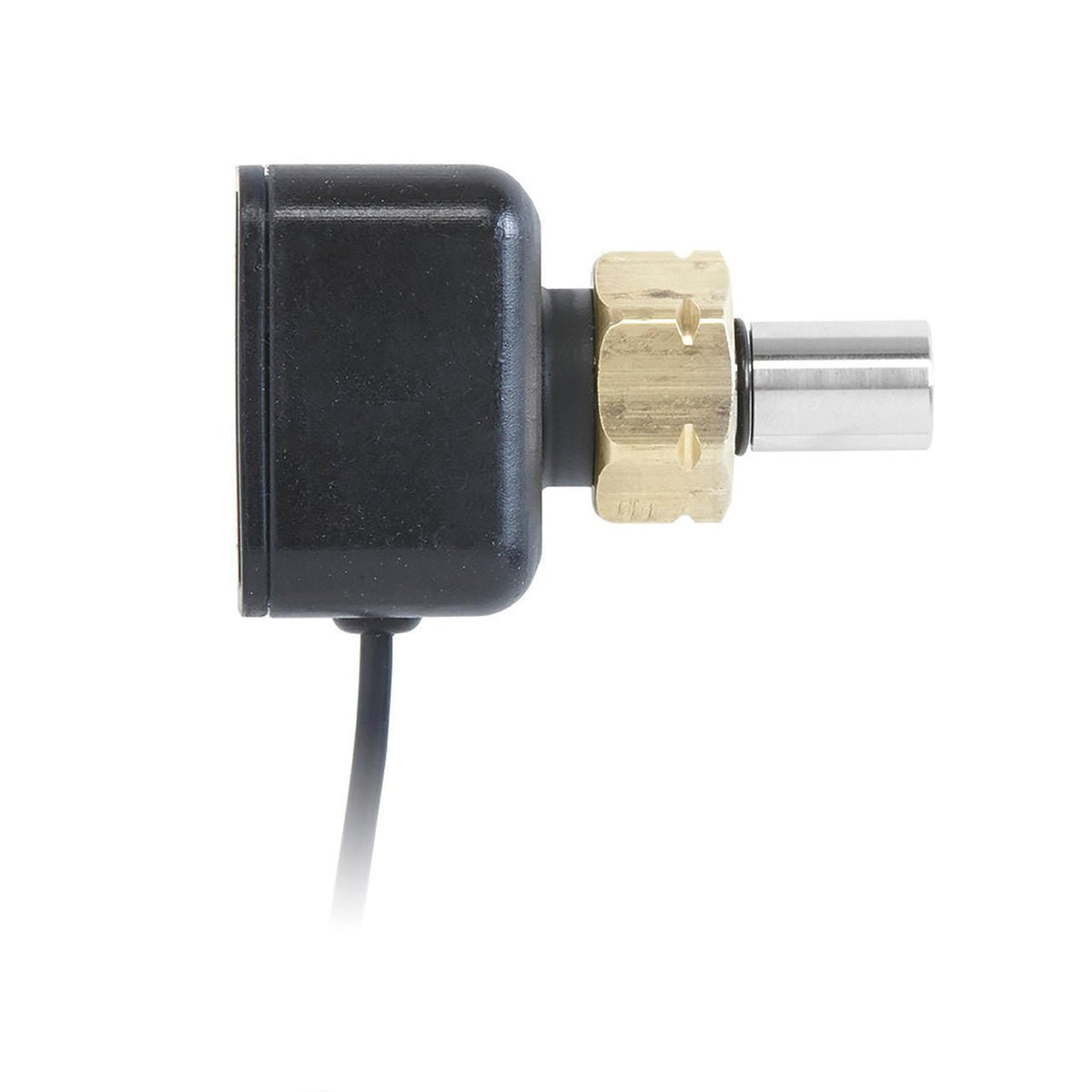

VIQUA 650580 Sensor UV para G, H, J, K, PRO10, PRO20, PRO30
Q&As
VIQUA 650580 Sensor UV para G, H, J, K, PRO10, PRO20, PRO30
Q&As
Part Number:
650580
Alt Part Number:
602899
El sensor UV monitorea la salida de la lámpara para asegurar un rendimiento adecuado de desinfección ultravioleta en los sistemas VIQUA.
Read More
IN STOCK
Descripción
Sensor UV VIQUA 650580 genuino diseñado para sistemas G, H, J, K, PRO10, PRO20 y PRO30. Monitorea la salida de la lámpara UV y el estado del sistema para asegurar un funcionamiento adecuado. El reemplazo directo de OEM garantiza una monitorización precisa y una compatibilidad total con el sistema.
El sensor UV VIQUA 650580 está diseñado para sistemas comerciales y residenciales VIQUA seleccionados. Mide la salida de la lámpara ultravioleta y se comunica con el controlador para confirmar el funcionamiento adecuado. Este sensor ayuda a los operadores a identificar el rendimiento decreciente de la lámpara, apoya la planificación del mantenimiento y garantiza que el sistema continúe funcionando dentro de las especificaciones del fabricante.
Specs
- Comparable con TROJAN-UV-MAX-650580
- Controla con precisión la exposición a los rayos ultravioleta
- Monitorea cuándo es el momento de reemplazar la lámpara UV
Features
This Item Fits These Select Systems
Overall rating: 4.125 / 5 from 8 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["shipping","communication"].
Review highlights
Reviews
Little Sensor, Lotsa $$$
"I finally bit the bullet, got tired of turning off the beep beep alarm and ordered a new sensor for my water filter system…. and voila! the alarm quit beeping! It cost $500 but the new sensor was worth it!"
Quick repalcements!
"obtained UV sensor and bulb fast without issue"
Great Company to Deal With
"Great communication and shipping was fast - thank you."
No more reliable than old style
"I can't even count how many of these I've had to replace, young ones. Really hoped the newer style would last, but failed again in less than 2 years. And these things aren't cheap. Need to find a whole new filter system, as this is an expensive weak point in the design."
New style no more reliable
"These things are expensive, but don't last long. Replacing it again, hoped this newer style would be an improvement. But died again in less than 2 years. Huge weakness in this filter's design."
great transaction
"great transaction"
UV sensor replacement
"Correct sensor, perfect fit, no problems for Viqua Pro 10 UV light chamber."
Excellent service
"A perfect transaction; professionally handled."
Q&A
Q:
What does the VIQUA 650580 sensor monitor?
A:
It monitors UV intensity in compatible VIQUA systems so the controller can report operating conditions.
Q:
Which systems use the 650580 sensor?
A:
The catalog lists these compatible parts or systems: PRO10, PRO20, PRO30, UVMAX PRO10, UVMAX PRO20, UVMAX PRO30, UVMAX PRO50, UVMax G Plus, UVMax H Plus, UVMax J Plus, UVMax K Plus, H+ (650652), K+ (660002-R), PRO10 (650647), PRO20 (650653), PRO24-100 (660095-R), PRO24-186 (660086-R), PRO30 (650659), PRO50 (660003-R). Confirm the exact model number on your equipment before ordering VIQUA 650580 sensor.
Q:
Is this sensor the same as a UV lamp?
A:
No. The sensor measures system output; it does not generate UV energy and does not replace the annual lamp service part.
Q:
Can sleeve buildup cause a low sensor reading?
A:
Yes. Mineral film on the sleeve or sensor window, lamp age, water conditions, or component alignment can affect the reading. Follow the manual before assuming the sensor failed.
Q:
What should be inspected before replacing the sensor?
A:
Check lamp age, sleeve condition, sensor window, cable and connector seating, controller messages, and the approved troubleshooting sequence.
Q:
Why should the exact 650580 part number be used?
A:
Sensor calibration and electrical connections are system-specific; a visually similar sensor may not provide the correct signal or fit.
