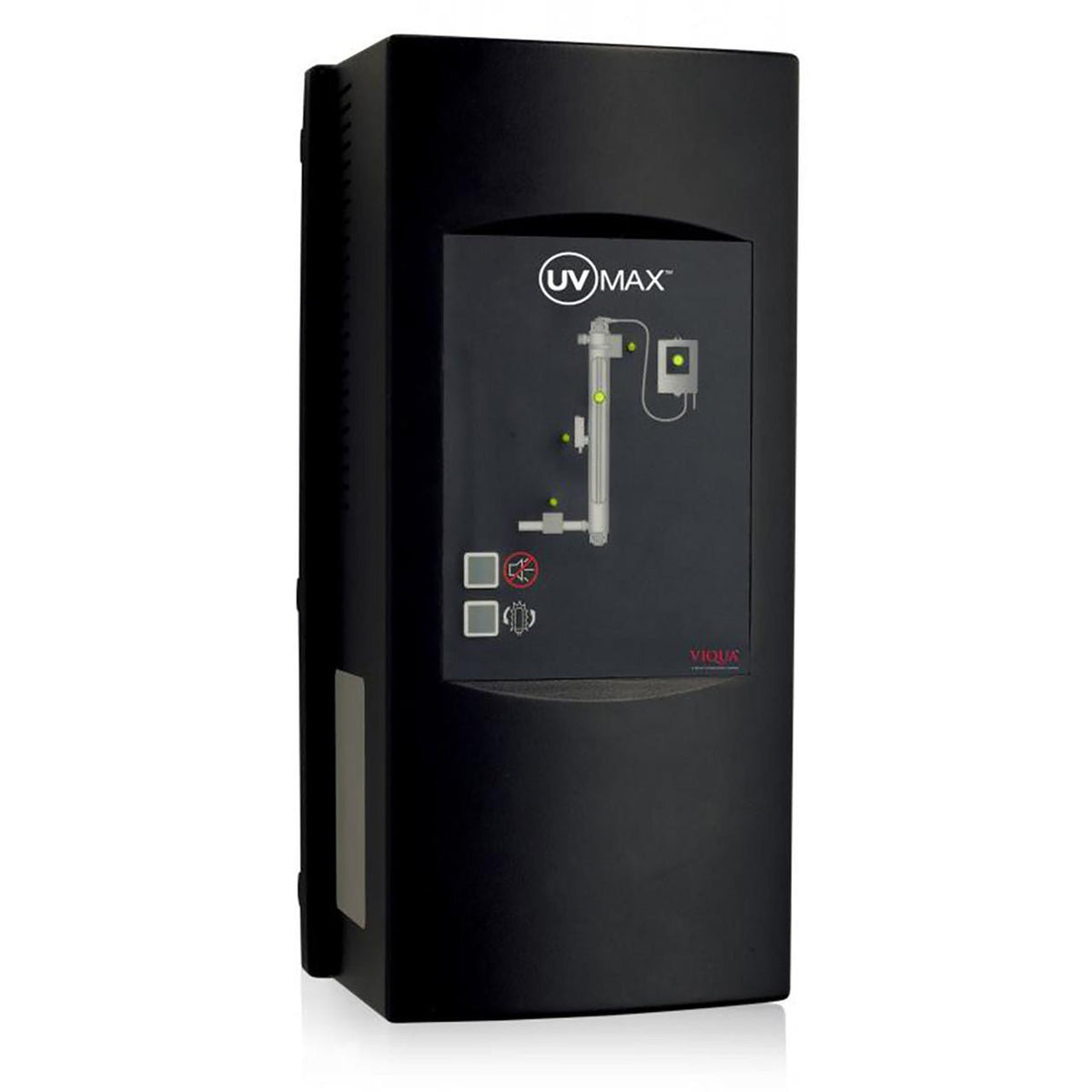

VIQUA 650709-005 Kit de controlador UV para sistema H+ 100-240V
VIQUA 650709-005 Kit de controlador UV para sistema H+ 100-240V
Descripción

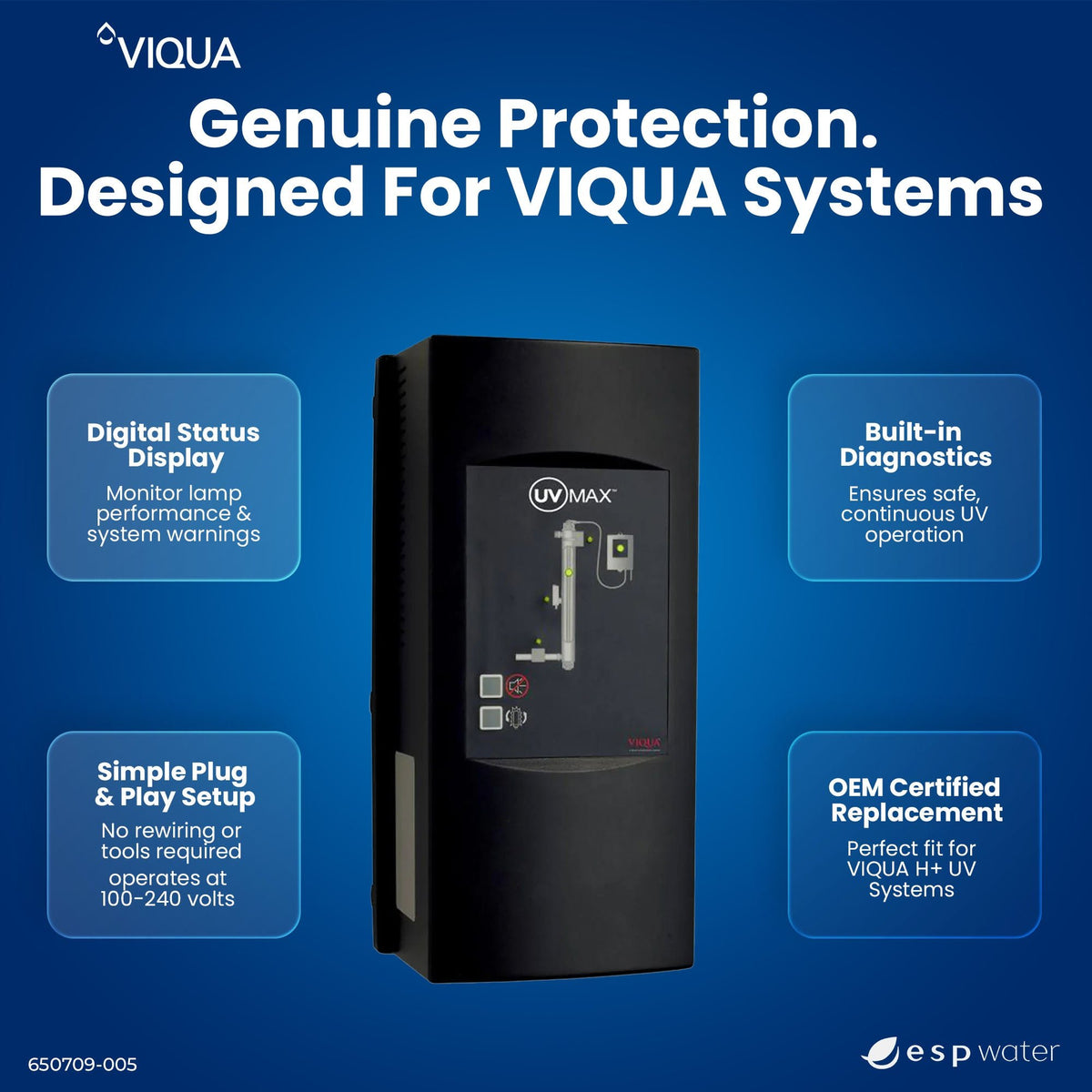

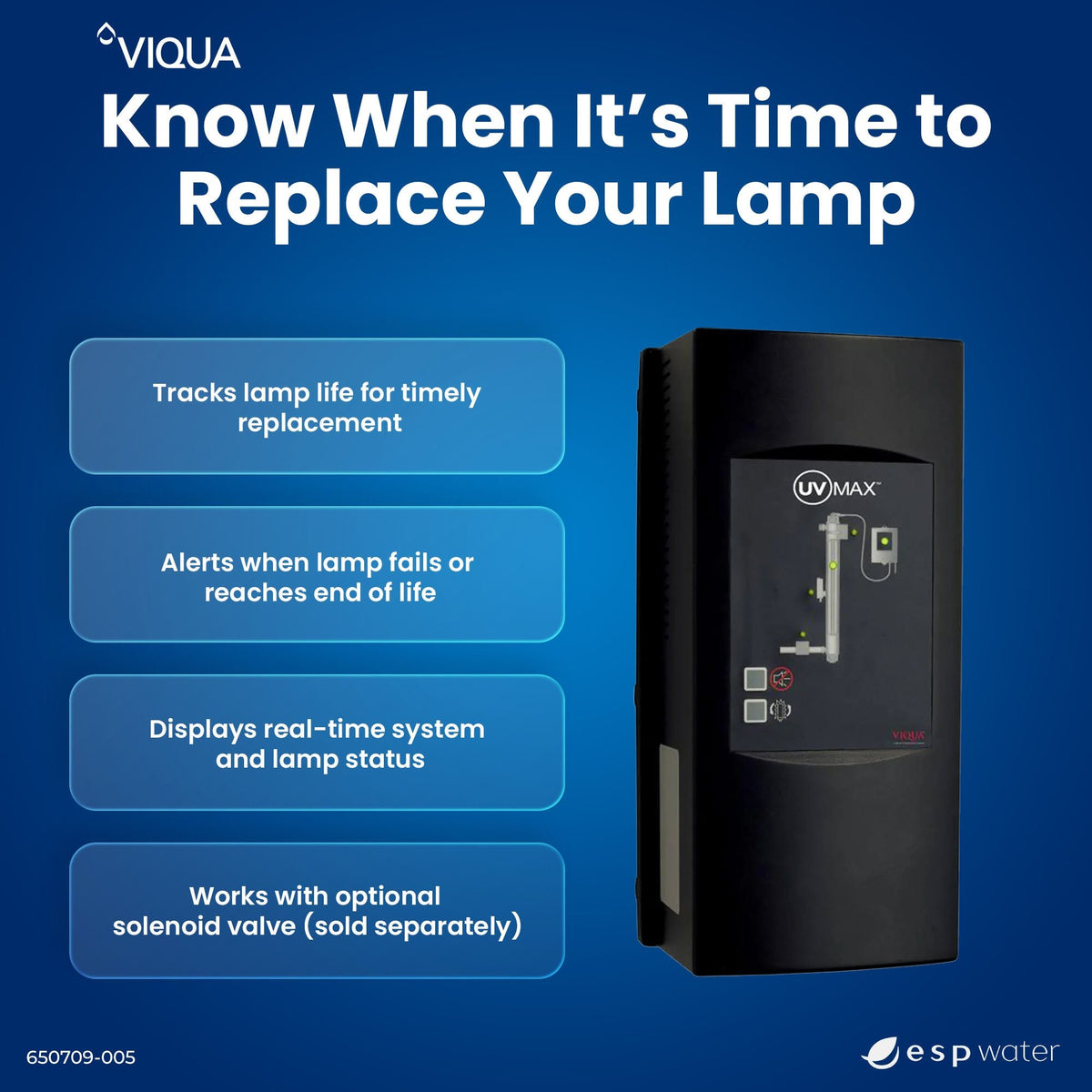

Kit de reemplazo de fuente de alimentación para sistemas modelo VIQUA H+. Este es un transformador que suministra el voltaje correcto a su sistema y lo mantiene informado al monitorear la edad de la lámpara. Accesorios como la alarma audible y las válvulas solenoides son monitoreados y controlados por esta fuente de alimentación.

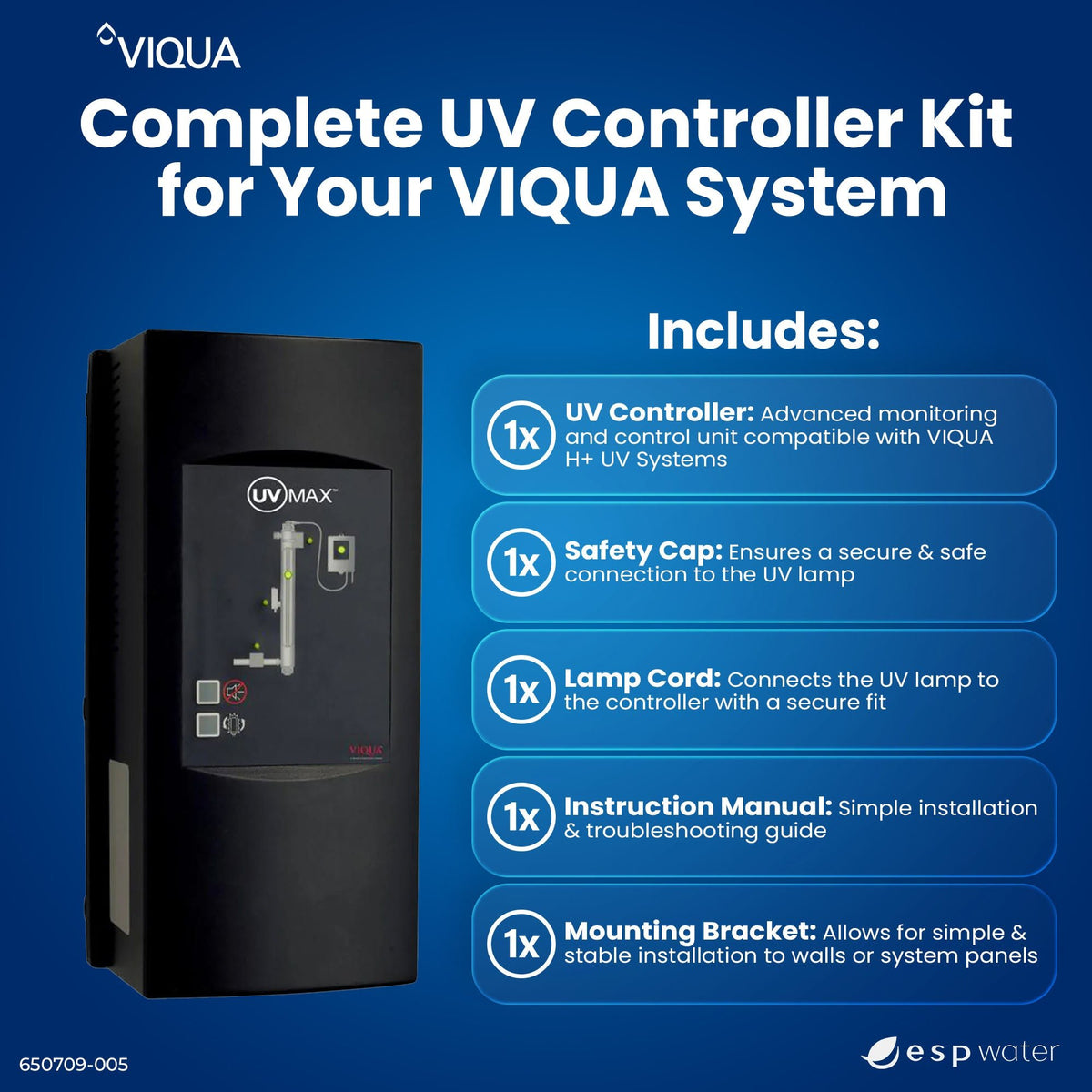

- Incluye arnés de lámpara, pieza n.° 650711-001
- Indicador de lectura del sensor
- Funciona a 100-240 voltios
Q:
Which systems use the VIQUA 650709-005?
A:
The catalog-approved Fits value lists: UVMax H Plus. Match the exact system label and part number before ordering VIQUA 650709-005.
Q:
What input power does the VIQUA 650709-005 accept?
A:
It accepts 100–240 volts. Confirm the plug or cord set and local electrical requirements before ordering.
Q:
What functions does this controller manage?
A:
It supplies lamp power and manages the functions required by the catalog-listed H+ controller generation, including its compatible monitoring connections.
Q:
Is this controller compatible with every production year?
A:
No. Controller generations and connectors can change. For the 650709 series, the product listing identifies systems made in 2009 or later; verify the controller label and system serial information.
Q:
Are a UV lamp and sleeve included?
A:
No. This is a controller or power-supply kit. Lamp, sleeve, sensor, fan, and valve parts are separate unless explicitly listed in the box.
Q:
What should I do after installing the controller?
A:
Verify every color-coded or keyed connector, restore power, set or reset the lamp timer, confirm normal display and alarms, and test connected fan, sensor, or valve functions that apply.
