VIQUA 660001-RK Sistema UV 80 GPM 2" MNPT
VIQUA 660001-RK Sistema UV 80 GPM 2" MNPT
Descripción

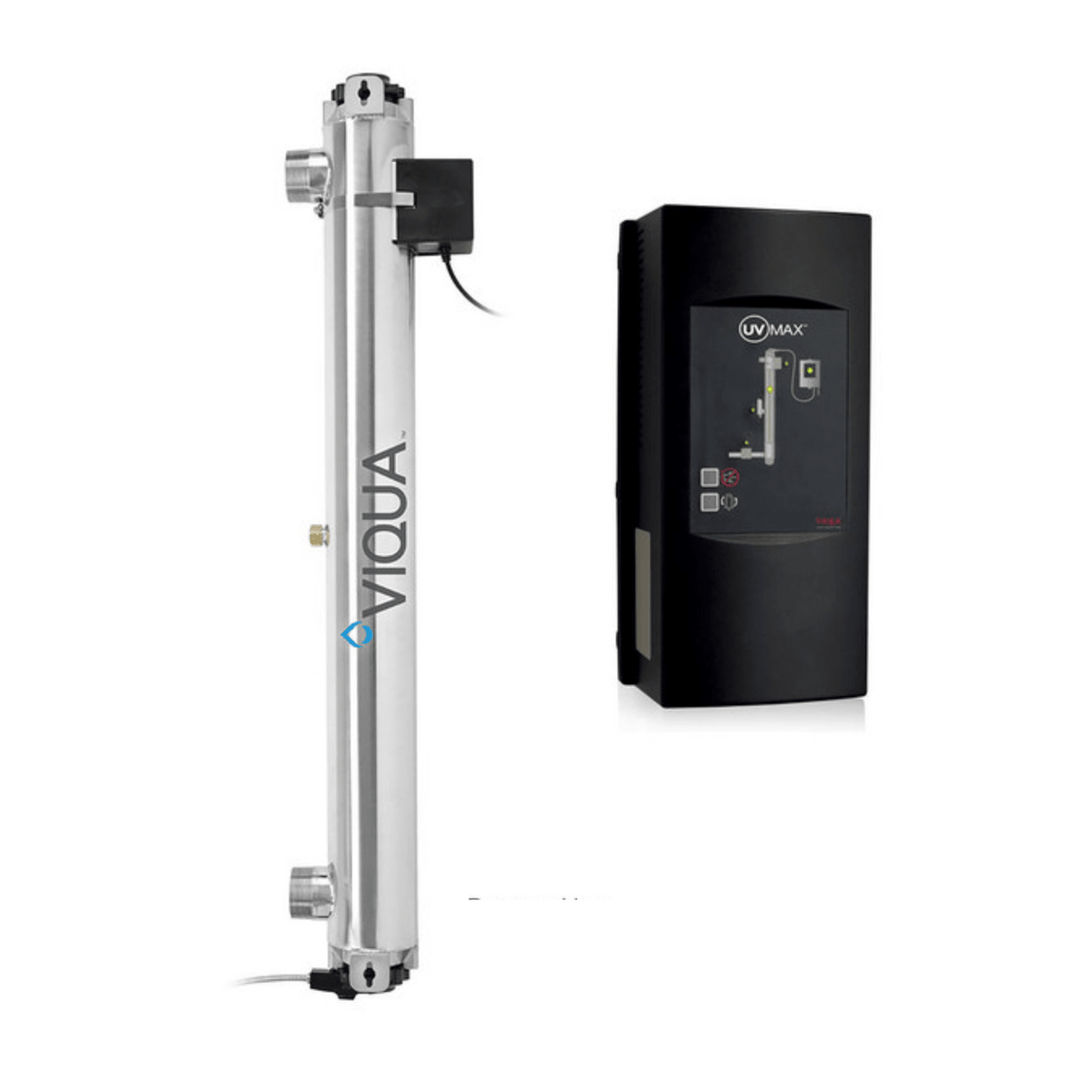

El sistema UV modelo VIQUA K es una unidad comercial de alto flujo diseñada para tratar caudales de hasta 80 GPM. VIQUA K cuenta con una lámpara de amalgama que proporciona mayor resistencia y hasta 2 años de vida útil. Estos sistemas vienen equipados con varios accesorios para facilitar el mantenimiento y además son capaces de funcionar con 100-240 V, 50-60 Hz.
Para solicitar que los tipos de enchufes eléctricos internacionales “F” (Europa), “G” (Reino Unido) y “I” (Australia) se incluyan con su sistema sin cargo, envíe un correo electrónico a atención al cliente después de realizar el pedido.
- Caudal: 80 galones por minuto
- Aplicación: Punto de entrada
- Alimentación: 100-240V 50-60Hz 230W Enchufe americano
- Dimensiones de la cámara: 41" x 4"
- Dimensiones de entrada: 2" MPT
- Dimensiones de salida: 2" MPT
Replacements & Add Ons
Helpful Info & Downloads
Q:
What flow rate is the VIQUA K 660001-R designed for?
A:
It is rated for up to 80 GPM under the manufacturer’s specified conditions. Size the system to peak simultaneous flow, not average daily use.
Q:

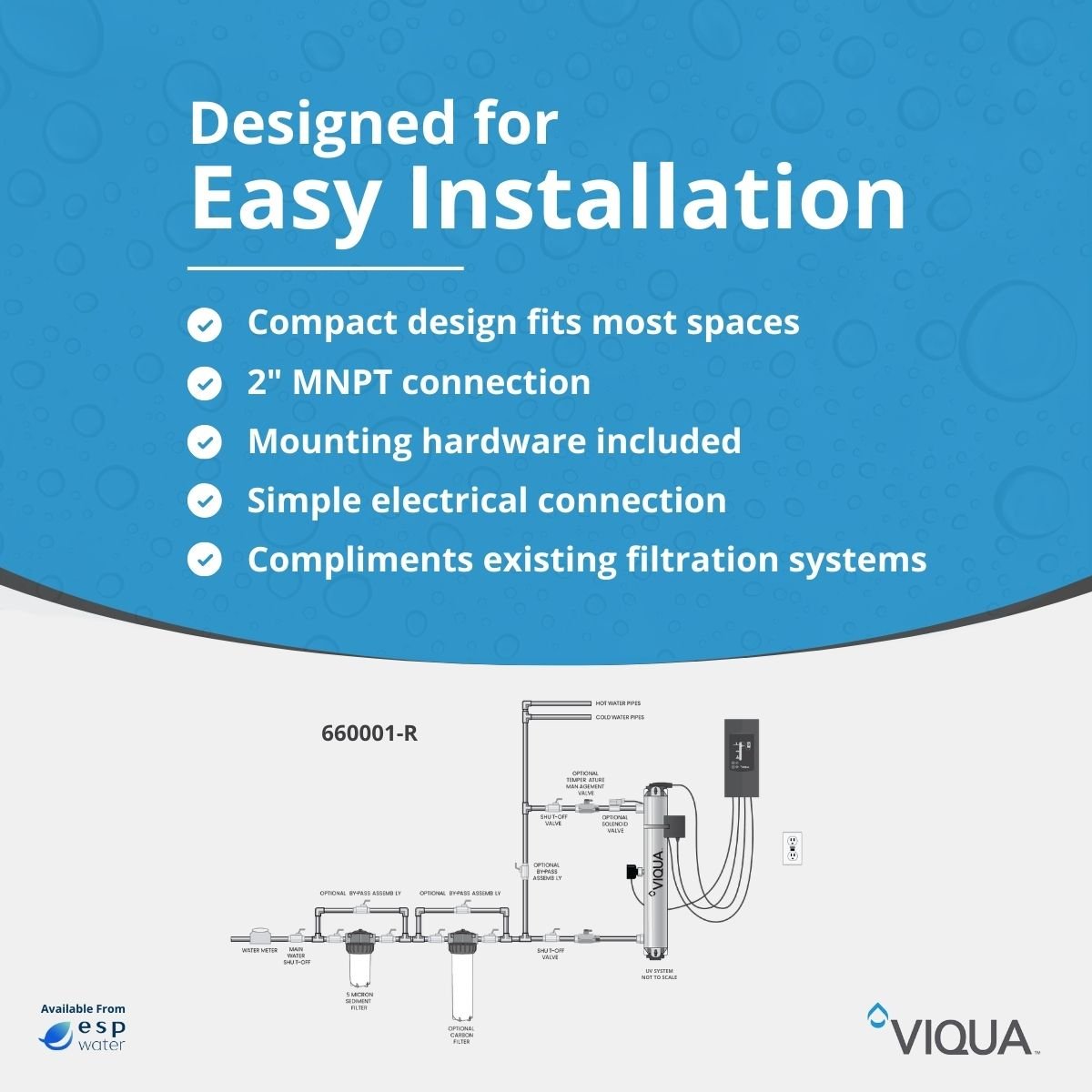

What plumbing and power does it require?
A:
It uses 2-inch male NPT connections and operates from 100–240 V, 50–60 Hz power unless the selected configuration states otherwise. Confirm bypass, drainage, and service clearance.
Q:
Does the VIQUA K 660001-R include UV output monitoring?
A:
No. This K configuration does not add the plus-model UV sensor; confirm whether monitored output is required for the application.
Q:
Where should the system be installed?
A:
Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and any other upstream treatment needed to keep water conditions within specification.
Q:
What routine maintenance is required?
A:

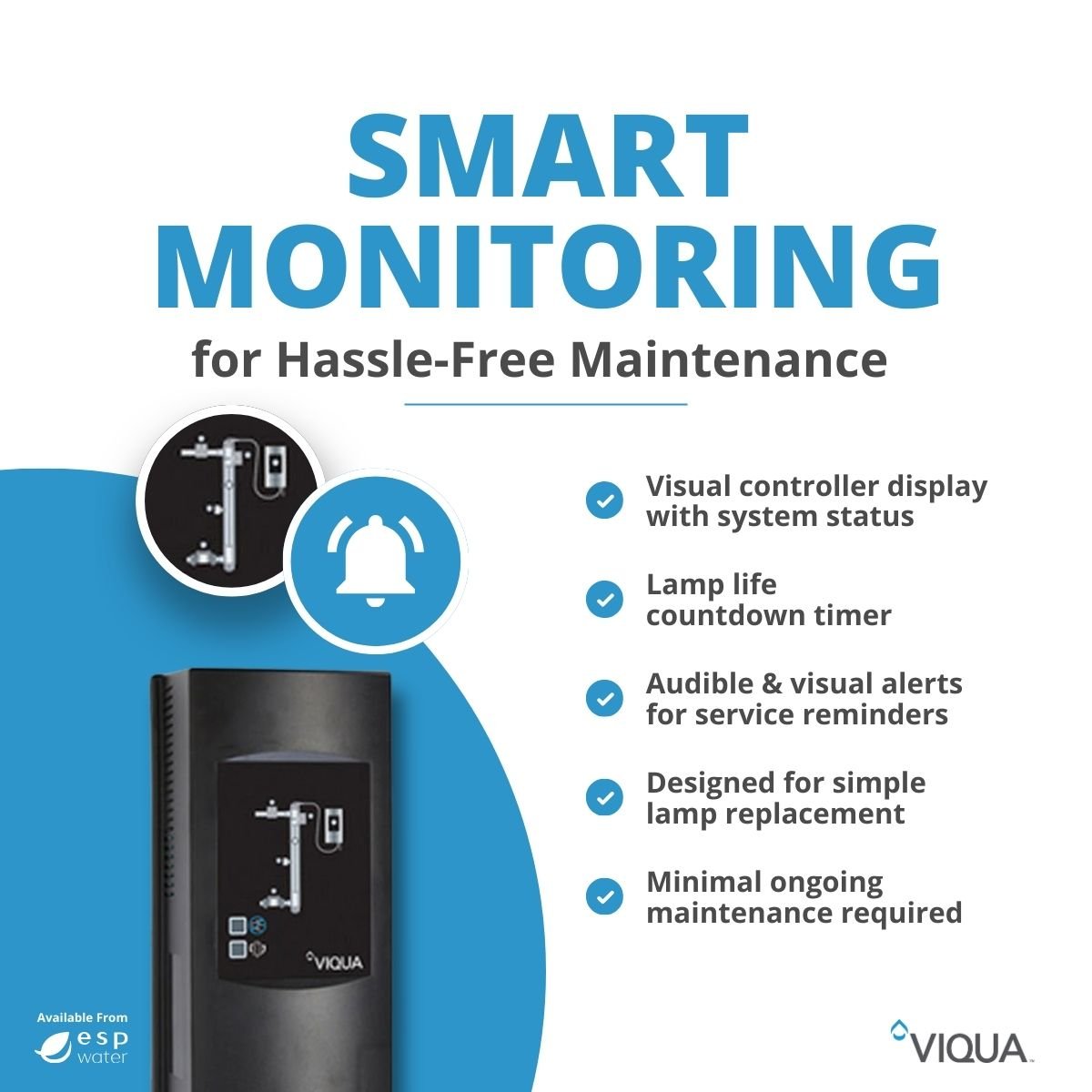

Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Respond to controller alarms rather than relying on visible lamp glow.
Q:
Which service parts should I plan for?
A:
Plan for the correct two-year amalgam lamp, quartz sleeve, seals, controller parts, and commercial-system accessories.
