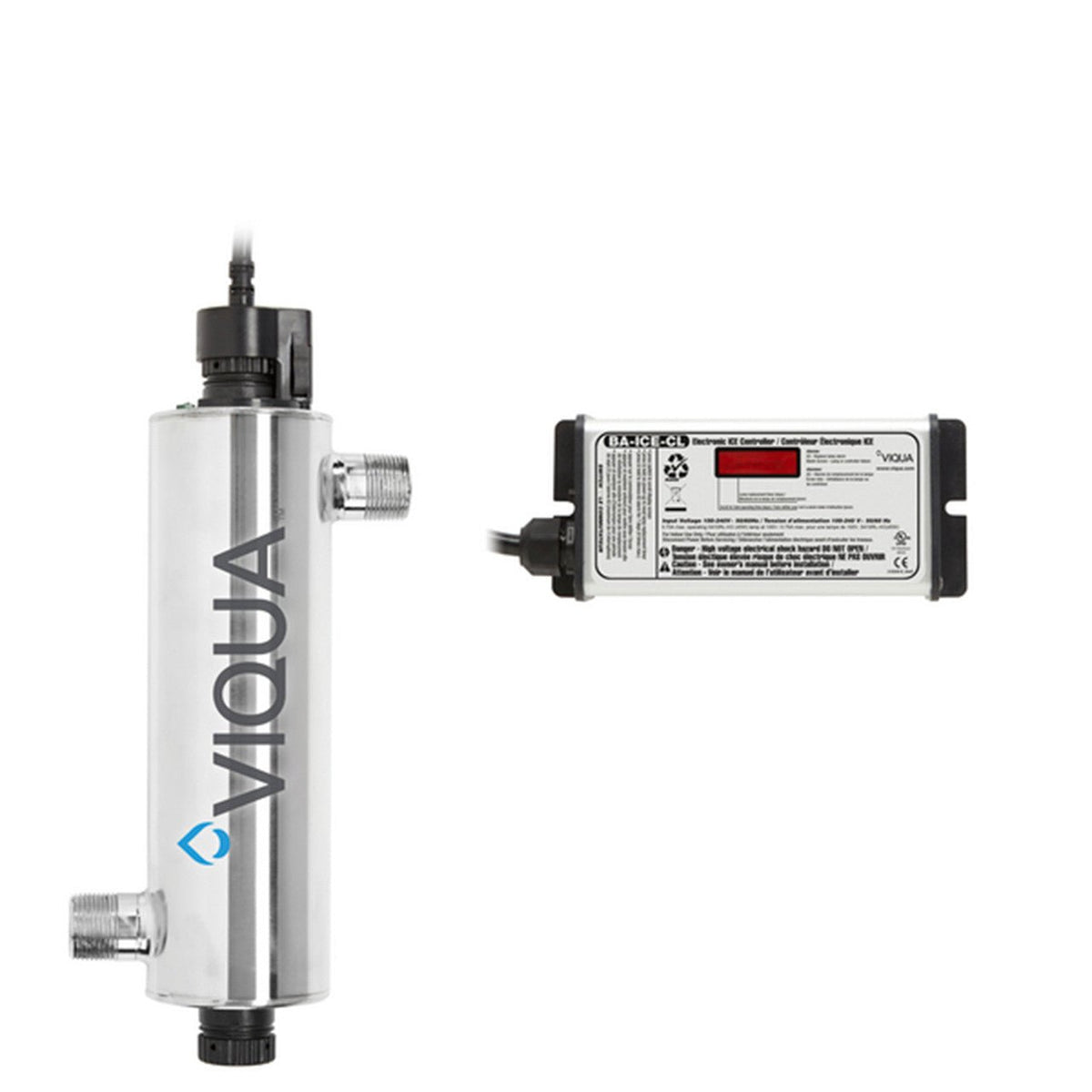

Sistema UV VIQUA VH200 9 GPM 3/4" FNPT 1" MNPT Combo
Q&As
Sistema UV VIQUA VH200 9 GPM 3/4" FNPT 1" MNPT Combo
Q&As
Part Number:
VH200
El sistema UV trata el agua a 9 GPM para desinfección en toda la casa con reactor compacto y puertos flexibles.
Read More
IN STOCK
Lamp Replacement Timer
Made In North America
Descripción
El sistema de desinfección de agua UV VIQUA VH200 es una unidad compacta de "punto de entrada" de 9 galones por minuto. Utiliza tecnología de lámpara de alto rendimiento, lo que la hace adecuada para hogares pequeños (de 1 a 3 baños) y algunas aplicaciones comerciales livianas.
Para solicitar que los tipos de enchufes eléctricos internacionales “F” (Europa), “G” (Reino Unido) y “I” (Australia) se incluyan con su sistema sin cargo, envíe un correo electrónico a atención al cliente después de realizar el pedido.
Specs
- Caudal: 9 galones por minuto
- Aplicación: Punto de entrada
- Potencia: 100-240V 50-60Hz 35W
- Dimensiones totales: 17,75" x 3,5"
- Dimensiones de entrada: 3/4" FPT y 1" MPT
- Dimensiones de salida: 3/4" FPT y 1" MPT
Features
This Item Fits These Select Systems
Replacements & Add Ons
Replacements for This Item
View All System Parts
Replacement Lamp
Lámpara UV VIQUA S200RL-HO para VH200, SC-200, SCM-200, SP200-HO
Replace Every 12 Months
See Details
Replacement Sleeve
VIQUA QS-001 Funda de cuarzo UV para VH200, S1Q-PA, SSM-14
Replace Every 24 Months
See Details
Replacement Combo
Kit de funda y lámpara UV VIQUA QL-200 para VH200 y VH200-F10
Replace Every 12 Months
See Details
Helpful Info & Downloads
Downloads
Overall rating: 5.0 / 5 from 4 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Easy to install. Working well.
"Easy to install. Working well."
So far so good
"Installation was pretty easy and it seems to be working great."
We are so happy to
"We are so happy to have the Viqua UV filter to stop coliform bacteria in our well water. Test showed it works!"
Very responsive and friendly.
"Very responsive and friendly."
Q&A
Q:
What flow rate is the VIQUA VH200 designed for?
A:
It is rated for up to 9 GPM under the manufacturer’s specified conditions. Size the system to peak simultaneous flow, not average daily use.
Q:
What plumbing and power does it require?
A:
It uses 3/4-inch female NPT and 1-inch male NPT combination connections and operates from 100–240 V, 50–60 Hz power unless the selected configuration states otherwise. Confirm bypass, drainage, and service clearance.
Q:
Does the VIQUA VH200 include UV output monitoring?
A:
No. VH200 is the standard model without a dedicated UV-intensity sensor.
Q:

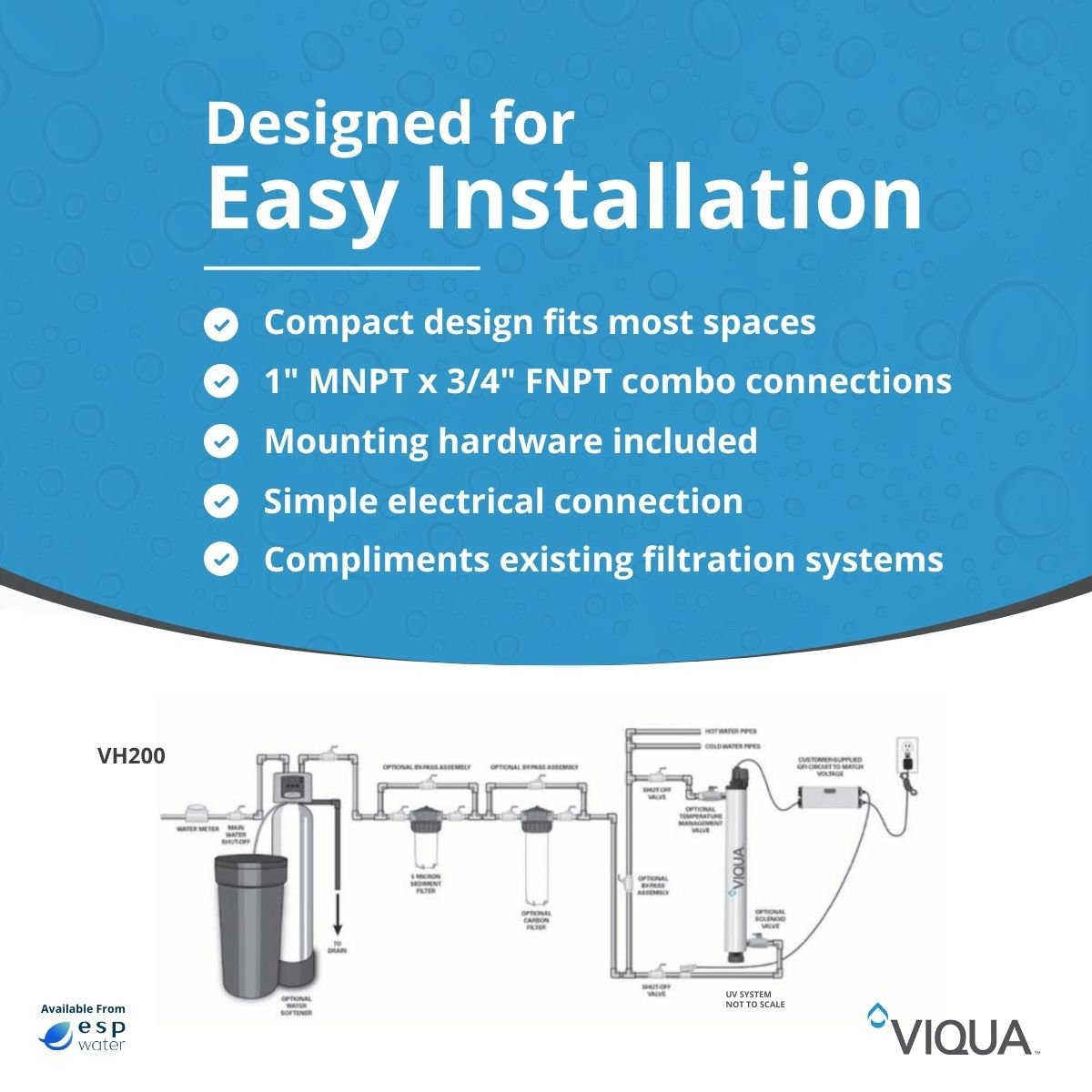

Where should the system be installed?
A:
Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and any other upstream treatment needed to keep water conditions within specification.
Q:
What routine maintenance is required?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Respond to controller alarms rather than relying on visible lamp glow.
Q:
Which service parts should I plan for?
A:
Plan for the S200RL-HO lamp, matching quartz sleeve or QL-200 kit, and the correct seals.
