VIQUA S5Q-P/12VDC Sistema UV 5 GPM 12VDC
Q&As
VIQUA S5Q-P/12VDC Sistema UV 5 GPM 12VDC
Q&As
Part Number:
S5Q-P/12VDC
El sistema UV de bajo voltaje ofrece una desinfección ultravioleta confiable para aplicaciones que requieren alimentación de 12 V CC.
Read More
IN STOCK
Lamp Replacement Timer
Made In North America
Descripción

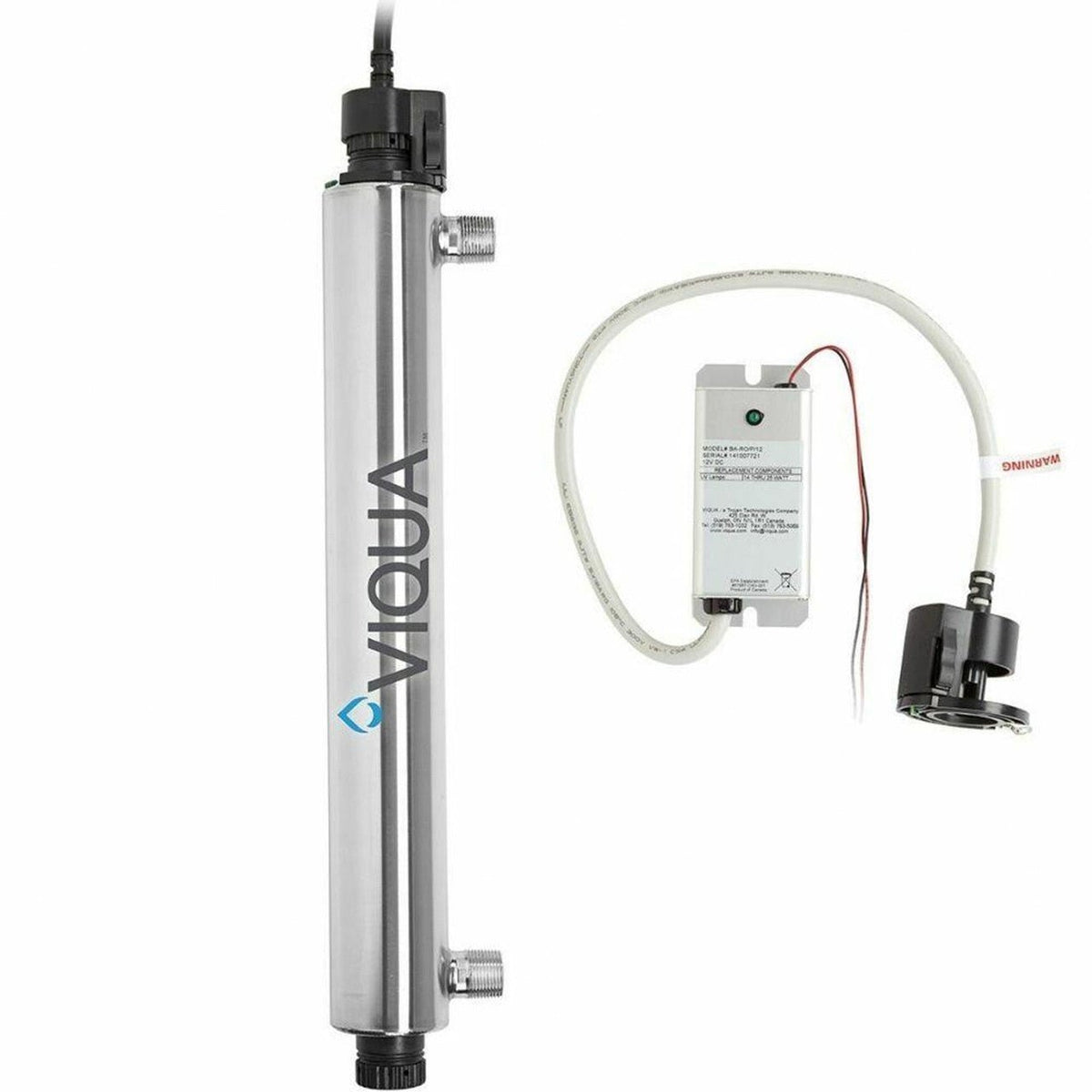

El VIQUA S5Q-P/12VDC es la versión de 12 voltios CC del S5Q-PA. Este sistema es para aplicaciones que requieren purificación de 12 VCC y 5 GPM. Si vive fuera de la red o sin electricidad, el S5Q-P/12VDC puede ser perfecto para sus necesidades de purificación.
Para solicitar que los tipos de enchufes eléctricos internacionales “F” (Europa), “G” (Reino Unido) y “I” (Australia) se incluyan con su sistema sin cargo, envíe un correo electrónico a atención al cliente después de realizar el pedido.
Specs
- Caudal: 5 galones por minuto
- Aplicación: Punto de entrada
- Alimentación: 12 VCC 26 W N. Enchufe americano
- Dimensiones de la cámara: 22,1" x 2,5"
- Dimensiones de entrada: 3/4" MPT
- Dimensiones de salida: 3/4" MPT
Features
This Item Fits These Select Systems
Replacements & Add Ons
Replacements for This Item
View All System Parts
Replacement Sleeve
Funda de cuarzo UV VIQUA QS-463 para sistemas S5Q-PA y SSM-24
Replace Every 24 Months
See Details
Replacement Combo
Kit de funda y lámpara UV VIQUA S463-QL para S5Q-PA y SSM-24
Replace Every 12 Months
See Details
Add Ons for This Item
Helpful Info & Downloads
Downloads
Overall rating: 5.0 / 5 from 1 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Great service and delivered exactly
"Great service and delivered exactly as said."
Q&A
Q:
What flow rate is the VIQUA S5Q-P/12VDC designed for?
A:
It is rated for up to 5 GPM under its specified conditions. Size the system to peak simultaneous flow, not average daily water use.
Q:
What electrical supply does it require?
A:
This model uses 12 VDC power. Confirm the power source, cord and plug requirements, grounding, and controller location before installation.
Q:

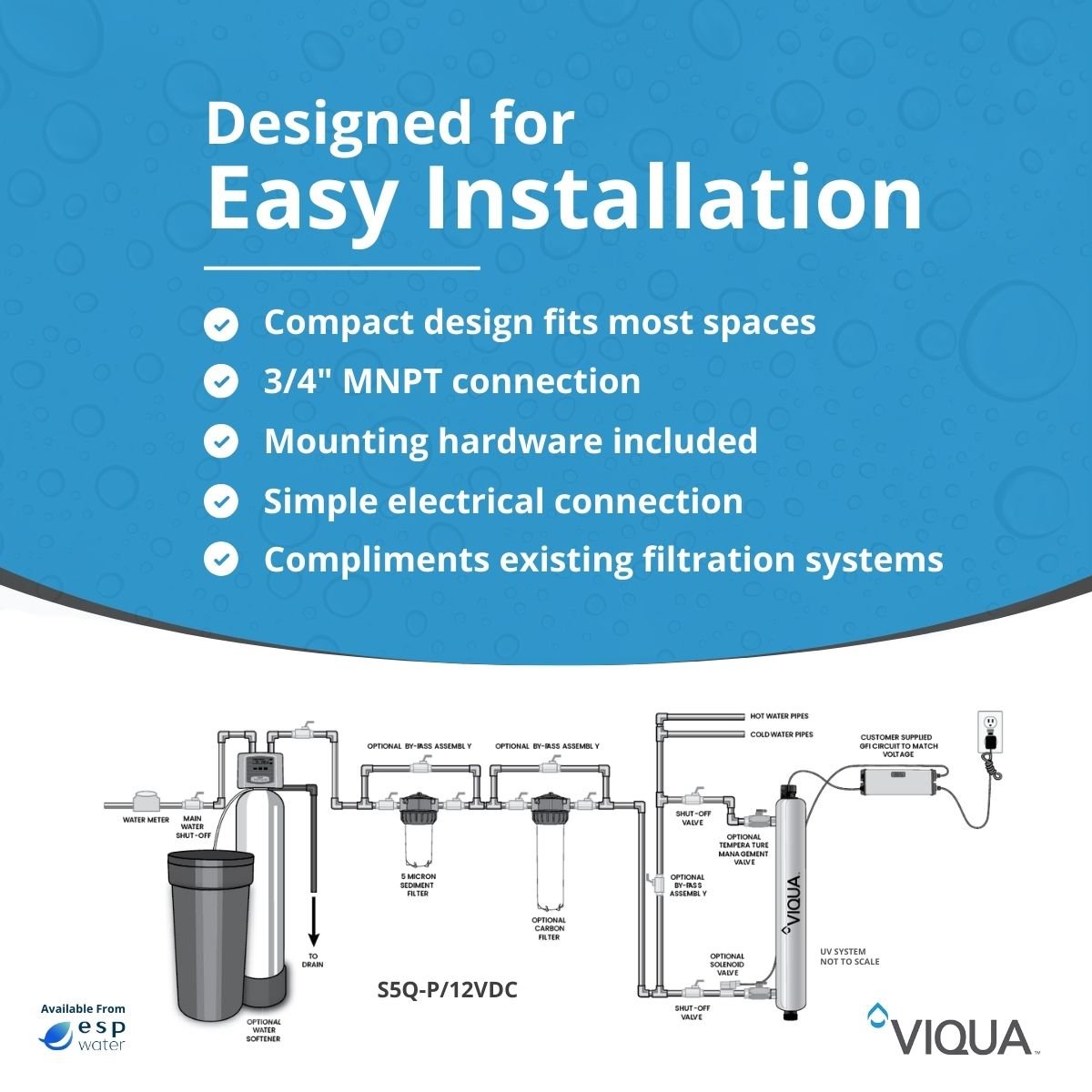

Where is this UV system typically installed?
A:
Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and other upstream treatment so water conditions remain within specification.
Q:
What maintenance does the VIQUA S5Q-P/12VDC require?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Track controller alarms rather than relying on visible lamp glow.
Q:
Which replacement parts should I plan for?
A:
Plan for the S463-series lamp and QS-463 sleeve or S463-QL kit, seals, and the correct 12 VDC controller parts.
Q:
What else should I know before buying?
A:
This version is intended for battery or off-grid power. Verify regulated voltage, available current, wiring protection, and peak-flow demand.
