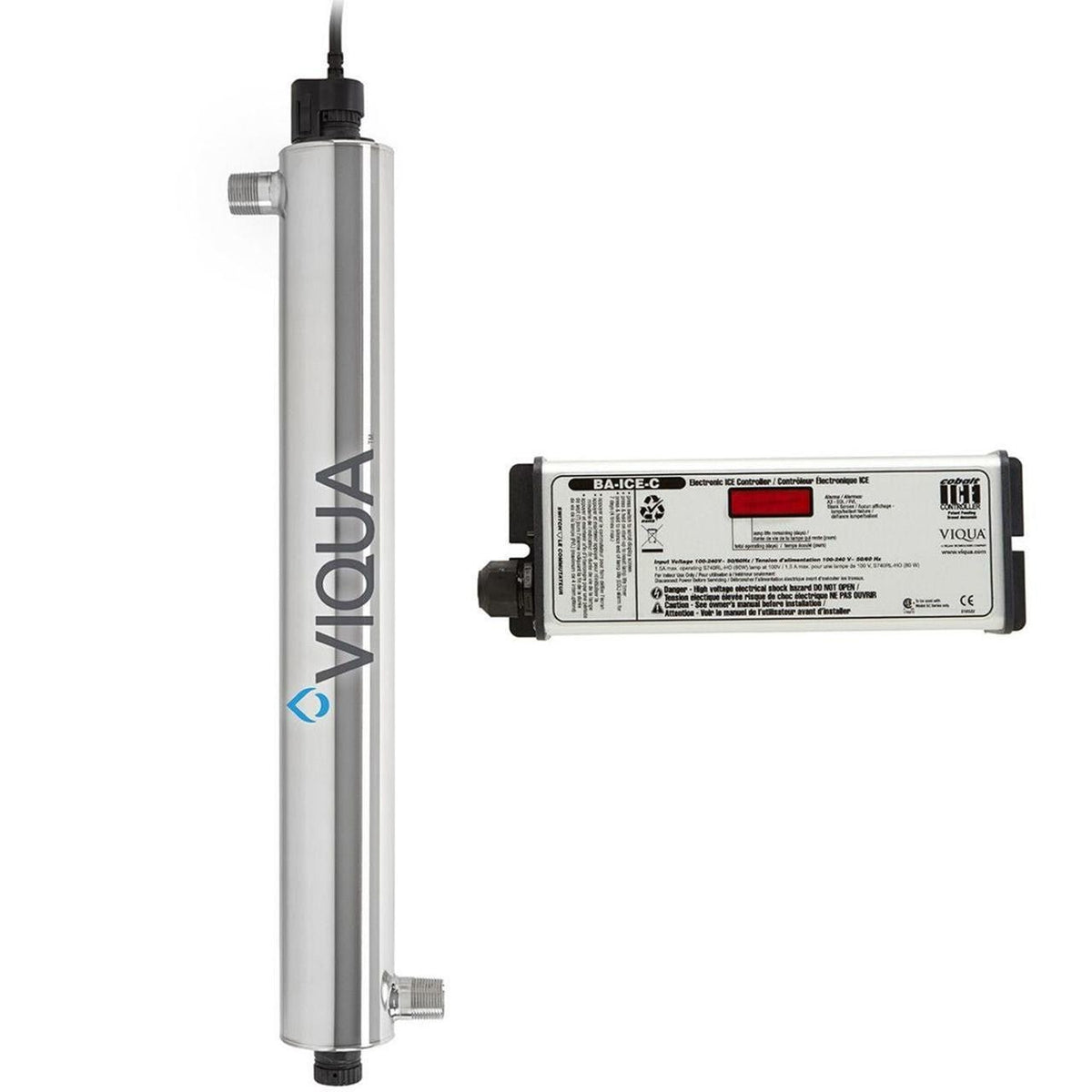

VIQUA VP600 Sistema UV 24 GPM 1" MNPT
VIQUA VP600 Sistema UV 24 GPM 1" MNPT
Descripción
Como parte de la serie profesional VIQUA, el sistema comercial VIQUA VP600 trata el agua a 24 GPM para un rendimiento de tratamiento excepcional. Este sistema UV compacto proporciona un tratamiento UV económico y fiable para aplicaciones comerciales como restaurantes, hoteles, guarderías, escuelas y mucho más. Capaz de 100-240 V, 50-60 Hz.
Para solicitar que se incluyan los tipos de enchufes eléctricos internacionales "F" (Europa), "G" (Reino Unido) e "I" (Australia) con su sistema sin cargo, envíe un correo electrónico a atención al cliente, después de realizar el pedido.
- Caudal: 24 galones por minuto
- Aplicación: Punto de entrada
- Alimentación: 100-240V 50-60Hz 70W Enchufe americano
- Dimensiones totales: 30,75" x 3,5"
- Dimensiones de entrada: 1" MPT
- Dimensiones de salida: 1" MPT
Replacements & Add Ons
Helpful Info & Downloads
Q:
What flow rate is the VIQUA VP600 designed for?
A:
It is rated for up to 24 GPM under the manufacturer’s specified conditions. Size the system to peak simultaneous flow, not average daily use.
Q:
What plumbing and power does it require?
A:
It uses 1-inch male NPT connections and operates from 100–240 V, 50–60 Hz power unless the selected configuration states otherwise. Confirm bypass, drainage, and service clearance.
Q:
Does the VIQUA VP600 include UV output monitoring?
A:
No. The standard VP600 does not include the M-model UV sensor.
Q:

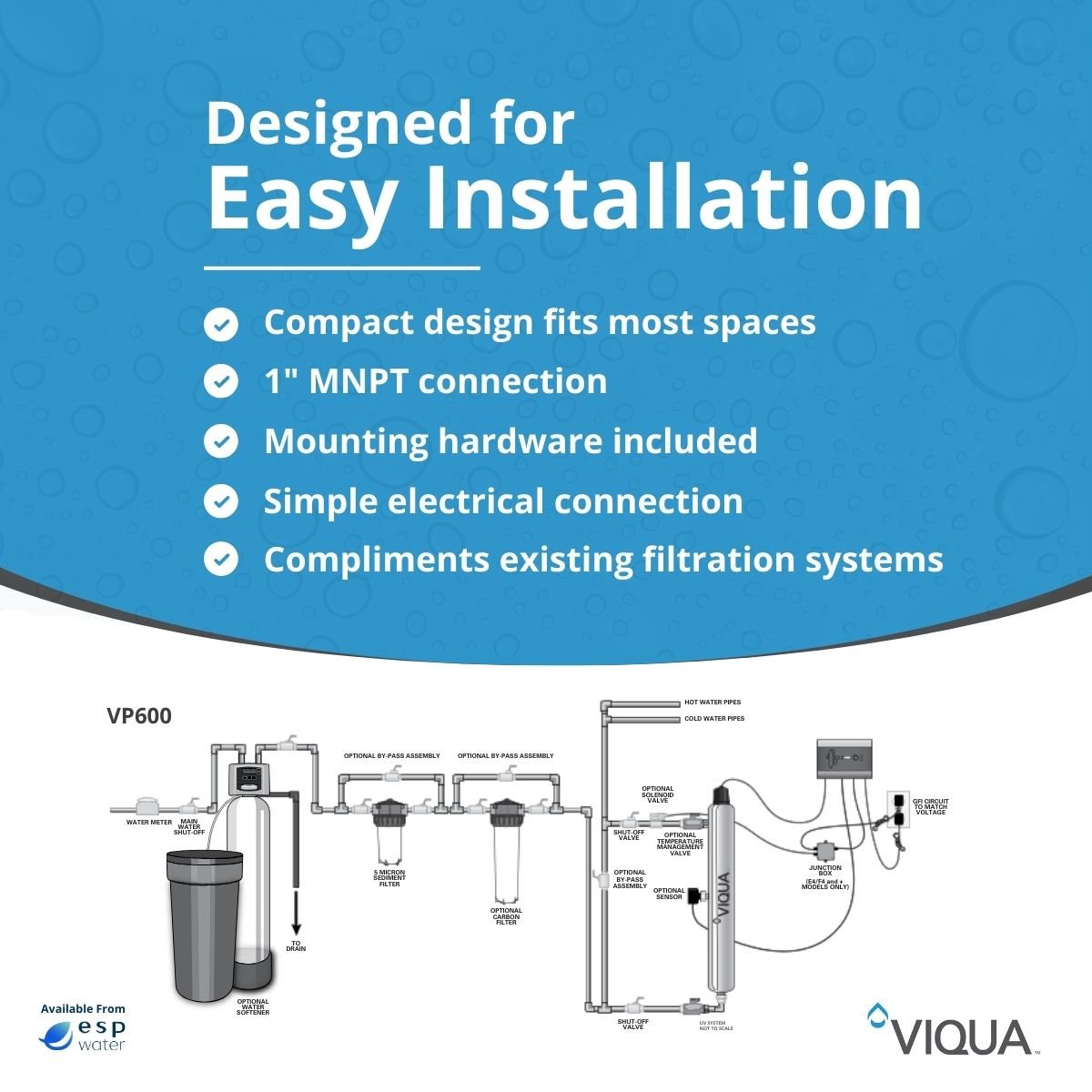

Where should the system be installed?
A:
Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and any other upstream treatment needed to keep water conditions within specification.
Q:
What routine maintenance is required?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Respond to controller alarms rather than relying on visible lamp glow.
Q:
Which service parts should I plan for?
A:
Plan for the S600RL-HO lamp, QSO-600 sleeve or QL-600 kit, seals, and controller service parts.
