Luminor RL-210HO Lámpara UV de repuesto para LBH4-051, LBH5-051, LBH6-051
Luminor RL-210HO Lámpara UV de repuesto para LBH4-051, LBH5-051, LBH6-051
Descripción

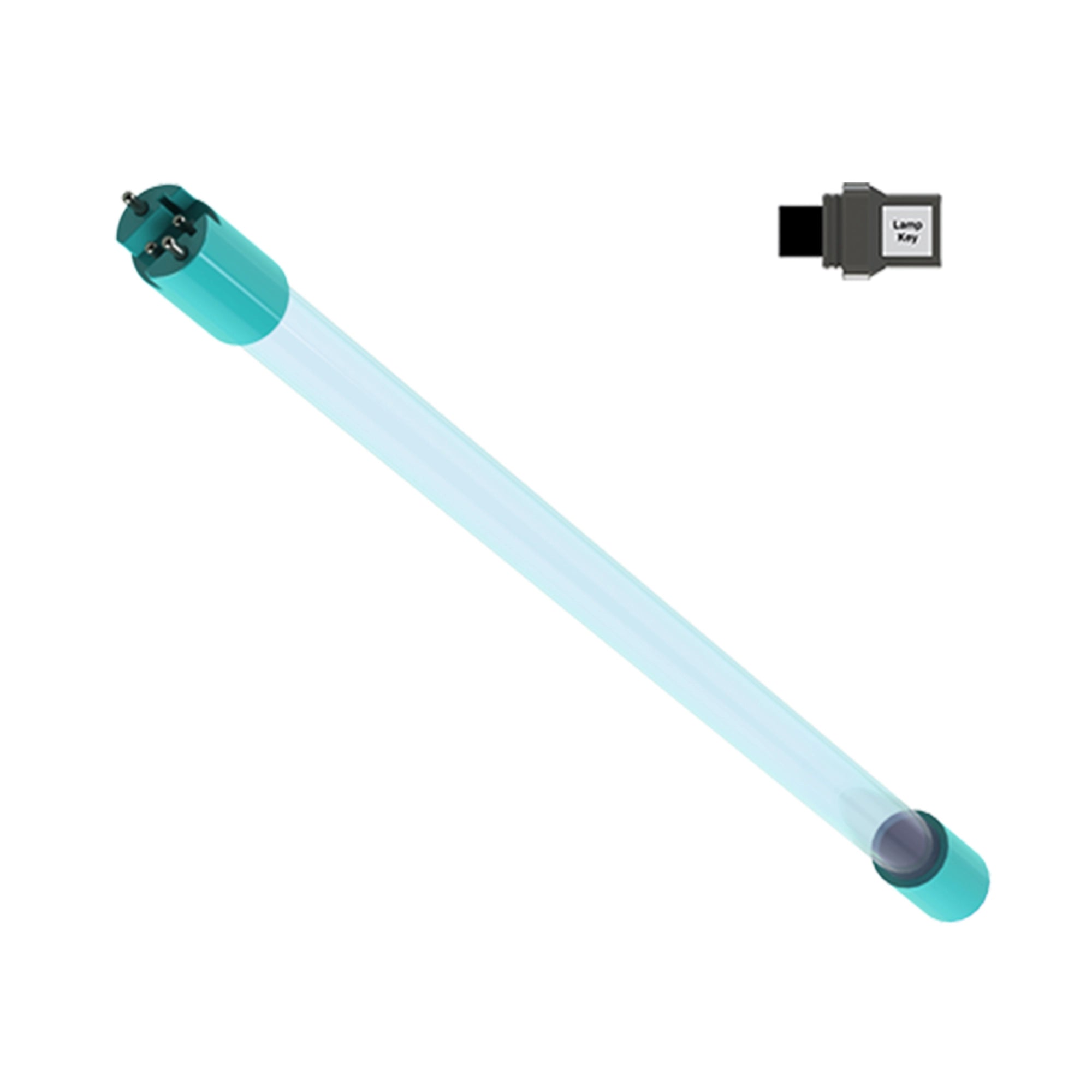

La lámpara UV de alto rendimiento RL-210HO es la lámpara de repuesto y la llave para los sistemas de tratamiento de agua UV de alto rendimiento LUMINOR BLACKCOMB-HO LBH4-051, LBH5-051, LBH6-051.
La RL-210HO es una lámpara LUMINOR auténtica y tiene una vida útil de 10 000 horas. La luz UV-C emitida se debilita con el tiempo, por lo que, una vez que una lámpara alcanza las 10 000 horas (o cada 12 meses), es importante reemplazarla de inmediato.
Por qué es importante utilizar una lámpara LUMINOR original: Los sistemas y lámparas UV LUMINOR se prueban y certifican como una unidad completa. El uso de una lámpara LUMINOR auténtica garantiza el rendimiento adecuado del sistema. El uso de lámparas que no son LUMINOR anula todas las certificaciones del sistema UV y puede comprometer su garantía en caso de que surja un problema.
- Sustituir cada 12 meses o 10.000 horas de uso.

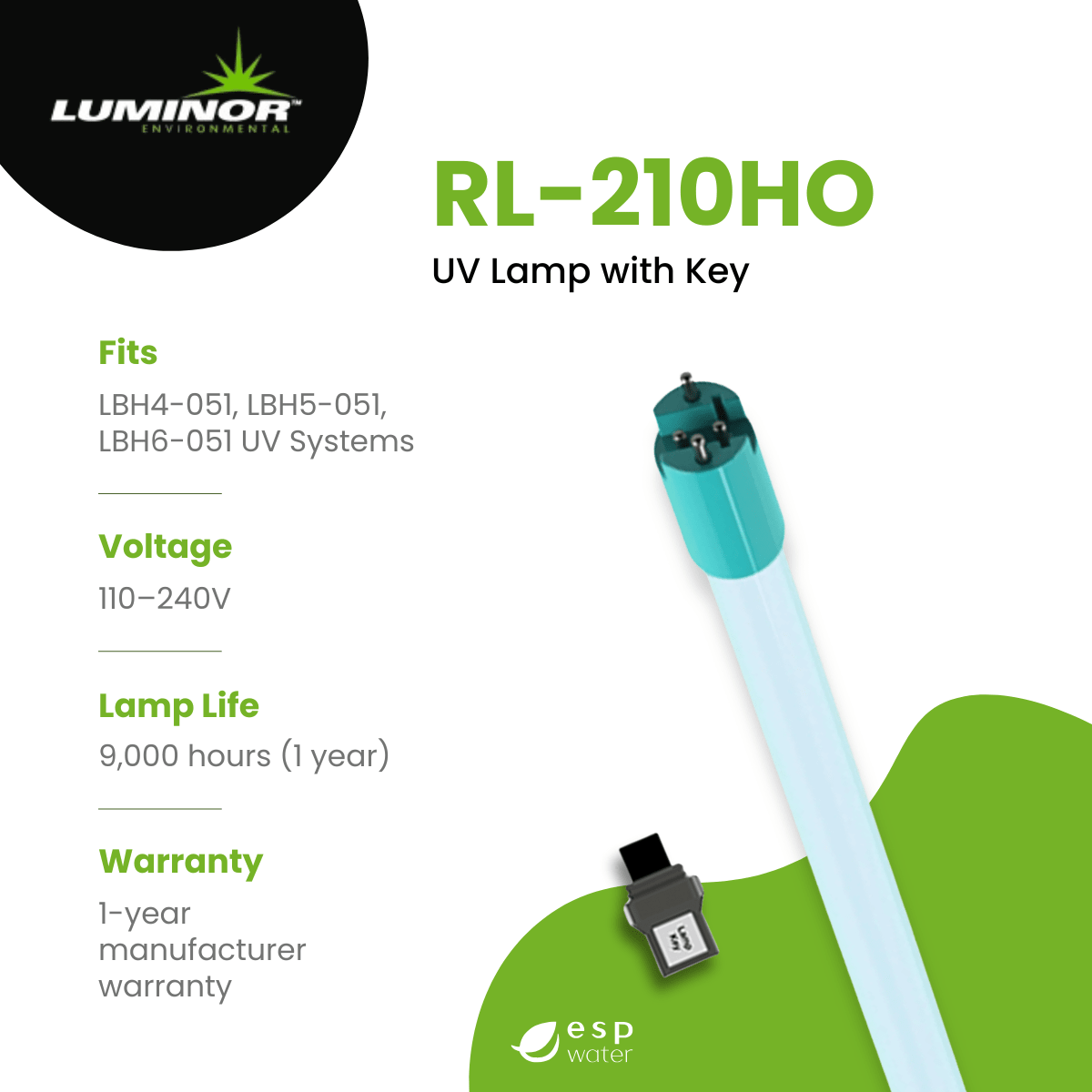

- Longitud: 8,3" (210 mm)
- Potencia: 18 vatios
Helpful Info & Downloads
Q:
How do I know if the RL-210HO is the right lamp for my system?
A:
Check the model number on your system's nameplate. The RL-210HO fits any Luminor BLACKCOMB-HO system ending in "-051": LBH4-051, LBH5-051, LBH6-051, LBH5-051B, LBH6-051B, and LBH6-051A. If your model doesn't have an "LBH" prefix, you have a standard-output BLACKCOMB system and need the RL-210 instead, not the RL-210HO.
Q:
What's the difference between a High Output (HO) system and a standard BLACKCOMB system?
A:
Both use LP-HO coated lamps that hold their UV dose steadily over their full rated life, and Luminor positions the BLACKCOMB-HO line as a "Residential Crossover" option for larger custom homes, lodges, and light commercial jobs that need more disinfection capacity than a standard system provides. Water quality requirements are the same either way: at least 75% UVT (or 50% for low-UVT-rated models).
Q:
What does a "Lamp Failure" alarm mean?
A:
It means the controller can't light the lamp. Unplug the system for at least 3 minutes, check that the lamp connector is fully seated, then plug it back in. If the alarm continues, replace the lamp. If a new lamp doesn't clear it, the controller itself may need service.
Q:
How do I reset the lamp timer after installing the RL-210HO?
A:
On a 4.1 controller (4-digit LED display), press and hold the front button until the display cycles through rSt3, rSt2, rSt1 and beeps. On a 5.1 controller (LCD display with lamp key), unplug the controller, remove the old lamp key, insert the new lamp's key, then plug it back in. Either way, the display should return to showing full lamp life remaining; if it doesn't, contact Luminor support.
Q:
Will a non-Luminor replacement lamp work in my BLACKCOMB-HO system?
A:
It may physically fit, but Luminor systems are NSF/ANSI 55 certified as a complete lamp-and-system unit. A non-Luminor lamp voids that certification and can affect your warranty if an issue comes up.
