Kit de lámpara UV Luminor RLQ-210 y funda para LB4-021, LB5-021, LB6-021
Kit de lámpara UV Luminor RLQ-210 y funda para LB4-021, LB5-021, LB6-021
Subscription Details
Automatic deliveries and charges at your selected frequency. Skip, reschedule, or cancel through your subscription account. View subscription details.
Descripción

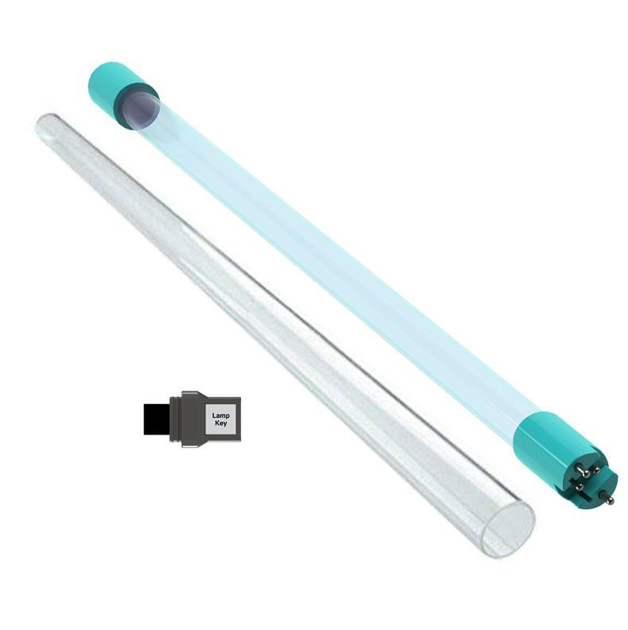

El RLQ-210 incluye la bombilla de repuesto UV, la funda de cuarzo que la acompaña y la llave de lámpara para los sistemas de purificación de agua UV modelo LUMINOR LB4-021, LB5-021 y LB6-021. Es extremadamente importante reemplazar la bombilla cada 12 meses para mantener la eficacia adecuada del sistema. La funda se puede reemplazar cada 24 meses o según sea necesario para evitar que la acumulación de minerales dificulte la eficacia de la lámpara.
Por qué es importante usar una lámpara LUMINOR genuina: Los sistemas y lámparas UV LUMINOR se prueban y certifican como una unidad completa. El uso de una lámpara LUMINOR auténtica garantiza el rendimiento adecuado del sistema. El uso de lámparas que no sean LUMINOR anula todas las certificaciones del sistema UV y puede comprometer su garantía si surge algún problema.
- Incluye RL-210 y RQ-210
- Reemplace la lámpara cada 12 meses.
- Reemplace la funda cada 24 meses o cuando sea necesario.
Helpful Info & Downloads
Q:
What is the Luminor RLQ-210?
A:
It's a genuine Luminor replacement kit containing the RL-210 UV lamp, RQ-210 quartz sleeve, and a new lamp key, sized for LUMINOR BLACKCOMB LB4-021, LB5-021, and LB6-021 UV water treatment systems.
Q:
Is the lamp in this kit the same thing as a UV bulb?
A:
Yes. Luminor and ESP call it a "lamp," but it's the same part many customers search for as a "UV bulb" — "luminor uv bulb replacement" and "uv bulb replacement" are both real searches that land on the RL-210 page. The RL-210 in this kit is a plug-in UV lamp, not a screw-in household bulb.
Q:
Should I replace the lamp and sleeve together, or only when each wears out?
A:
They're on different clocks: the lamp is rated for 10,000 hours, and Luminor recommends replacing it every 12 months or after 9,000 hours, whichever comes first, while the sleeve typically lasts about 24 months. The kit is convenient when both are due or you're unsure of your sleeve's condition; buy the RL-210 or RQ-210 separately if only one needs replacing.
Q:
What does a "Lamp Failure" alarm on my Blackcomb controller mean?
A:
It means the controller can no longer light the UV lamp. Unplug the system for at least 3 minutes, confirm the lamp connector is fully seated, and restart it. If the alarm persists, replace the lamp — the RL-210 in this kit is the correct genuine replacement for LB4-021, LB5-021, and LB6-021.
Q:
How do I reset the lamp timer after installing the lamp key from this kit?
A:
LB4-021, LB5-021, and LB6-021 use the 5.1 controller with a lamp key: unplug the controller, remove the old lamp key, insert the new key that comes with the RL-210 lamp, then plug it back in. The display should show 375 or 420 days depending on your system.
