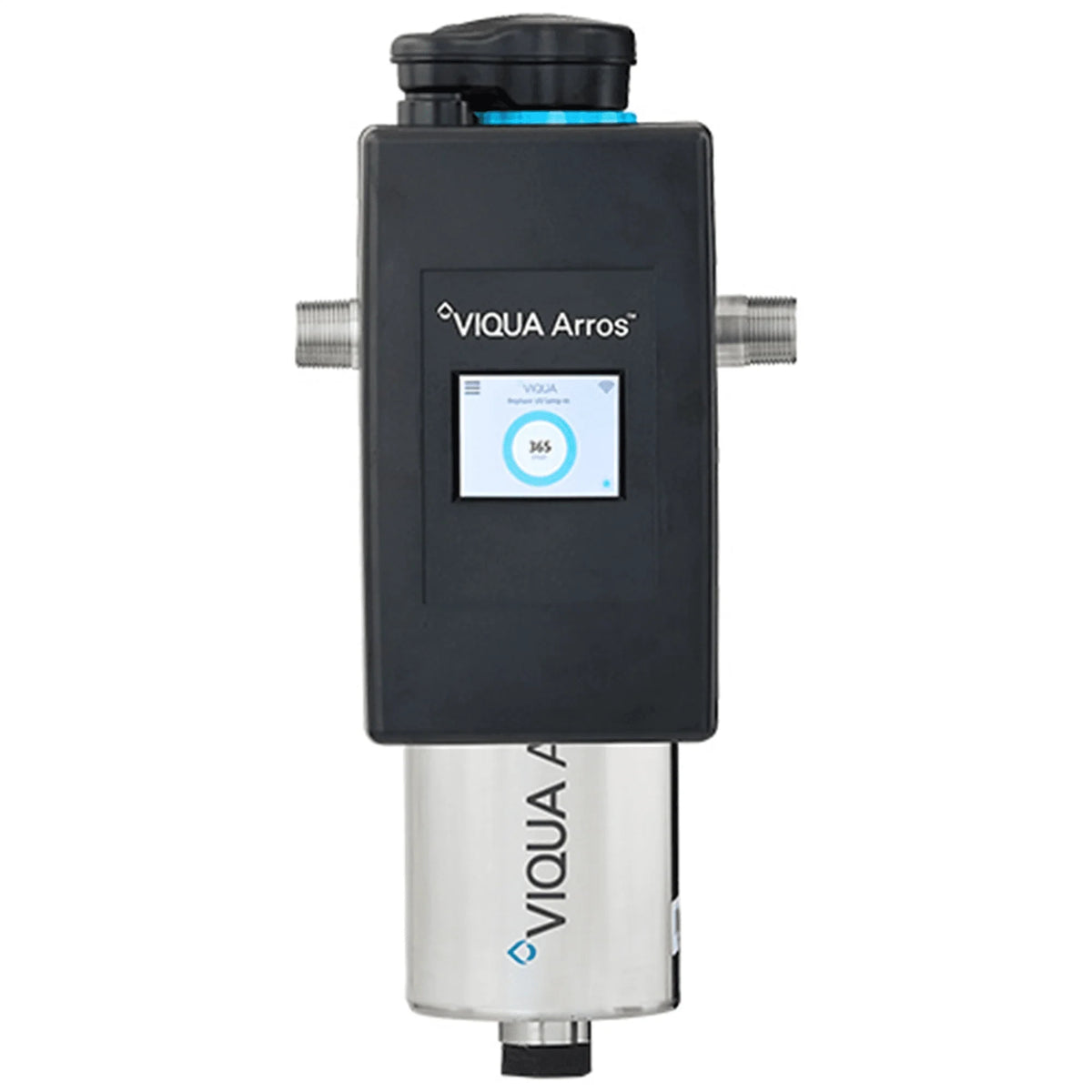

VIQUA Arros 9 UV System 9 GPM

Part Number: Arros 9
( 0 reviews )

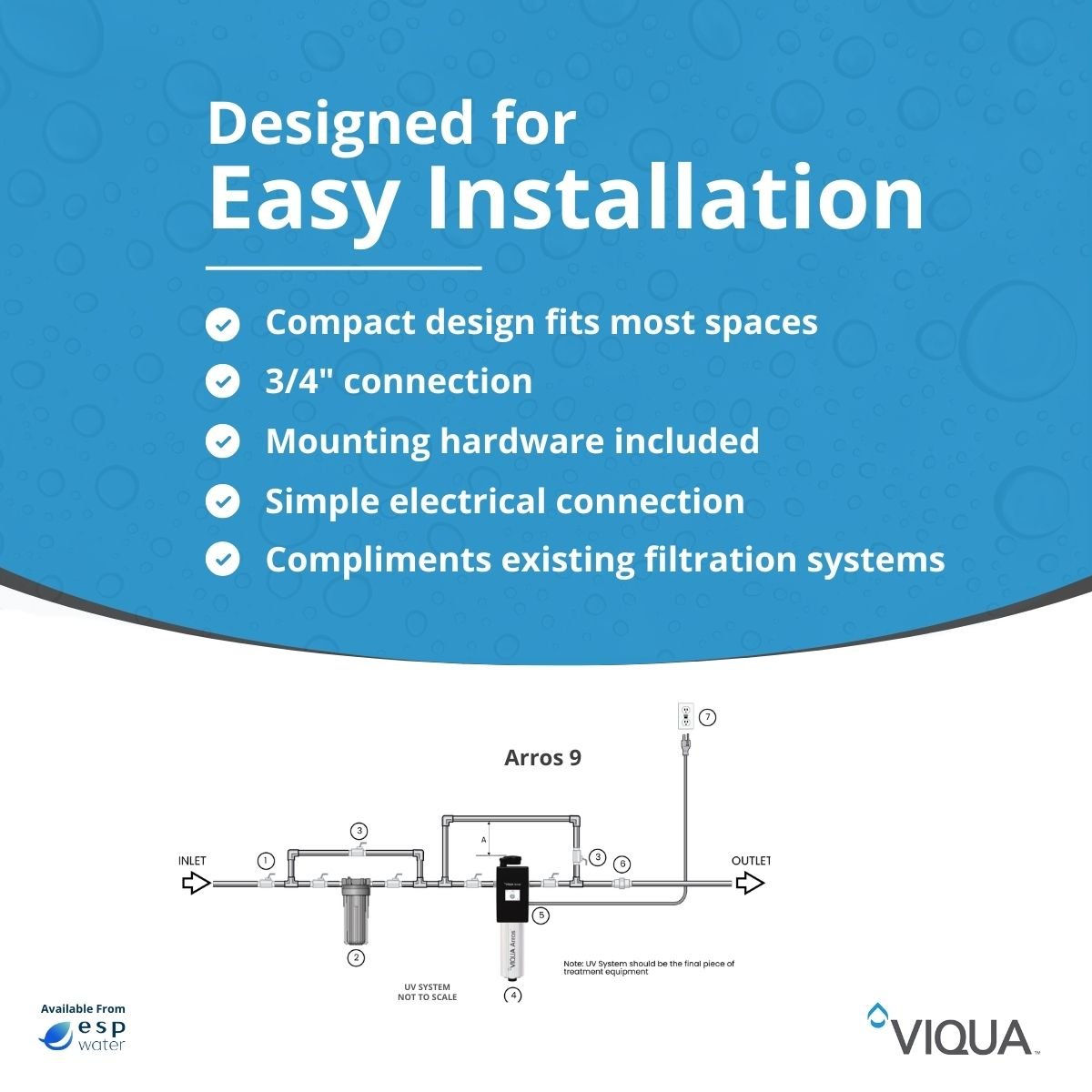

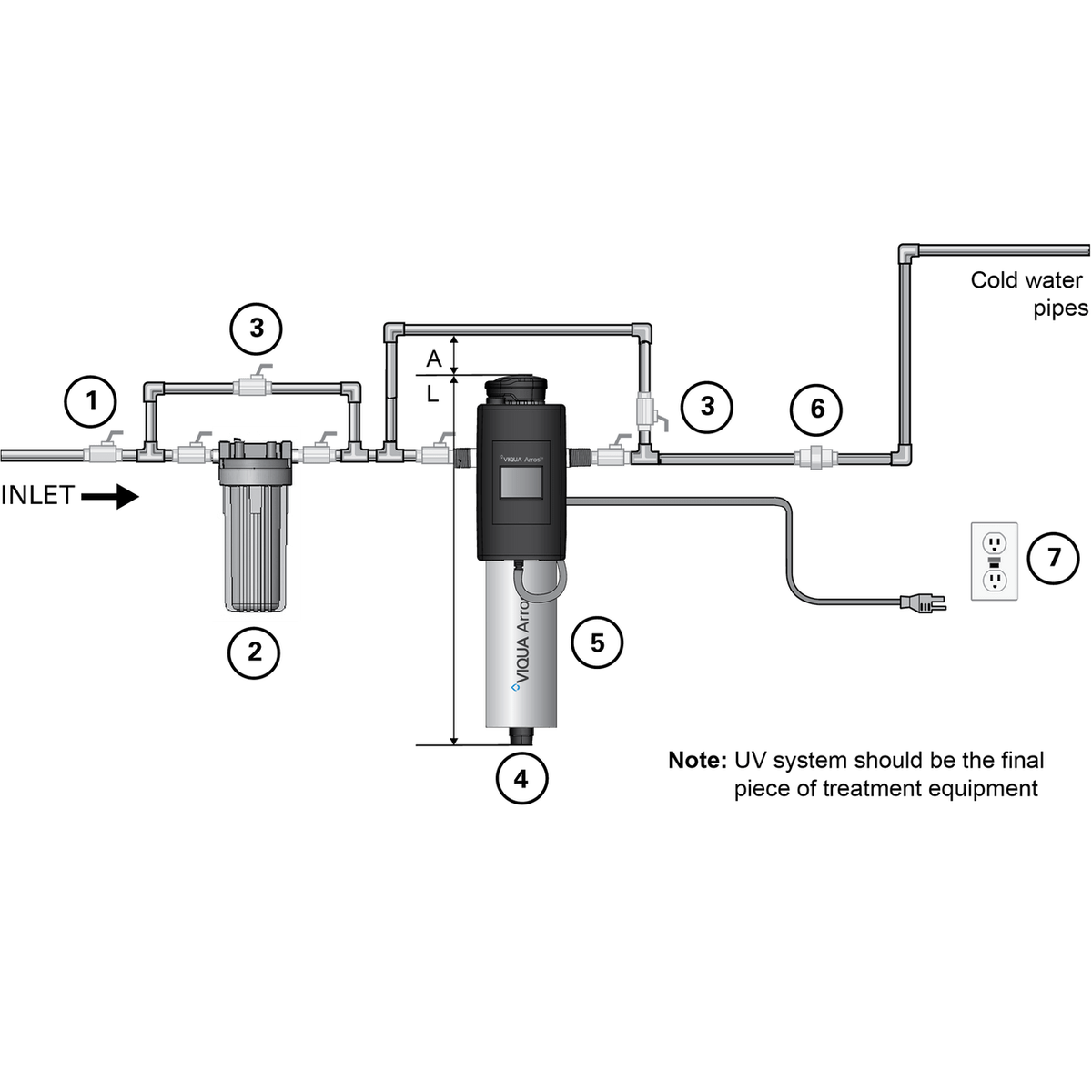

Viqua Arros installation diagram
Viqua Arros installation diagram

VIQUA Arros 9 UV System 9 GPM
( 0 reviews )
Part Number: Arros 9
LCD Screen
Lamp Replacement Timer
Made In North America
LCD Screen
Lamp Replacement Timer
Made In North America
Description

The VIQUA Arros 9 is the next generation in UV design and is the ideal whole-home water sterilizer system for residential applications.  This versatile, streamlined/compact ultraviolet system is also available in 15 GPM and 22 GPM.

The Arros UV provides optimized performance while reducing maintenance inconveniences. The pre-installed controller saves time and ensures a cleaner installation process while the UV chamber’s space-efficient design improves lamp dose efficiency.

The VIQUA Arros has been validated through microbial testing, and performance data has been generated for UV dose delivery to inactivate Giardia, Escherichia coli (E. coli), Cryptosporidium and fecal coliform.

Learn more about the Viqua Arros UV system.
Feature & Specs
Features
LCD Screen
Lamp Replacement Timer
Made in North America
Specs
Flow Rate: 9 Gallons Per Minute
Application: Point-of-Entry
Power: 100-240V 50-60Hz 33W N. American Plug
Dimensions: 11.2” x 4.0”
Inlet Dimensions: 3/4″ MNPT
Outlet Dimensions: 3/4″ MNPT
The “T” shape of the chamber (or Tidal™ chamber) positions the inlet and outlet ports on a single plane, reducing the need for complex plumbing and fitting connections
Quick-mount bracket quickly anchors to the wall which saves time and ensures straight lines
Threaded plug allows for quick and clean draining
Helpful Info & Downloads
Downloads
Viqua Arros Owners Manual
Viqua Arros Spec Sheet
