How to Clean a UV Quartz Sleeve
Article Summary: A UV quartz sleeve protects the lamp and transmits UV light into the water. Mineral buildup can block that light. To clean it, isolate and depressurize the system, disconnect power, allow it to cool, and follow your model’s removal procedure. Clean with an approved solution, rinse, dry, inspect, and reassemble. ESP Water recommends sleeve replacement every two years, sooner if damaged or persistently cloudy.
Why Does a UV Quartz Sleeve Need Cleaning?
The quartz sleeve is the clear protective tube around the UV lamp. It separates the lamp from the water while allowing UV light to pass through. Mineral buildup on the sleeve can reduce that transmission. The lamp produces UV light; the sleeve is a separate maintenance and replacement part.
Why Cleaning Matters
A glowing lamp needs a clear sleeve. Scale and mineral deposits can reduce the UV light reaching the water. Keep the sleeve clean and replace it on schedule.
What Do You Need Before Cleaning a Quartz Sleeve?
Find your UV system’s brand and model, then open its owner’s manual. Have clean gloves, a soft lint-free cloth, a separate drying cloth, a small pail, and the manufacturer-approved cleaning solution ready. Check whether replacement O-rings or seals are required.
Before Opening the UV Chamber
Disconnect power, shut off the upstream water supply, and release pressure through a downstream faucet before removing the lamp or sleeve. Ensure no closed valve prevents pressure release. Let the unit cool as instructed. Do not use water during service or illuminate the lamp outside its chamber.
Which Cleaner Can You Use on a UV Sleeve?
| Manufacturer | Cleaning guidance |
|---|---|
| VIQUA UV Systems | Use a soft cloth with CLR, vinegar, or another mild acid as specified in the VIQUA lamp and sleeve replacement instructions. Rinse thoroughly with clean water. |
| LUMINOR UV Systems | Use a soft, lint-free cloth with scale remover such as CLR or LIME-A-WAY, following the LUMINOR quartz sleeve cleaning instructions. Keep cleaning liquid out of the sleeve interior. |
Avoid abrasive pads or cloths that can scratch the quartz sleeve. Follow your model’s rinsing and drying instructions before reassembly.
These steps cover the cleaning workflow, not every model’s connector or retaining hardware. Use your manual for the exact removal sequence, O-ring placement, grounding connections, and reassembly. The video below demonstrates a LUMINOR BLACKCOMB system.
Identify the Sleeve Before You Start
The lamp sits inside the quartz sleeve. Handle both carefully with clean gloves. Keep track of seals, springs, and retaining parts as shown in your model’s diagram.
The connector and sleeve-retaining parts vary between VIQUA, LUMINOR, and other systems. Do not force a part that does not release as your manual describes.
How to Clean a UV Quartz Sleeve
-
Step 1: Isolate, depressurize, and cool the system
Disconnect power and close the upstream supply. Open a downstream faucet to relieve pressure, with no closed valve between it and the UV chamber. Allow the lamp and chamber to cool for the time in your manual before draining or handling them. Put a pail underneath for spills.
-
Step 2: Remove the UV lamp as your model directs
Wear clean gloves. Release the protective cover and connector using the model’s procedure, then carefully remove the lamp. Handle ground and strain-relief connections exactly as instructed; their removal and reconnection differ by model.
-
Step 3: Remove the quartz sleeve and seals
Release the retaining hardware and support the quartz while withdrawing it. Note the location of O-rings, springs, and other parts. Set the fragile sleeve on a clean, protected surface.
-
Step 4: Wipe away mineral buildup
Clean the sleeve’s outer surface with a soft lint-free cloth and the solution approved for your system. Follow the cleaning product’s directions. Avoid abrasive pads and keep cleaning liquid out of the sleeve interior.
-
Step 5: Rinse and dry
Rinse the cleaned surface thoroughly with clean water to remove cleaning agents. Dry it with a separate clean, lint-free cloth. Ensure the sleeve interior and electrical connection areas are dry before reassembly.
-
Step 6: Inspect the sleeve and O-rings
Look for remaining haze, scratches, or cracks. Replace quartz that cannot be cleaned clear or is damaged. Inspect seals and use the specified replacements and lubricant, if required by your manual.
-
Step 7: Reassemble with the correct seal positions
Center the sleeve, position O-rings and retaining parts as illustrated in your manual, and tighten only as directed. Reinstall the lamp, connector, protective cover, and any ground or strain-relief connections. Do not force or overtighten fragile quartz.
-
Step 8: Complete the leak check and restart procedure
Restore water and power in the sequence specified for your model. Check for leaks and normal controller status. Complete any required downstream plumbing disinfection before using the water. If a leak or fault remains, stop and resolve it before returning the system to service.
Manufacturer references: VIQUA pressure-release precautions, VIQUA maintenance and downstream cleaning procedure, and the LUMINOR BLACKCOMB rack manual. Select the instructions for your exact model.
How Often Should You Clean a UV Quartz Sleeve?
Clean the sleeve at least once a year, and sooner when deposits build up. Water with higher mineral content may require cleaning every 3–6 months. Follow the model’s maintenance guidance and keep a record of how quickly the sleeve fouls.
Recurring deposits are a reason to review water quality and pretreatment for your UV system, including any sediment prefilters. Sleeve cleaning, lamp replacement, and pretreatment maintenance are separate tasks.
When Should You Replace a UV Quartz Sleeve Instead of Cleaning It?
ESP Water recommends replacing quartz sleeves every two years. Replace sooner if the sleeve is scratched, cracked, or stays cloudy after cleaning. Continued buildup can reduce UV transmission; cleaning does not justify keeping a damaged or persistently fouled sleeve in service.
| Maintenance task | What to follow |
|---|---|
| Sleeve cleaning | At least annually; more often if buildup requires it. |
| Sleeve replacement | ESP Water recommends every two years, sooner if damaged or unable to clean clear. |
| UV lamp replacement | Follow the lamp’s rated schedule. Many are annual; some are 24 months. See UV lamp replacement guidance. |
How to Find the Correct Replacement Quartz Sleeve
Match the UV system’s manufacturer and model, or the specified sleeve part number. Quartz sleeves are not interchangeable just because they look similar. In the Replacement Part Finder, choose UV System, then your brand and model.
Check whether the sleeve includes O-rings, a sleeve bolt, or other hardware. Package contents vary; order the correct seals and UV accessories when required.
LUMINOR Quartz Sleeves
Browse replacement quartz sleeves for LUMINOR UV systems. Match your system model or sleeve part number before ordering.

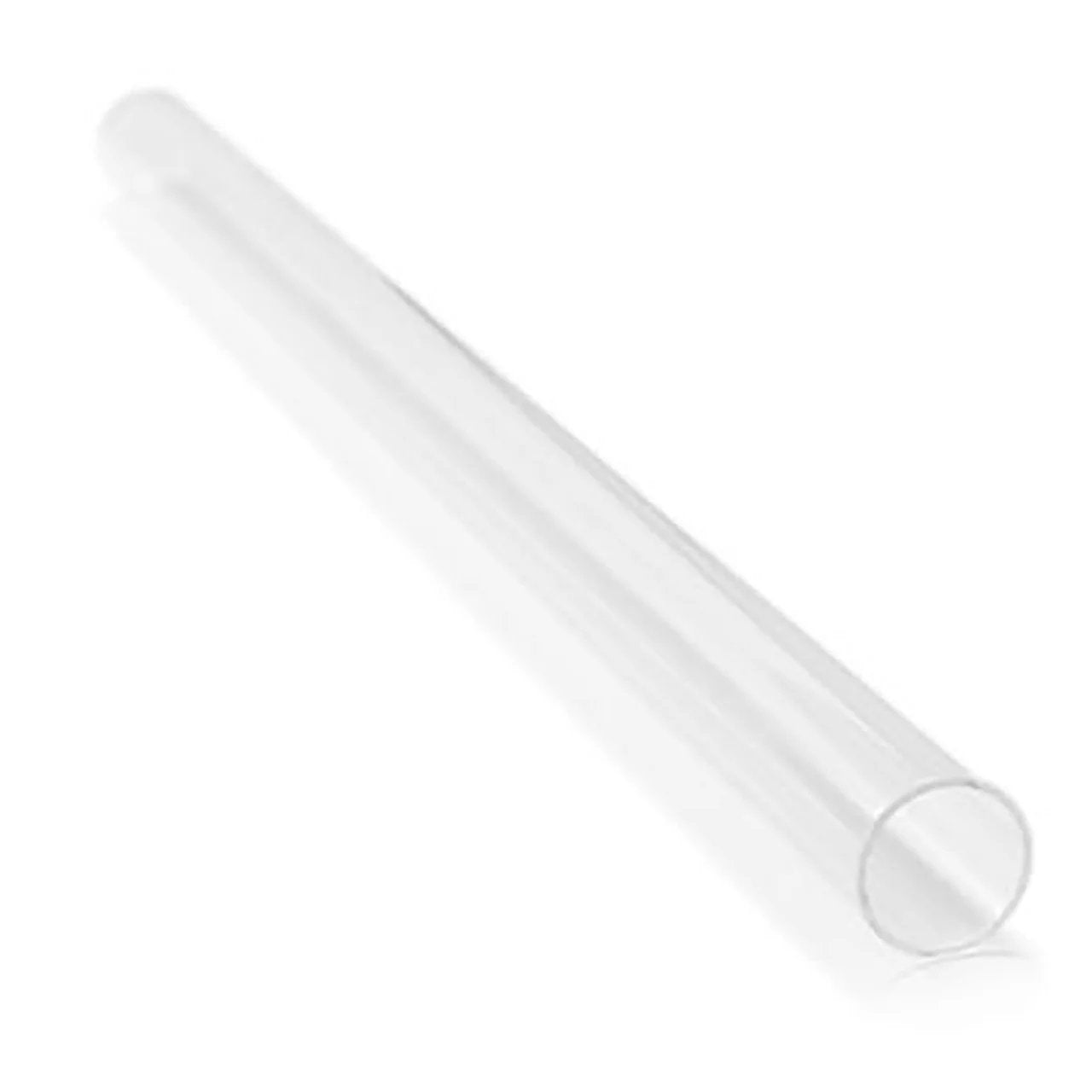

VIQUA Quartz Sleeves
Browse replacement quartz sleeves for VIQUA UV systems. Match your system model or sleeve part number before ordering.
Not Sure Which Quartz Sleeve Fits?
Choose UV System, then your manufacturer and model, to find the sleeves, lamps, and parts listed for your system. Match your system model or specified sleeve part number before ordering.
Cleaning a UV Quartz Sleeve FAQs
Can I use vinegar to clean a UV quartz sleeve?
Some VIQUA instructions permit vinegar. LUMINOR BLACKCOMB instructions specify a commercial scale remover. Use the cleaner approved for your exact model, follow its label, and rinse away cleaning agents before reassembly. Do not assume every acid or household cleaner is suitable.
How often should I clean my UV quartz sleeve?
Clean it at least annually, or more frequently when deposits build up. Some systems need cleaning every 3–6 months depending on the water. Inspect according to your model’s instructions; regular cleaning does not replace ESP Water’s two-year sleeve-replacement recommendation.
When should I replace a quartz sleeve instead of cleaning it?
ESP Water recommends replacing quartz sleeves every two years. Replace sooner if the sleeve is scratched, cracked, or remains cloudy after appropriate cleaning. Do not reinstall damaged quartz.
Do I need to replace the UV lamp when cleaning the sleeve?
Only if the lamp is due for replacement or requires replacement under the system instructions. Many residential lamps have a 12-month schedule, while some specify 24 months. Follow the exact lamp and model schedule; cleaning the sleeve does not renew the lamp’s UV output.
What if a low-UV alarm remains after cleaning?
Follow the model’s troubleshooting instructions. Sleeve fouling is only one possible cause; the lamp, sensor on monitored systems, and water quality may also need attention. Do not assume the water is adequately disinfected while a fault remains unresolved. Contact support if the cause is unclear.
How do I replace a quartz sleeve in a UV system?
Complete the shutdown and pressure-release procedure, then remove the lamp, sleeve, and seals according to your manual. Install the specified replacement sleeve and correct seals without forcing the quartz. Reassemble and complete the required leak check and restart procedure before returning the system to service.
