Ultraviolet System
LUMINOR BLACKCOMB 5.1 (LBH5-Z222) 15 GPM UV Replacement Lamp & Sleeve

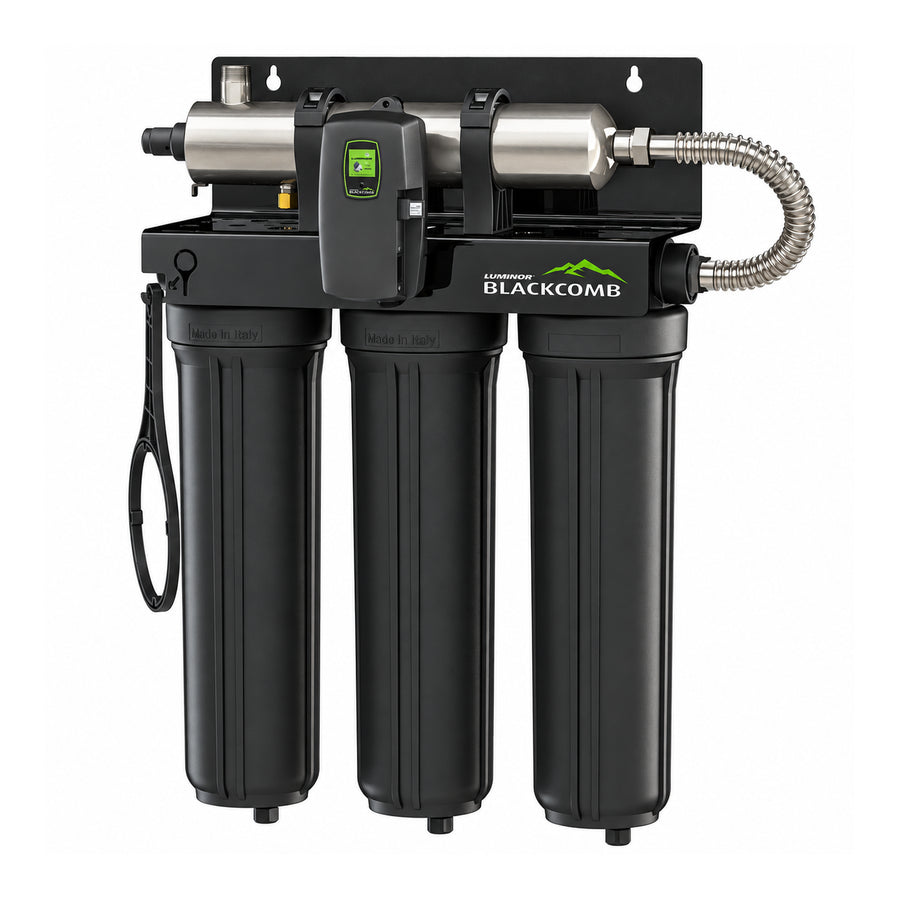

The LUMINOR LBH5-Z222 combines Blackcomb-HO 5.1 UV disinfection with three 20-inch filter stages (LC-20S 5-micron sediment, LC-20WS scale reduction and LC-20AC carbon) in one rack-mounted whole-home assembly rated at 15 GPM (30 mJ/cm² at 95% UVT).
Replacement Filter Info
Lamp (RL-420HO) - Replace every 12 months
Quartz Sleeve (RQ-420) - Replace every 24 months or as needed, and clean whenever lamp is replaced
Lamp/Sleeve Combo Kit (RLQ-420HO)
Sediment Filter (LC-20S) - 5-micron sediment cartridge; check and replace as needed at the controller 6-month maintenance reminder
Scale Reduction Filter (LC-20WS) - Check and replace as needed at the controller 6-month maintenance reminder
Carbon Filter (LC-20AC) - High-capacity carbon cartridge; replace every 6 months
