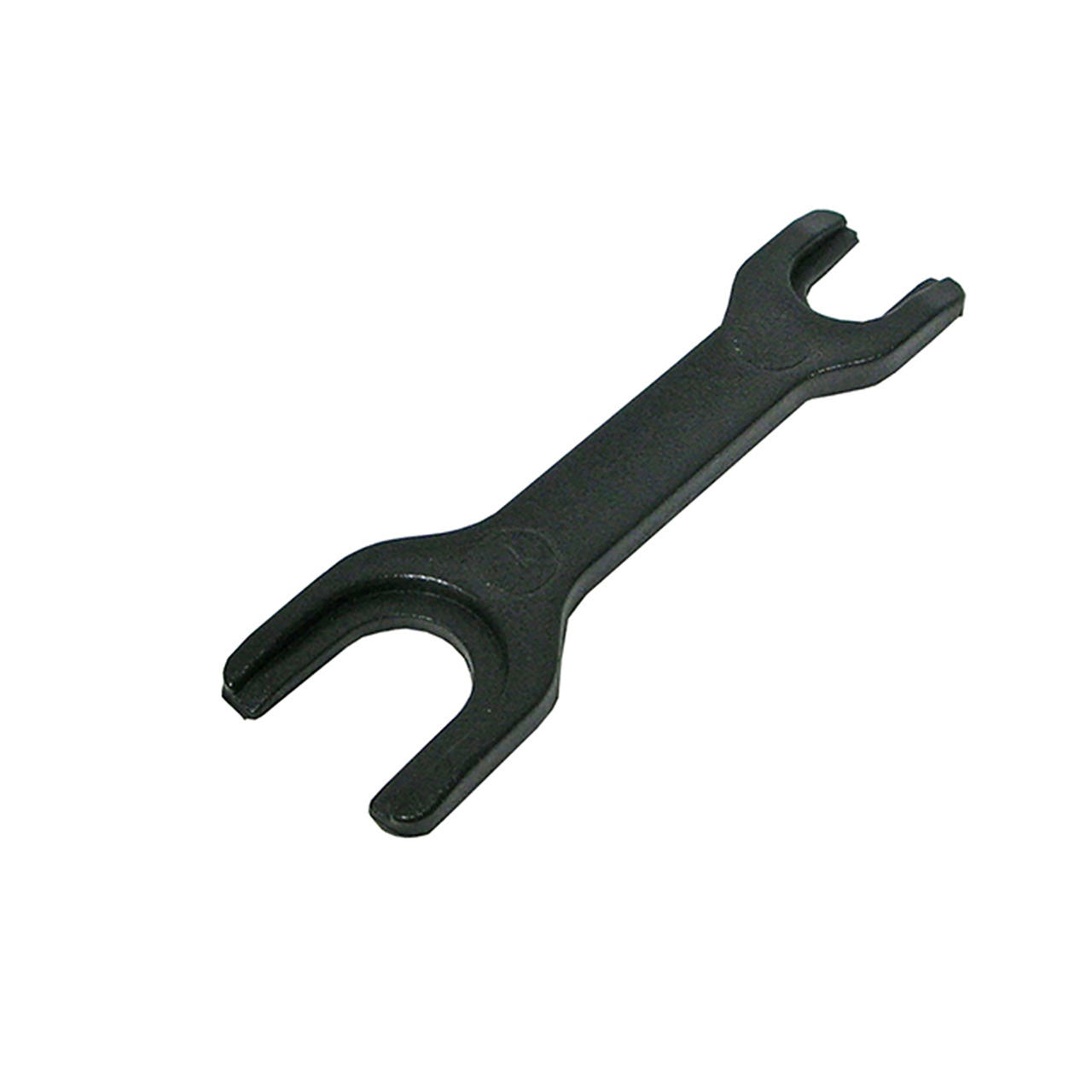

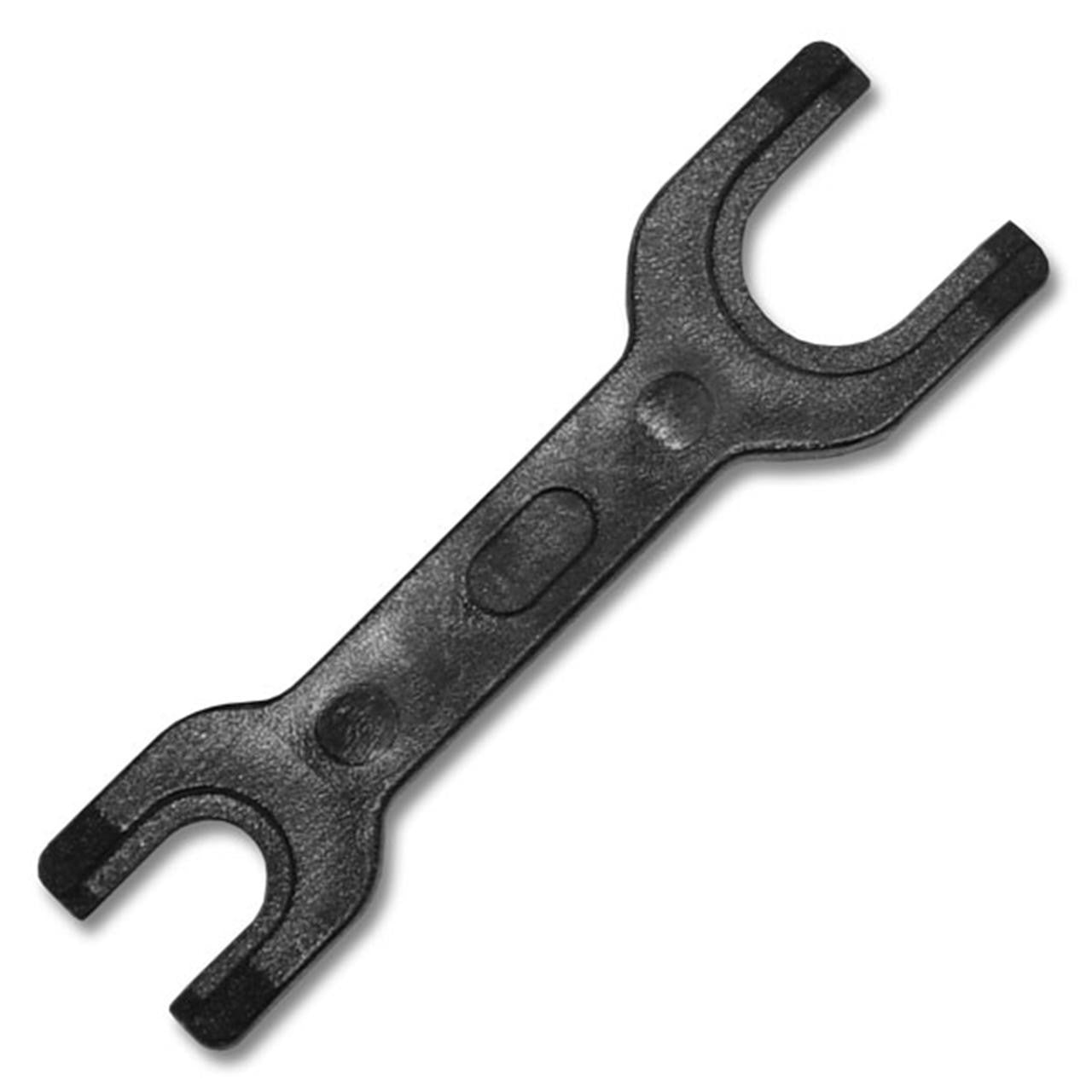

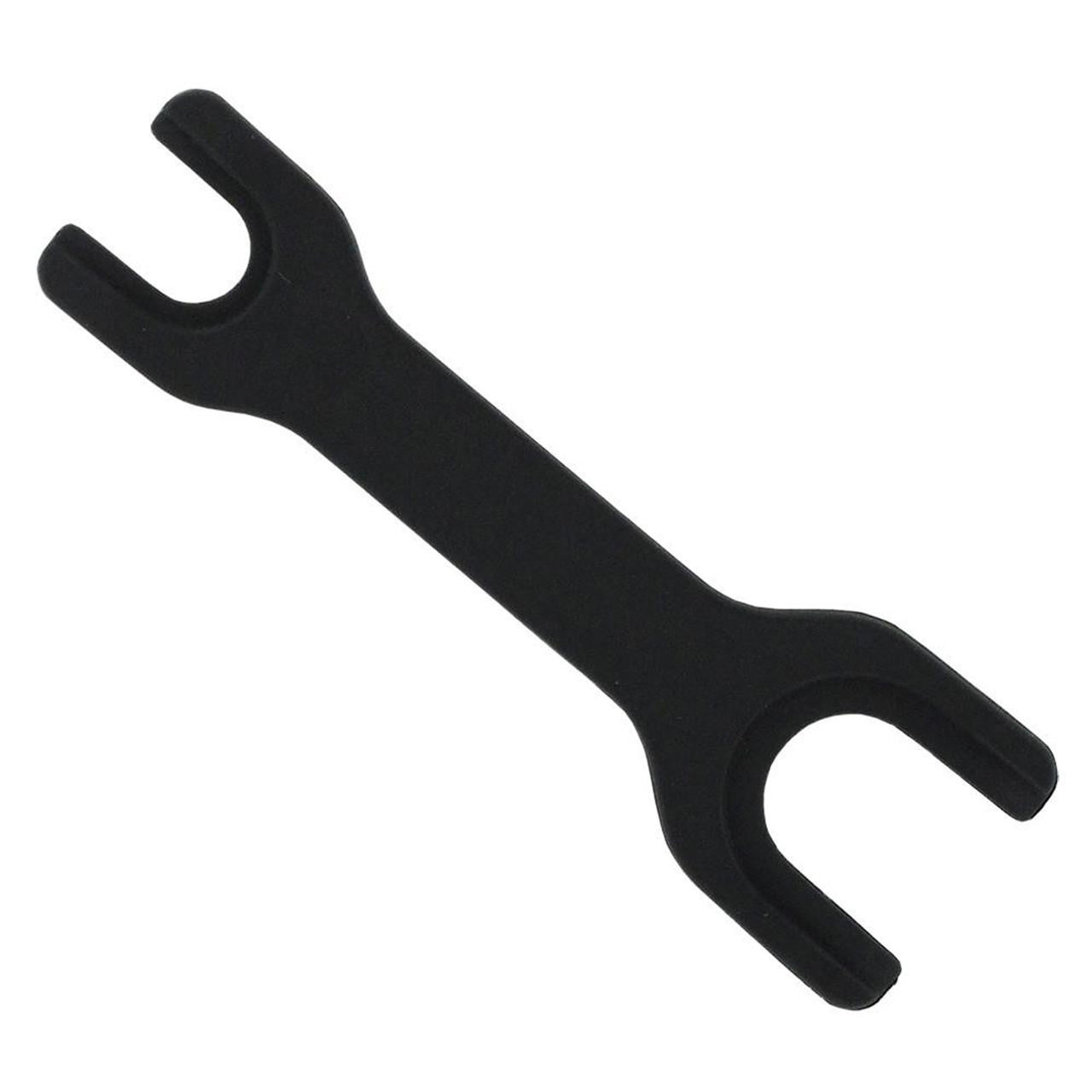

John Guest PI-TOOL Release Tool for Quick Connect Collet 1/4" and 3/8"
Q&As
John Guest PI-TOOL Release Tool for Quick Connect Collet 1/4" and 3/8"
Q&As
Part Number:
PI-TOOL
Alt Part Number:
TSPITOOL
TSPI-TOOL
Quick connect release tool allows easy removal of 1/4 inch and 3/8 inch tubing without damage.
Read More
IN STOCK
Description
John Guest Quick Connect Tubing Release tool. The PI-TOOL features a 1/4" end and a 3/8" end to more easily release the tubing from either 1/4" or 3/8" fittings and valves and the secure John Guest collet. The PI-TOOL is not required to release the quick connect fittings but they can greatly ease the tubing release. The PI-TOOL measures 3" x 1".
Overall rating: 5.0 / 5 from 2 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
A+
"A+"
Quick Connect Tool
"Great tool for those of you with big ham hands like myself. Worked perfectly and save me much frustration!"
Q&A
Q:
What fitting sizes does the John Guest PI-TOOL release?
A:
It has ends shaped for 1/4-inch and 3/8-inch quick-connect collets.
Q:
Is the PI-TOOL required to disconnect tubing?
A:
No, but it presses the collet evenly and can make release easier in tight spaces.
Q:
How do I use it?
A:
Shut off water and relieve pressure, remove any locking clip, push the fitting collet inward with the correct end of the tool, and pull the tube straight out.
Q:
Can it release tubing while the line is pressurized?
A:
Do not attempt that. Isolate the water supply and relieve pressure before disconnecting a fitting.
Q:
Will the tool repair a damaged collet?
A:
No. Replace a fitting if the collet, O-ring, body, or tubing-grip teeth are damaged.
Q:
What tubing should be checked before reconnection?
A:
Inspect for scratches, distortion, or tooth marks; cut the tube square behind damaged material before reinserting it fully.
