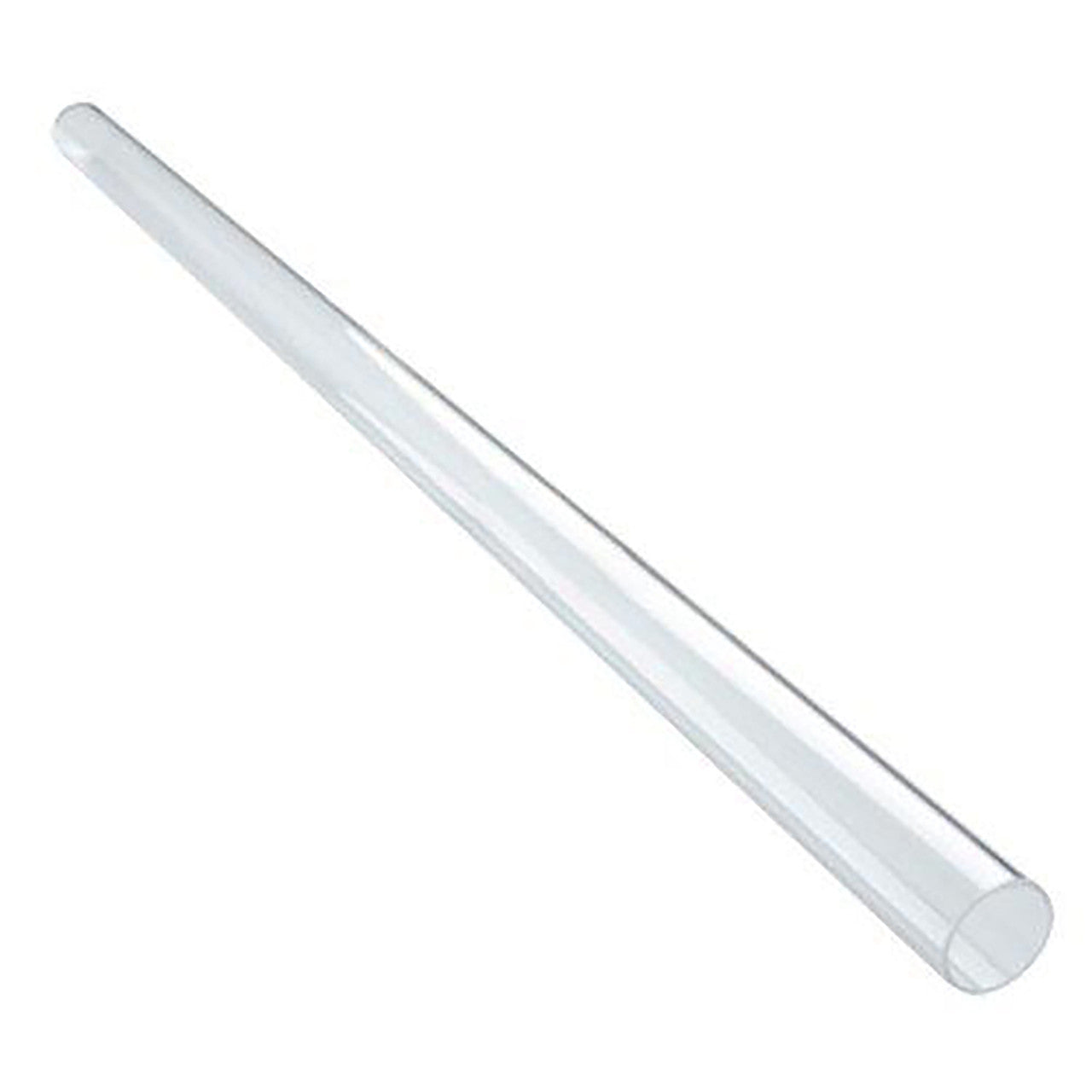

VIQUA QSO-600 UV Quartz Sleeve for VP600 and VP600M
VIQUA QSO-600 UV Quartz Sleeve for VP600 and VP600M
Description
Replacement sleeve for VIQUA VP600 and VP600M Model systems. The quartz sleeve keeps the UV lamp from shorting out and maintains the lamp's ideal operating temperature of 104 Degrees Fahrenheit. Mineral build-up hinders the lamp's effectiveness.
- Length: 28.82"
- Replace every 24 months or as needed
Q:
What is the QSO-600 quartz sleeve compatible with?
A:
The QSO-600 is a genuine VIQUA replacement quartz sleeve specifically designed for the VIQUA VP600 and VP600M Professional UV water disinfection systems. It is a double open-ended (DOE) sleeve that surrounds and protects the UV lamp.
Q:
How often should I replace the QSO-600 quartz sleeve?
A:
The QSO-600 quartz sleeve should be replaced every 24 months (2 years) or as needed. However, if the sleeve becomes cracked, chipped, or remains cloudy after cleaning, it should be replaced immediately regardless of age. Regular cleaning is recommended, but after 2-3 years the mineral buildup may become permanent and the sleeve will need replacement. More details at https://espwaterproducts.com/pages/how-to-clean-a-uv-sleeve
Q:
How do I clean the QSO-600 quartz sleeve?
A:
To clean the QSO-600 sleeve: 1) Turn off power and water supply, depressurize the system, and let it cool for 5-10 minutes. 2) Remove the safety cap, lamp plug, UV lamp, and then the quartz sleeve. 3) Wear clean gloves and wipe the sleeve with a soft, lint-free cloth soaked in white vinegar, CLR, or a mild citric acid solution. 4) Rinse thoroughly with clean water and dry completely. 5) Reinstall with new o-rings. Clean at least once every 12 months or when replacing the UV lamp. Learn more at https://espwaterproducts.com/pages/how-to-clean-a-uv-sleeve
Q:
What are the specifications and dimensions of the QSO-600?
A:
The QSO-600 quartz sleeve has the following specifications: Length: 28.82 inches (732mm), External diameter: 23mm, Type: Double open-ended (DOE) sleeve, Material: 100% fused silica quartz with high UV-C transmittance. It comes with 2 o-rings and maintains the UV lamp's ideal operating temperature.
Q:
How much does the QSO-600 quartz sleeve cost?
A:
The QSO-600 quartz sleeve typically retails for around $83-98 USD. Prices may vary by retailer. The sleeve comes with two replacement o-rings included.
Q:
What is the purpose of the quartz sleeve in UV systems?
A:
The QSO-600 quartz sleeve serves multiple critical functions: 1) Protects the UV lamp from direct water contact, preventing electrical shorting. 2) Maintains the lamp's optimal operating temperature of 104°F for maximum UV output. 3) Transmits UV-C light from the lamp to the water for effective disinfection. The high-quality fused silica quartz allows maximum UV light transmittance while keeping the lamp isolated from water and debris. Without a clean, intact sleeve, the UV system cannot effectively disinfect water.
Q:
Why should I use genuine VIQUA QSO-600 sleeves instead of aftermarket alternatives?
A:
VIQUA strongly recommends using only genuine QSO-600 sleeves because aftermarket replicas may not meet quality standards. Testing has shown that many non-genuine sleeves do not allow safe UV dosage to pass through and may fail prematurely. Only genuine VIQUA sleeves are made from 100% fused silica with verified high UV transmittance, are tested for proper fit and performance, maintain system certifications and warranty coverage, and undergo quality control inspection. Using non-genuine parts can compromise water safety and void your system warranty. Purchase genuine parts at https://espwaterproducts.com/
Q:
How do I know when the QSO-600 sleeve needs to be replaced?
A:
Replace the QSO-600 sleeve when you notice: 1) Visible cracks, chips, or breakage (even small damage requires immediate replacement). 2) Cloudy or white film that persists after thorough cleaning with acid solutions. 3) Scratches, pitting, or etching on the sleeve surface. 4) The sleeve has been in use for 24-36 months. 5) Drop in UV intensity readings (if your system has monitoring). 6) The sleeve remains stained or discolored after cleaning attempts. If any of these conditions exist, the sleeve cannot properly transmit UV light and must be replaced for safe water disinfection.
Q:
Can I install the QSO-600 quartz sleeve myself?
A:
Yes, the QSO-600 sleeve can be installed by homeowners following proper procedures. The installation process involves: 1) Shutting off water supply and power to the UV system. 2) Depressurizing the system and allowing it to cool. 3) Removing the safety cap, lamp plug, and UV lamp while wearing clean gloves. 4) Carefully removing the old sleeve and o-rings. 5) Installing new o-rings on the new sleeve. 6) Inserting the new sleeve and reassembling components in reverse order. Always handle the sleeve with clean gloves to avoid oils from your skin.
Q:
What other replacement parts should I have on hand for my VP600/VP600M system?
A:
Essential replacement parts for VP600/VP600M systems include: 1) UV Lamp (S600RL-HO) - replace every 12 months. 2) Quartz Sleeve (QSO-600) - replace every 24 months. 3) Replacement O-rings (410867) - replace annually or when installing new sleeve/lamp. 4) Lamp & Sleeve Combo Kit (QL-600) - convenient bundle for annual maintenance. It's recommended to keep a spare quartz sleeve on hand since the glass is fragile and can break during maintenance. Browse all VP600 replacement parts at https://espwaterproducts.com/collections/viqua-vp600-24-gpm
