Replacement quartz sleeve protects UV lamp and ensures proper operation in ATS EV and GDS series systems.
Read More
Subscription Details
Automatic deliveries and charges at your selected frequency. Skip, reschedule, or cancel through your subscription account. View subscription details.
IN STOCK
Description

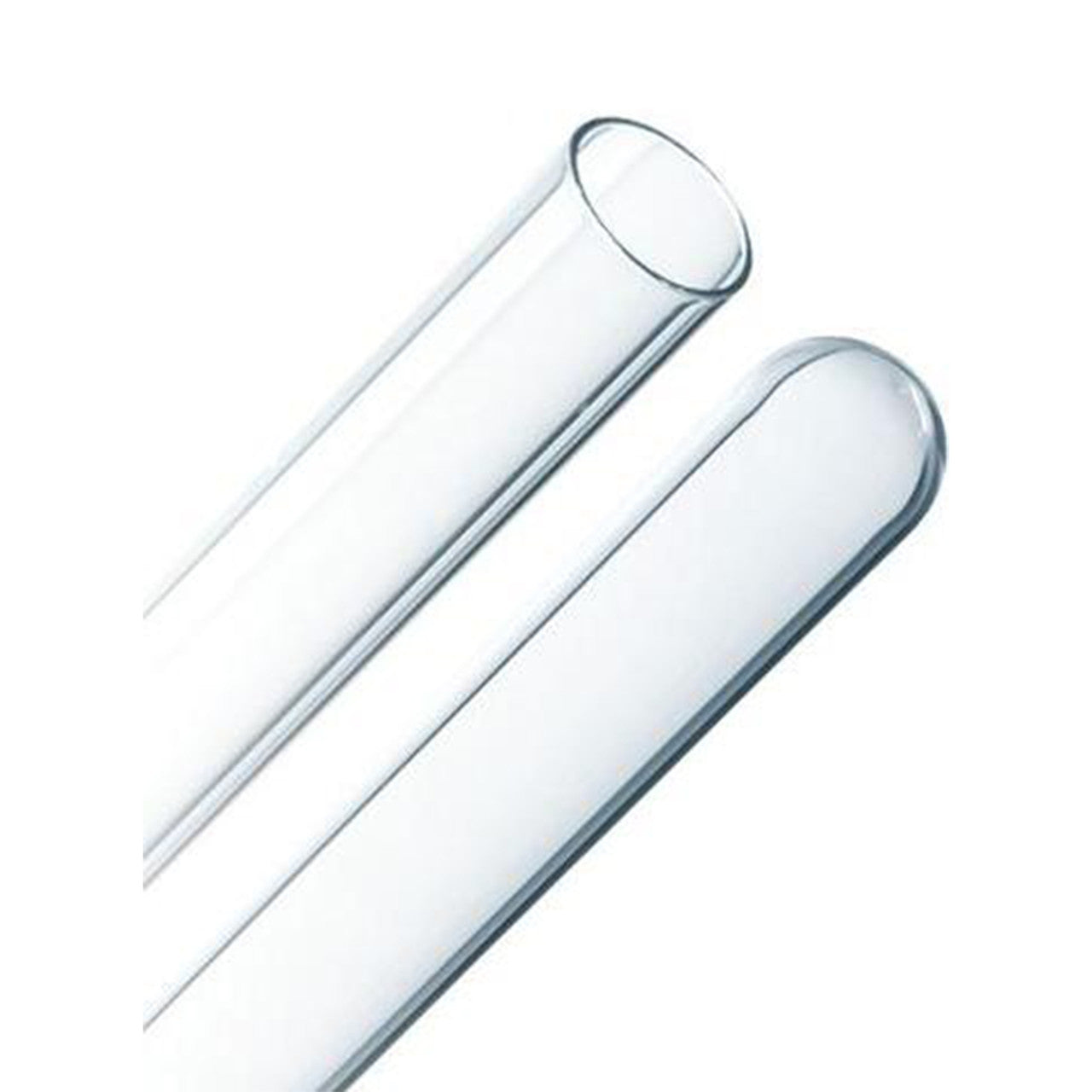

Replacement quartz sleeve for the Aqua Treatment Services (ATS) EV-8E, GDS-8, SL-8V UV systems and other generic UV systems. The 15-0401 quartz sleeve is closed on one end with an outside diameter of 24.5mm and a length of 476mm (18.75 inches). The quartz sleeve keeps the UV lamp from shorting out and maintains the lamp's ideal operating temperature of 104 Degrees Fahrenheit. Mineral build-up hinders the lamp's effectiveness.
Specs
- Replace every 24 months or as needed
- Closed on one end
- Length: 18.75"/476mm
- Inside Diameter: 22mm
- Outside Diameter: 24.5mm
Features
Overall rating: 4.85 / 5 from 20 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["shipping","order","service","sleeve","process","replacement","issues"].
Review highlights
Reviews
Emergency help
"Needed emergency help with a water treatment part, and ESP delivered! Great service!"
Excellent customer service
"My order was processed quickly and professionally and I received it the next day as scheduled. Thank you!"
15-0401 Quartz sleeve
"Easily installed and working as it should"
Perfect for my Water System
"Excellent replacement for regular system maintenance"
"Wrong part. Customer service was great (second wrong tube sent). They put me directly in touch with Aquasana and the correct part shipped out. Easy return process."
Excellent service
"I’ve been sourcing both the sleeve and the companion bulb from ESP since approximately 2019. The process is very seamless and the one time that the items were damaged in transit, replacements were expedited and received in 48 hours - no questions asked. You can’t ask for better than that. These guys are good."
Thank You
"Thank You"
Works great
"The sleeve we purchased had worked well. Haven’t had any issues with anything we have bought. Would recommend this company."
Straightforward
"I recall that my purchase was simple and straightforward. No problems."
Perfect
"We've been ordering from here for 4years now and we've had no problems , the shipping is super quick and everything is safely wrapped."
Q&A
Q:
Which UV systems use the 15-0401 UV quartz sleeve?
A:
The catalog lists EV-8E, ATS EV-8E, ATS GDS-8, ATS PFC-8, ATS SL-8V. Check the exact model or part number on the existing equipment before ordering 15-0401 UV quartz sleeve.
Q:
What does the quartz sleeve do?
A:
It keeps the UV lamp isolated from the water and helps the lamp operate at the intended temperature while allowing UV energy to pass into the chamber.
Q:
When should the 15-0401 UV quartz sleeve be replaced?
A:
Replace it if it is cracked, chipped, clouded, etched, or cannot be restored during routine maintenance. Many owners replace a sleeve about every 24 months, depending on water conditions and the system manual.
Q:
Can mineral deposits be removed instead of replacing the sleeve?
A:
Light mineral film can often be removed with a manufacturer-approved scale remover such as CLR or Lime-A-Way. Rinse thoroughly and let the sleeve dry before reassembly; replace it if deposits or clouding remain. The sleeve is closed at one end, approximately 24.5 mm OD, and about 476 mm long.
Q:
Should the sleeve O-rings be inspected during service?
A:
Yes. Replace seals that are cut, flattened, stretched, or brittle, and apply only a light coating of food-grade silicone lubricant if the manual calls for it.
Q:
What installation mistakes can damage a quartz sleeve?
A:
Uneven retaining-nut pressure, pinched seals, grit on sealing surfaces, and forcing the sleeve can cause cracks or leaks. Shut off water and power, relieve pressure, and handle the sleeve with clean gloves.
