VIQUA VP600 UV System 24 GPM 1" MNPT
VIQUA VP600 UV System 24 GPM 1" MNPT
Description

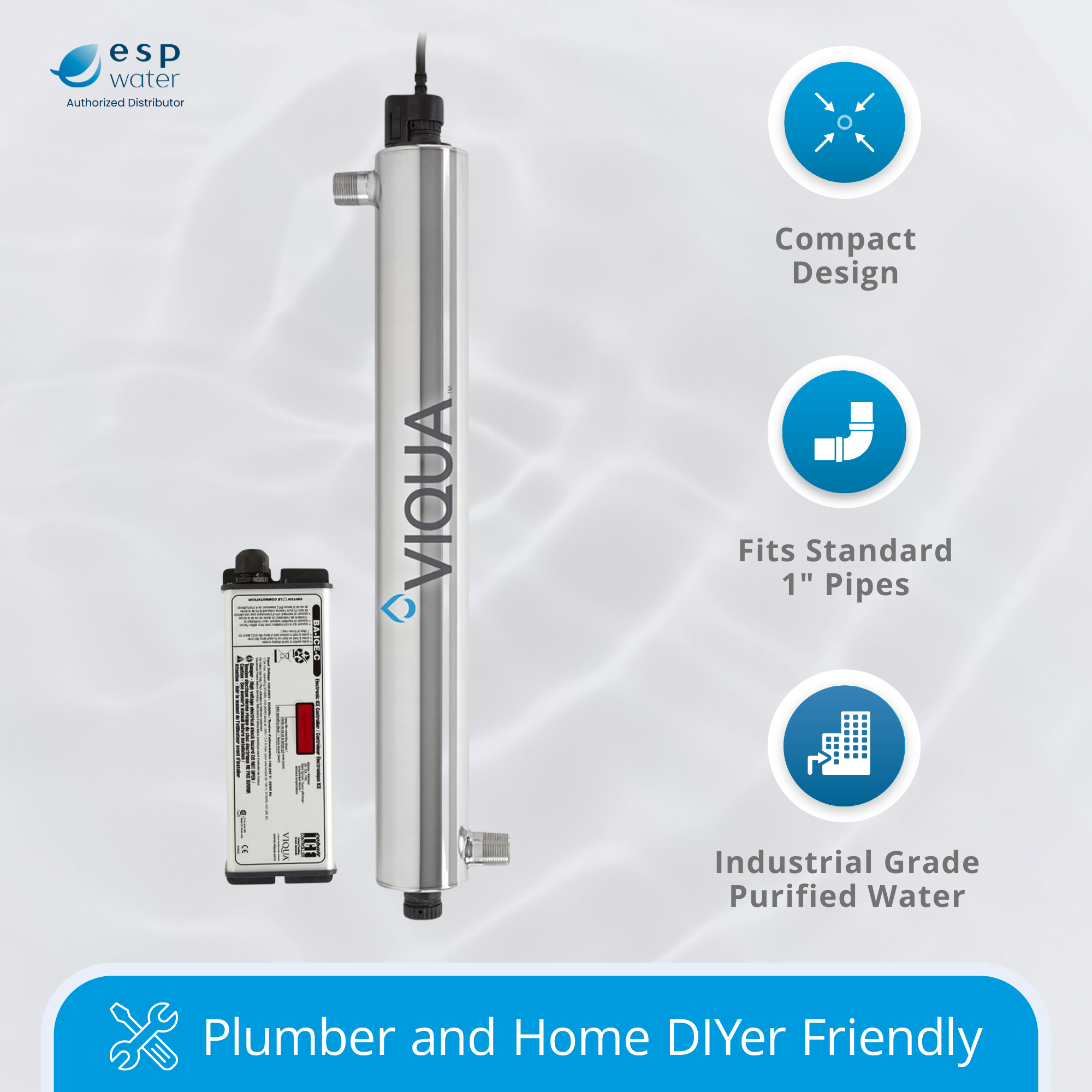

As part of the VIQUA Professional Series, the Commercial VIQUA VP600 system treats water at 24 GPM for outstanding treatment performance. This compact UV system provides economical and reliable UV treatment for commercial applications such as restaurants, hotels, day cares, schools, and more. Capable of 100-240V, 50-60Hz.
To request international electrical plug types “F” (Europe), “G” (UK), and “I” (Australia) be included with your system at no charge, please email customer support, after ordering.
- Flow Rate: 24 Gallons Per Minute
- Application: Point-of-Entry
- Power: 100-240V 50-60Hz 70W N. American Plug
- Overall Dimensions: 30.75" x 3.5"
- Inlet Dimensions: 1" MPT
- Outlet Dimensions: 1" MPT
Replacements & Add Ons
Helpful Info & Downloads
Q:
What flow rate is the VIQUA VP600 designed for?
A:
It is rated for up to 24 GPM under the manufacturer’s specified conditions. Size the system to peak simultaneous flow, not average daily use.
Q:
What plumbing and power does it require?
A:
It uses 1-inch male NPT connections and operates from 100–240 V, 50–60 Hz power unless the selected configuration states otherwise. Confirm bypass, drainage, and service clearance.
Q:
Does the VIQUA VP600 include UV output monitoring?
A:
No. The standard VP600 does not include the M-model UV sensor.
Q:
Where should the system be installed?
A:
Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and any other upstream treatment needed to keep water conditions within specification.
Q:
What routine maintenance is required?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Respond to controller alarms rather than relying on visible lamp glow.
Q:
Which service parts should I plan for?
A:
Plan for the S600RL-HO lamp, QSO-600 sleeve or QL-600 kit, seals, and controller service parts.
