Description
VIQUA Model VP600M is an economical and reliable water treatment system, perfect for a wide range of commercial applications, including restaurants, hotels, schools, dairy, livestock, and more.
This ultraviolet system includes all the features of the VIQUA VP600 UV UV water treatment system, PLUS an advanced UV sensor for enhanced system performance tracking.
As part of the Professional Series, the VP600M offers outstanding UV treatment performance at flow rates up to 24 gpm for continuous water treatment and superior performance.
Capable of 100-240V, 50-60Hz.
Easy to install and maintain.
No risk: 10-yr warranty on VIQUA chamber, 3-yr warranty on hardware and electrical, and 1-yr warranty on VIQUA lamps, sleeves & sensor
Benefits:
✓ Quality Build: Manufactured with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation.
✓ Space Efficient: High UV output lamp technology allows for a smaller footprint, while providing the same UV performance as a longer chamber
✓ Convenient: the system not only features a countdown timer with digital display, but also an audible lamp change reminder for ease of maintenance
✓ Easy Lamp Change: No tools required, and the water doesn't even need to be shut off
To request international electrical plug types “F” (Europe), “G” (UK), and “I” (Australia) be included with your system at no charge, please email customer support, after ordering.

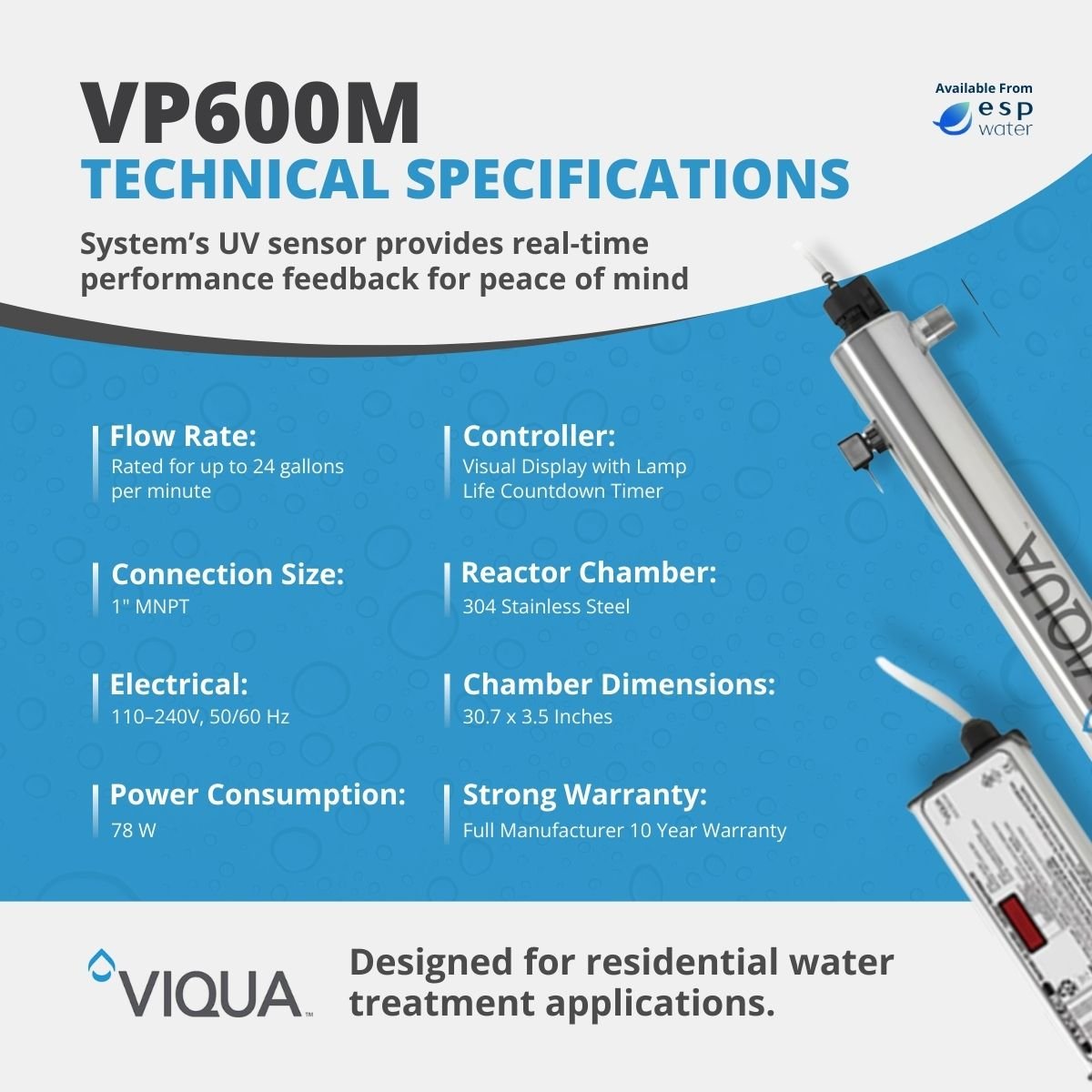

- Flow Rate: 24 Gallons Per Minute
- Application: Point-of-Entry
- Power: 100-240V 50-60Hz 70W N. American Plug
- Overall Dimensions: 30.75" x 3.5"
- Inlet Dimensions: 1" MPT
- Outlet Dimensions: 1" MPT
Replacements & Add Ons
Helpful Info & Downloads
Q:
What flow rate is the VIQUA VP600M designed for?
A:
It is rated for up to 24 GPM under the manufacturer’s specified conditions. Size the system to peak simultaneous flow, not average daily use.
Q:
What plumbing and power does it require?
A:
It uses 1-inch male NPT connections and operates from 100–240 V, 50–60 Hz power unless the selected configuration states otherwise. Confirm bypass, drainage, and service clearance.
Q:
Does the VIQUA VP600M include UV output monitoring?
A:
Yes. The M model includes a UV sensor for continuous output monitoring.
Q:

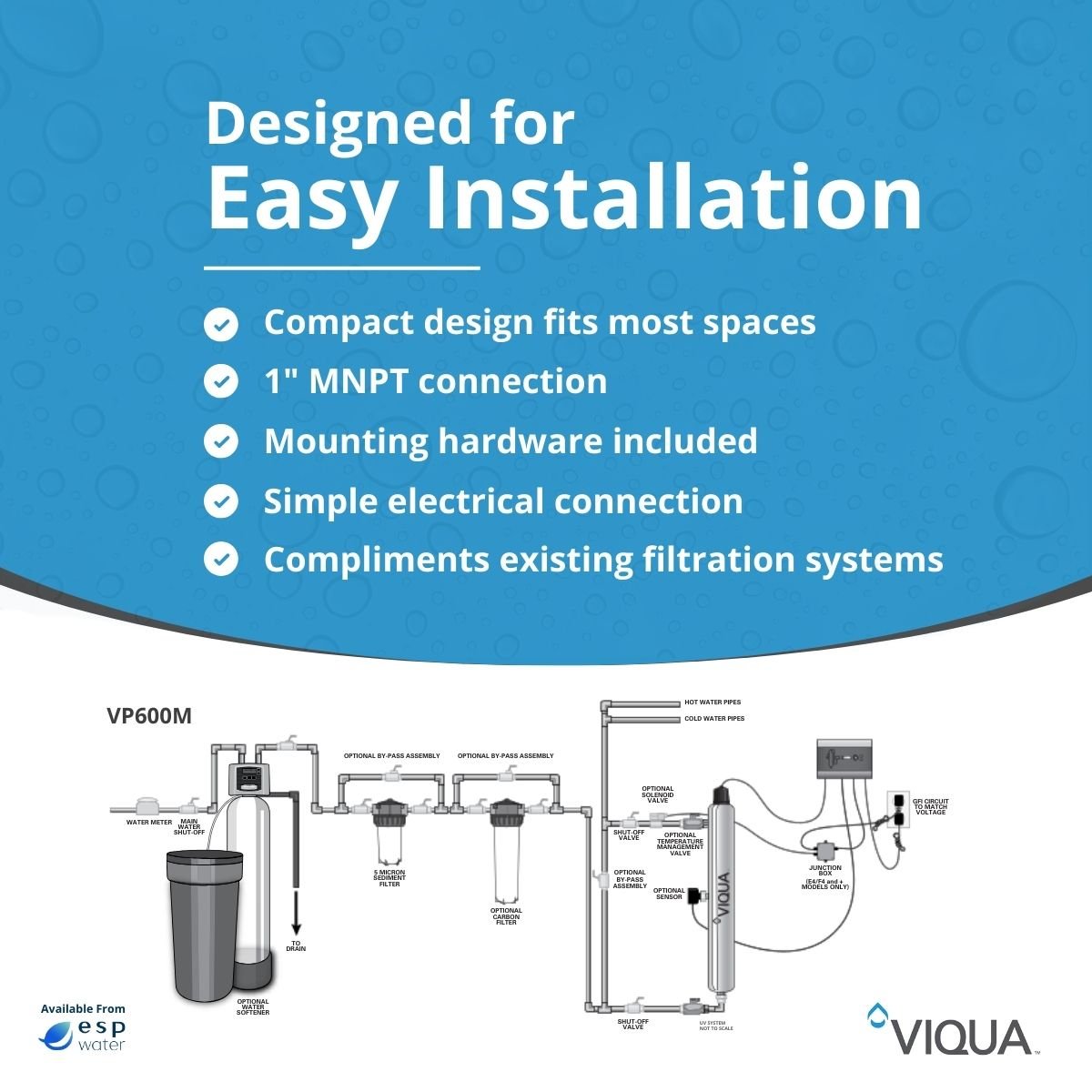

Where should the system be installed?
A:
Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and any other upstream treatment needed to keep water conditions within specification.
Q:
What routine maintenance is required?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Respond to controller alarms rather than relying on visible lamp glow.
Q:
Which service parts should I plan for?
A:
Plan for the S600RL-HO lamp, QSO-600 sleeve or QL-600 kit, seals, 254NM-C1 sensor, and controller parts.
