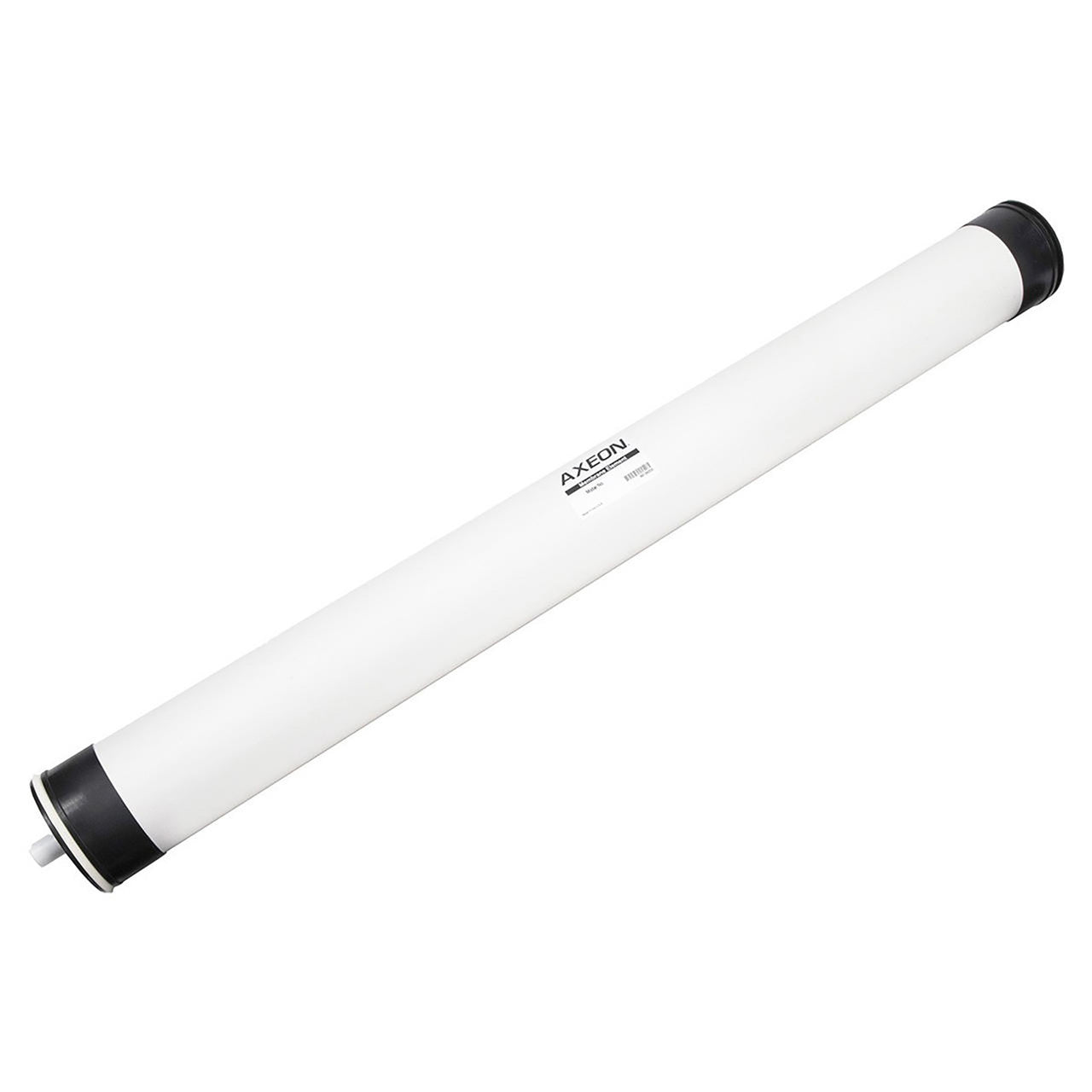

AXEON HF4-4040 RO Membrane 2500 GPD 100 PSI Extra Low Energy 4" x 40" - 200391

The AXEON HF4-4040, part number 200391, is a 4" x 40" extra-low-energy reverse osmosis element that produces up to 2,500 gallons per day at just 100 PSI of applied pressure. It's the drop-in replacement for standard 4040 commercial RO systems where you want full output without running a high-pressure pump.

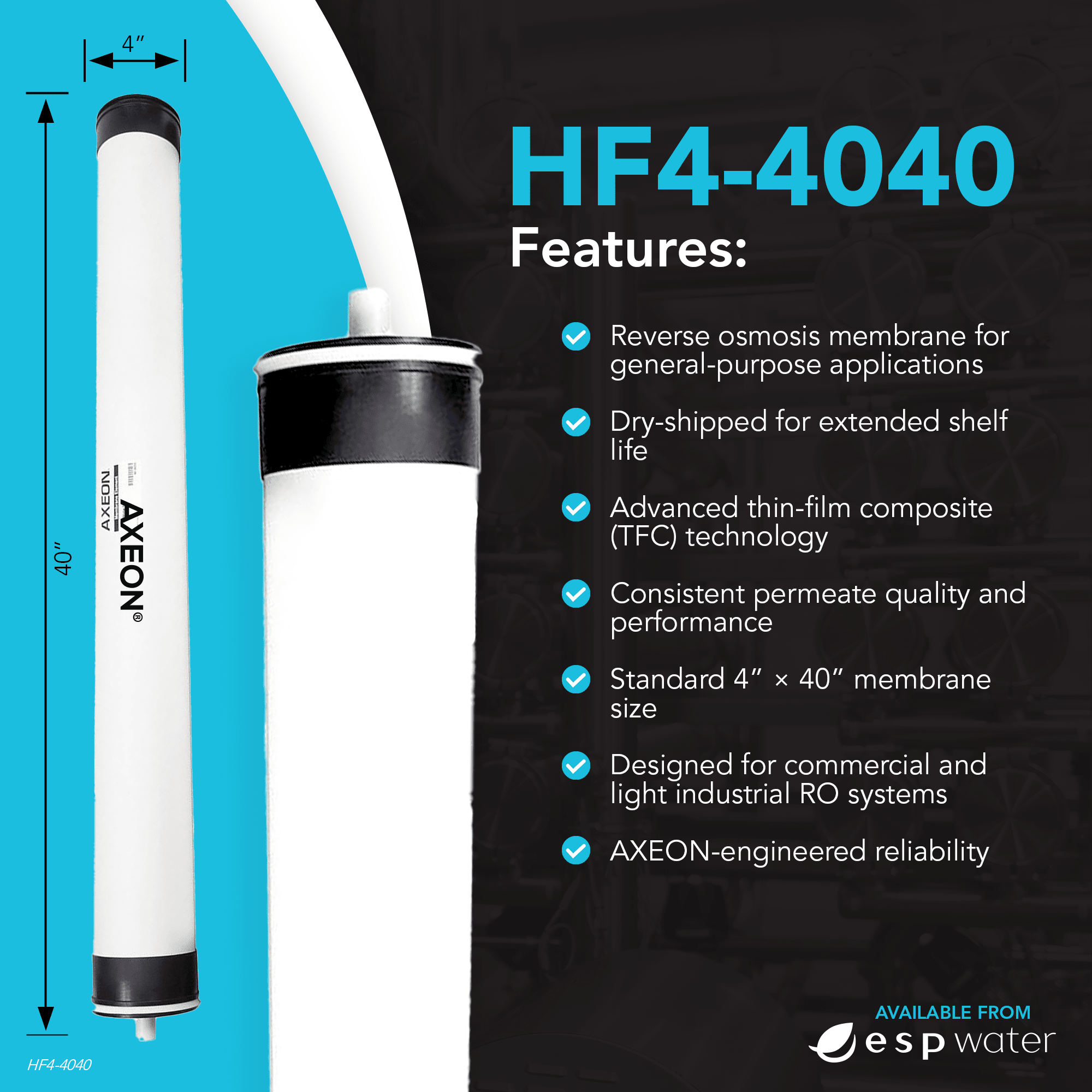

At a glance

• Output: 2,500 GPD at 100 PSI
• Salt rejection: 99% nominal (96% minimum)
• Size: 4" x 40" — fits nominal 4.00" I.D. housings
• Membrane: Polyamide thin-film composite, spiral wound
• Shipped: Dry — indefinite shelf life
• Part numbers: AXEON 200391 / HF4-4040

Why 100 PSI matters

Most 4040 elements need 150–225 PSI to hit their rated flow. The HF4 hits 2,500 GPD at 100 PSI, which means a smaller booster pump, less electricity per gallon produced, and less standing pressure on your fittings, housings, and tubing. If you're currently running an HF1-4040 (200379, 150 PSI) or HR3-4040 (200373, 225 PSI), the HF4 is the direct energy-savings upgrade at the same footprint.

What systems does the HF4-4040 fit?

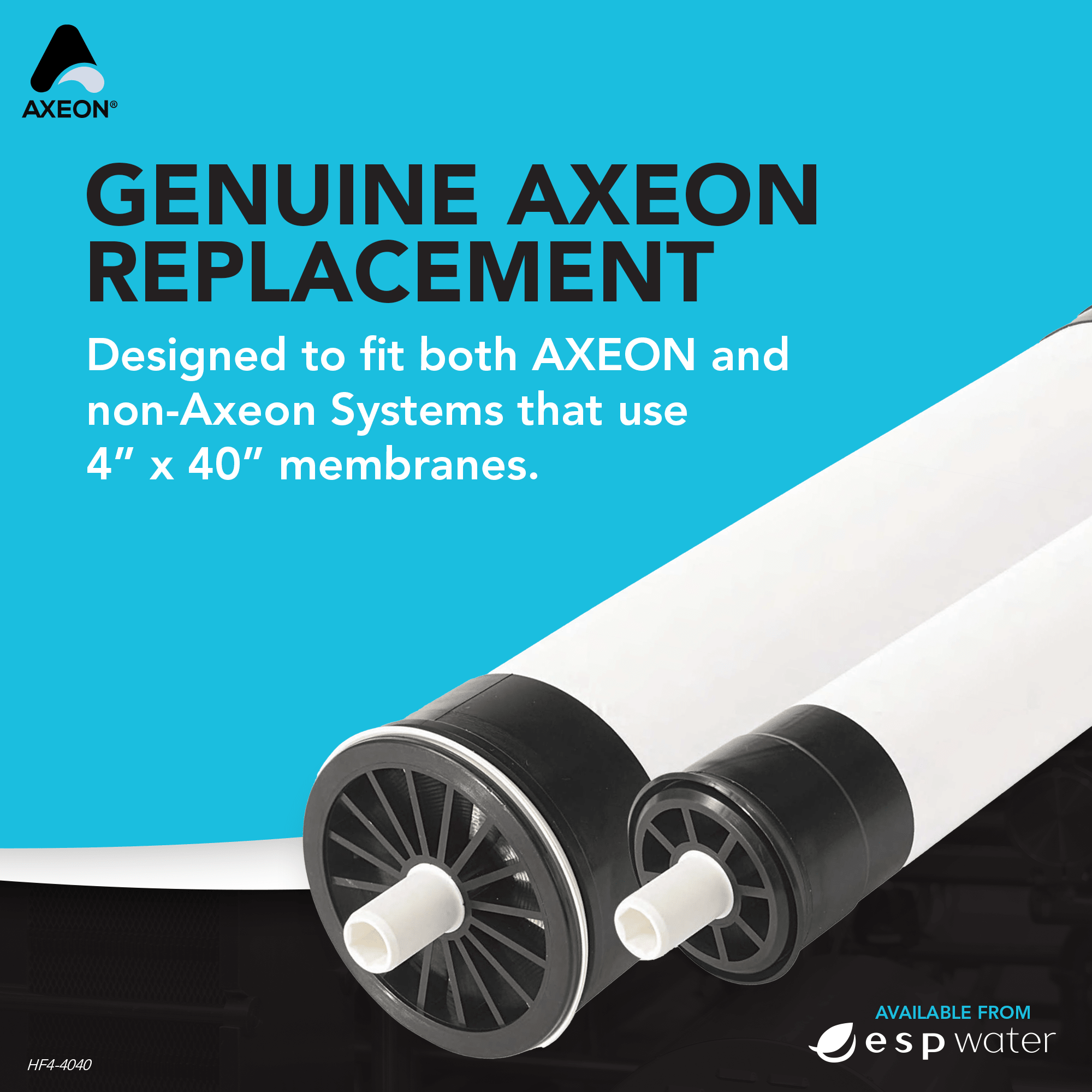

The HF4-4040 is a standard 4" x 40" element with a 0.75" male product tube, so it fits any nominal 4.00" I.D. membrane housing — PVC, stainless, or FRP. If your system takes a 4040 membrane, this one fits.

It's commonly used in AXEON commercial and light commercial RO systems built around 4040 housings, including the BT-1800 (1,800 GPD), the CT-4000, CT-5000, and CT-7000 (4,000 to 7,000 GPD), the JT-2000 and JT-4000 (2,000 and 4,000 GPD), and the N-Series including the N-2000 — along with most OEM and third-party commercial systems that use 4040 elements.

Replaces these 100 PSI extra low energy elements: XLE-4040 (DuPont / DOW FilmTec), TMH10A (Toray), and comparable XLE-class 4040 membranes.

Upgrading from a higher-pressure element? The HF4-4040 produces the same 2,500 GPD as the AXEON HF1-40
