Flexwave Composite FWRO80 RO Pressure Tank 80 Gal 1-1/4" NPT
Flexwave Composite FWRO80 RO Pressure Tank 80 Gal 1-1/4" NPT
Description
Flexwave Composite RO Pressure tanks are high performance tanks for residential and light commercial RO applications. The Flexwave tanks feature a continuous wound fiberglass and epoxy resin outer shell and a seamless spinwelded inner shell. Other features include a 25-year rated CAD-2 Water Chamber with a 100% butyl rubber diaphragm and anti-microbial polypropylene lower chamber, a NPT male thread made of rigid PVC, and an air valve made of brass with a rubber O-ring seal. All Flexcon Flexwave RO tanks are pressure tested and come with a 5-year limited warranty. Buy a Flexwave Composite Pressure tank with confidence for your home or light commercial applications. The FWRO80 is a 80 gallon tank that is WQA-NSF/ANSI 61 certified, is 51.8 inches in height, and weighs 65 pounds when empty.
- Total Volume: 80 Gallons
- Holding Capacity @ 10psi: 53.6 Gallons

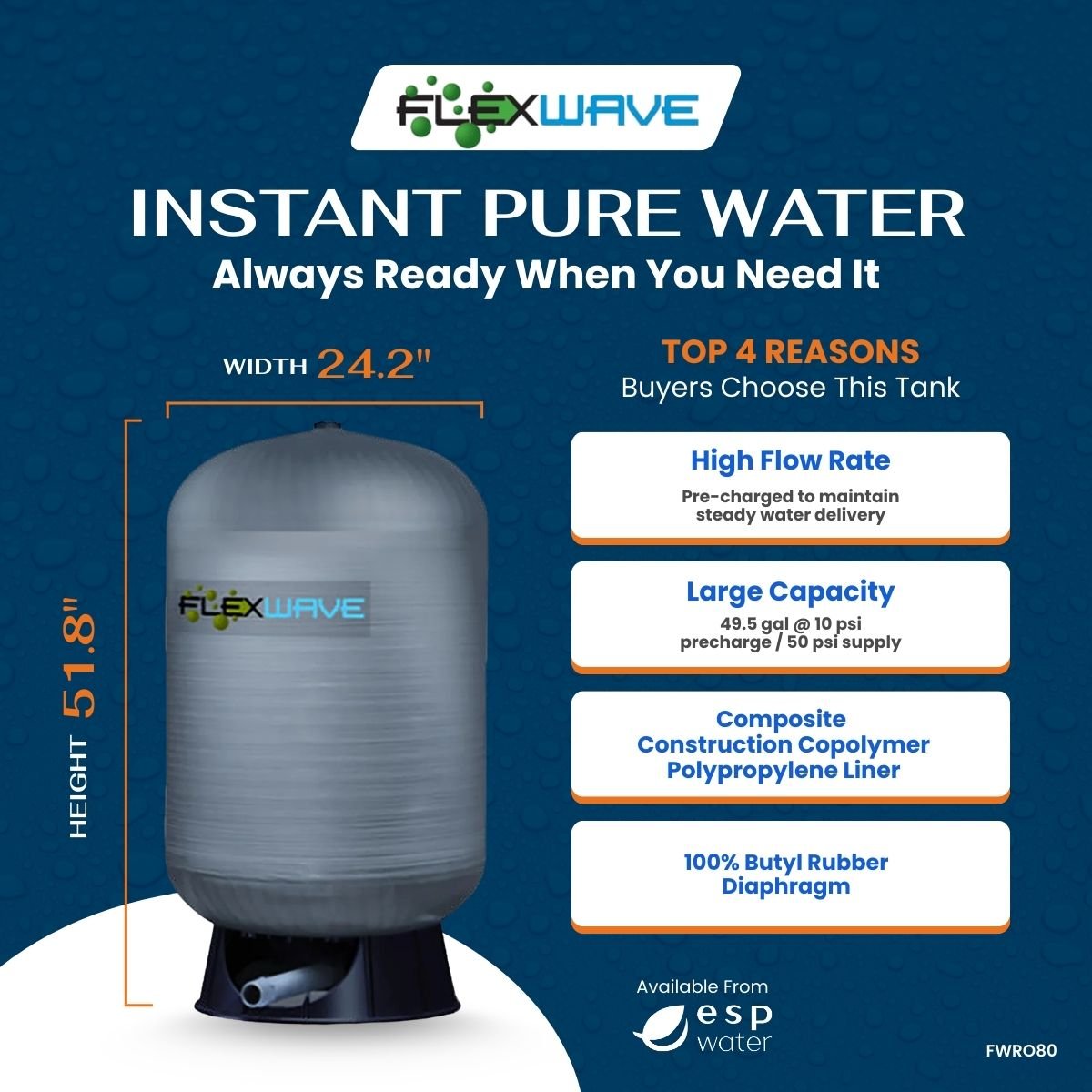

- Dimensions: 24.2" x 51.8"
- Connections: 1-1/4" NPT
Customer Reviews
Frequently Asked Questions
Q:
What does the 80-gallon rating mean on the Flexwave FWRO80?
A:
It is the tank’s nominal internal volume, not the amount of water delivered at the faucet. Usable drawdown depends on air precharge, RO shutoff pressure, feed pressure, and the system’s operating range.
Q:
What connection does the Flexwave FWRO80 use?
A:
It uses a 1-1/4-inch male NPT connection. Match thread size and type, valve or fitting material, and the system’s required flow before ordering.
Q:
How much installation space is needed?
A:
Allow for the tank body, approximately 51.8 inches high, plus the valve, tubing or piping, support, ventilation, and access to the air valve.
Q:
What air pressure should the tank have?
A:
Check precharge with the water side empty and use the tank or RO-system manufacturer’s setting. Do not adjust pressure while the tank contains water.
Q:
Why might the tank deliver less water than expected?
A:
Low feed pressure, incorrect precharge, high shutoff pressure, a restricted membrane or filters, a damaged diaphragm, or an undersized tank can reduce drawdown.
Q:
Can this tank be used with any RO system?
A:
The catalog lists: FWRO80, COM150S, COM-II-150S. Confirm the exact model and part number on your equipment before ordering Flexwave FWRO80. Confirm maximum working pressure, connection size, required drawdown, available space, and whether the installation is residential or commercial.
