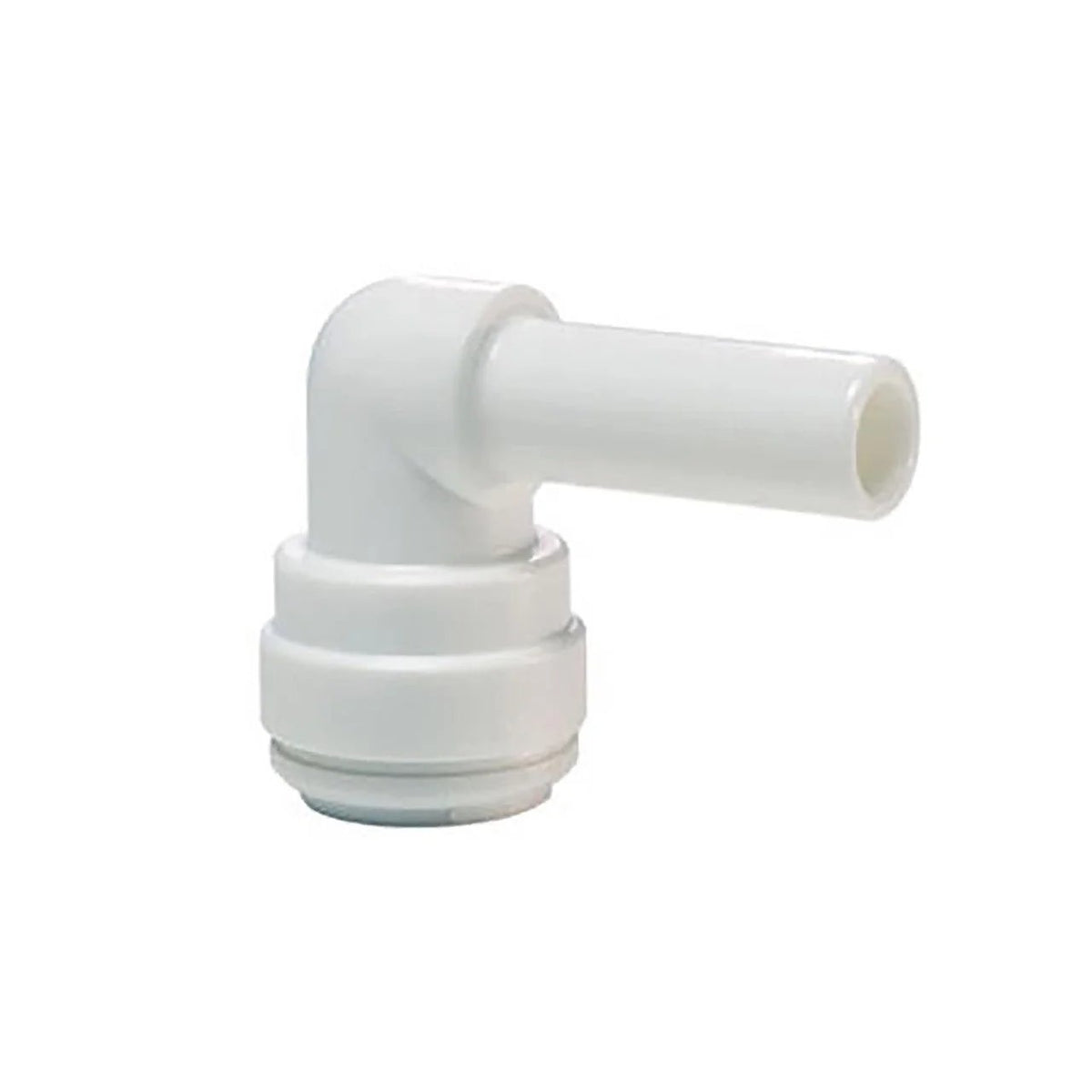

John Guest CI220808W Elbow Connector 1/4" Stem x 1/4" QC
Q&As
John Guest CI220808W Elbow Connector 1/4" Stem x 1/4" QC
Q&As
Part Number:
CI220808W
Elbow connector provides a compact right angle connection between 1/4 inch stem and 1/4 inch tubing.
Read More
IN STOCK
Description
These John Guest fittings were designed for the water industry but can be used in other potable liquid applications as well. The connections make this stem elbow connector quick and simple to install. Please see the instructions on how to connect and disconnect John Guest fittings and connectors.
Specs
- Fittings: 1/4" Stem X 1/4" Quick Connect
- Made of FDA compliant materials
- Not for compressed air or vacuum applications
Features
Customer Reviews
Overall rating: 5.0 / 5 from 1 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
groovey
"groovey"
Q&A
Frequently Asked Questions
Q:
What are the connection sizes on the John Guest CI220808W?
A:
It has a 1/4-inch stem that plugs into a compatible quick-connect port and a 1/4-inch quick-connect socket for OD tubing.
Q:
How is a stem elbow different from a threaded elbow?
A:
The stem end is smooth and seals inside another quick-connect fitting. It does not screw into a threaded port.
Q:
Can the elbow rotate after installation?
A:
Push-fit elbows can usually be oriented after insertion when the connected fittings permit it. Avoid side load, kinks, or constant stress on the collet.
Q:
How should tubing be prepared?
A:
Use a proper cutter to make a square, undamaged end. Push the tube fully to the stop and tug gently to verify engagement.
Q:
What pressure and temperature limits apply?
A:
John Guest lists up to 150 psi at 70°F and 100 psi at 150°F for this acetal-white fitting family. Use the lowest limit among all connected parts.
Q:
Can this fitting be used for compressed air?
A:
The manufacturer states the CI acetal-white range is not suitable for compressed-air applications. Use it only with compatible liquids and tubing.
