John Guest CI480822W Elbow Connector 1/4" QC x 1/4" Male Threads
Q&As

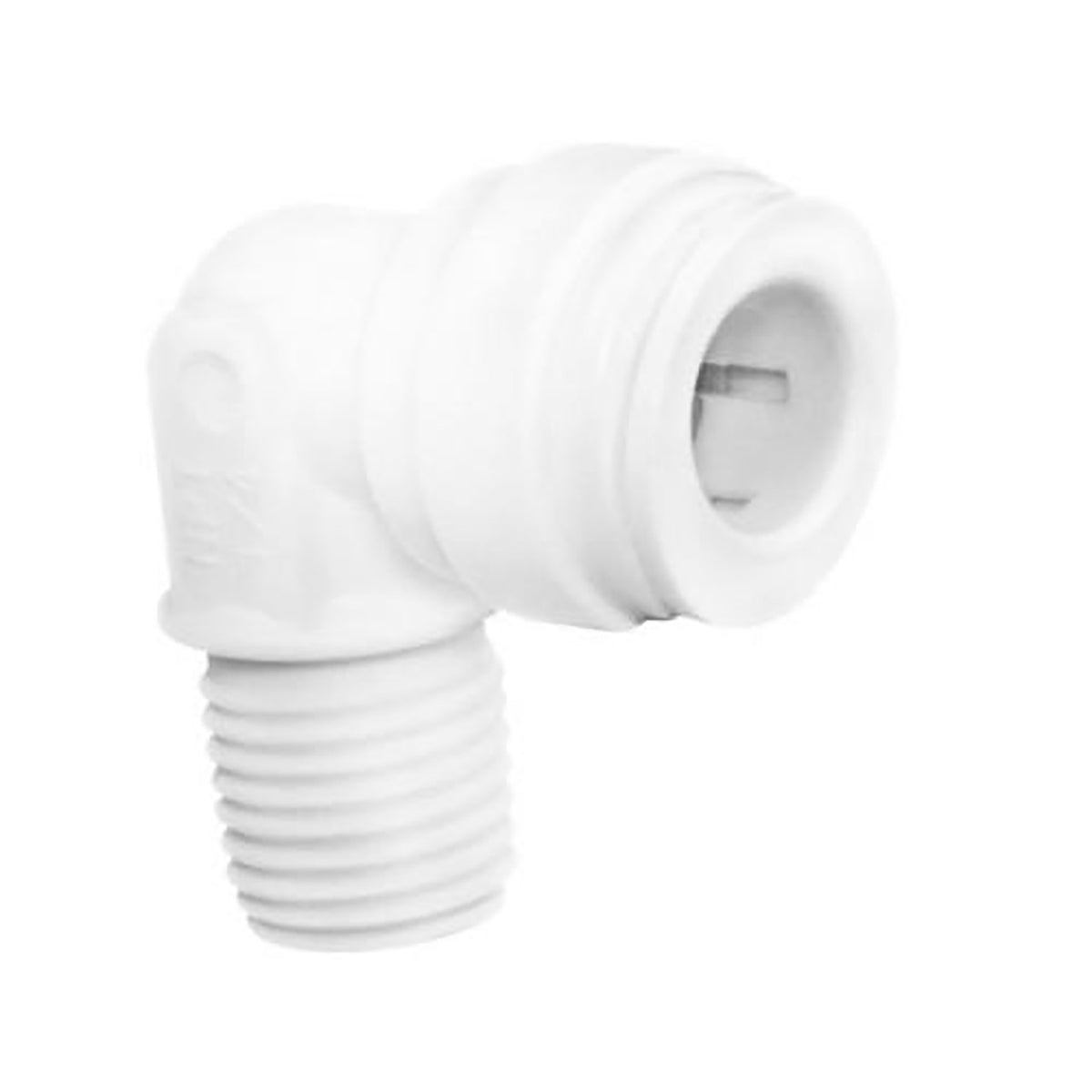

John Guest CI480822W Elbow Connector 1/4" QC x 1/4" Male Threads
Q&As
Part Number:
CI480822W
Elbow connector joins 1/4 inch tubing to 1/4 inch male threaded ports with a space saving design.
Read More
IN STOCK
Description
These John Guest fittings were designed for the water industry but can be used in other potable liquid applications as well. The connections make this elbow connector quick and simple to install. Please see the instructions on how to connect and disconnect John Guest fittings and connectors.
Specs
- Fittings: 1/4" Quick Connect X 1/4" MPT
- Made of FDA compliant materials
- Not for compressed air or vacuum applications
Features
Overall rating: 3.0 / 5 from 2 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
It doesn’t fit the system 😣
"Everyone was very nice that I spoke to from the company, but unfortunately The wrench does not fit"
Exactly what I needed.
"I called up needing four 90 degree connectors for the filters I bought prior. The gentleman knew exactly what I needed and gave me the part number. I ordered it and it was here in a couple of days. Great customer service! Thank you!"
Q&A
Q:
What sizes does the John Guest CI480822W connect?
A:
It is a fixed 90-degree elbow with a 1/4-inch quick-connect socket for OD tubing and a 1/4-inch male NPTF thread.
Q:
How is it different from CI220808W?
A:
CI480822W threads into a female NPT port. CI220808W has a smooth stem that pushes into another quick-connect fitting.
Q:
Can it replace a straight connector?
A:
Yes when a 90-degree turn is helpful and there is enough clearance to rotate the threaded elbow during installation. Confirm the direction will work once the thread is sealed.
Q:
How should the male thread be sealed?
A:
Use approved thread sealant for the mating female NPT port and potable-water application. Keep excess material away from the water path.
Q:
How is tubing installed?
A:
Cut 1/4-inch OD tubing square, push it fully through the collet to the tube stop, and pull back gently to verify engagement.
Q:
What should I check after installation?
A:
Restore pressure slowly and inspect both the threaded joint and push-fit seal. Make sure the tube is not kinked or applying side load to the elbow.
