Luminor LBH5-Z222 UV System with Sediment and Carbon Filter 15 GPM

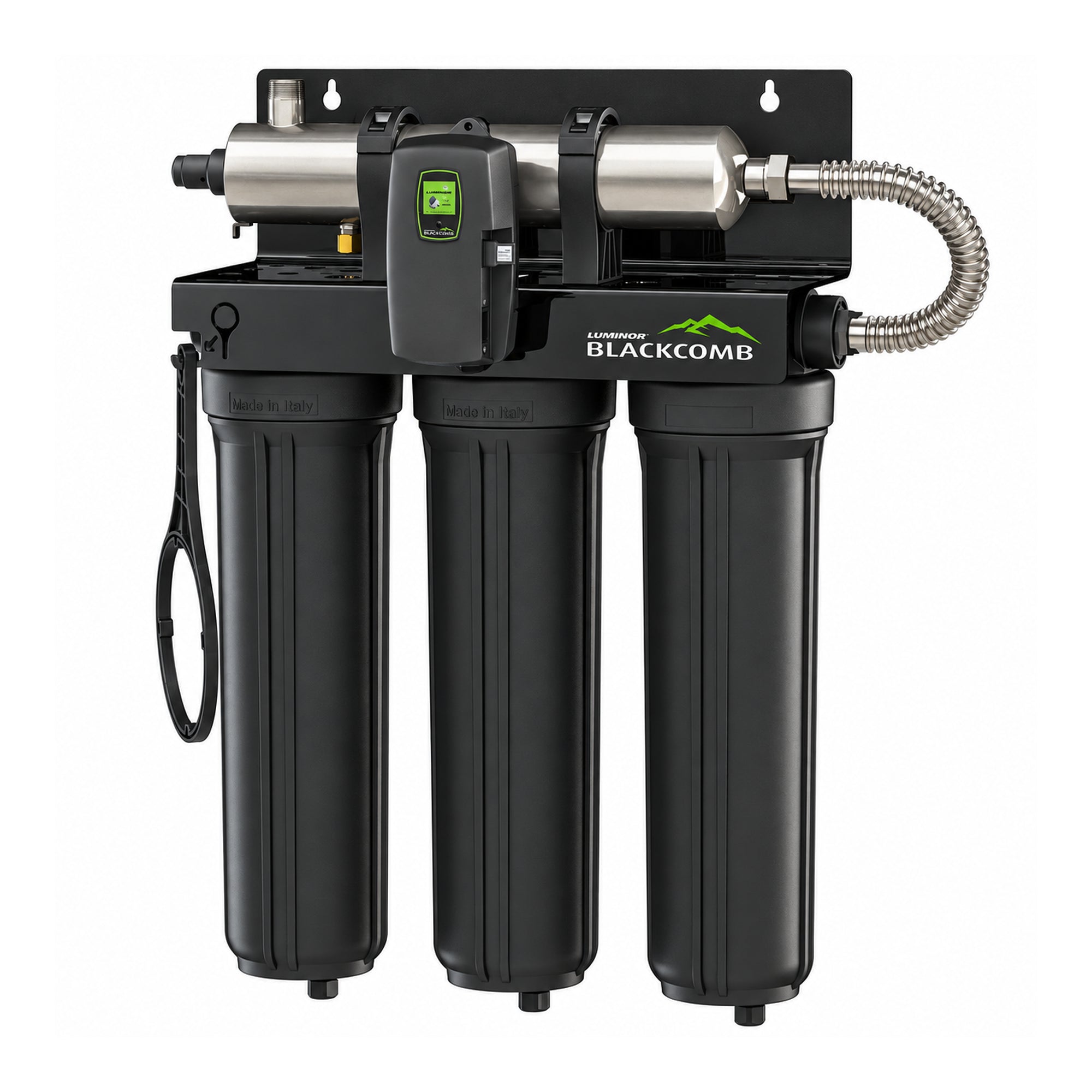

The Luminor LBH5-Z222 is a rack-mounted whole-home water treatment system that combines a BLACKCOMB-HO 5.1 high-output UV system with three 20-inch filter housings on one wall-mounted rack. Water passes through a 5-micron sediment cartridge, a scale-reduction cartridge and a high-capacity carbon cartridge before UV disinfection, all pre-plumbed for a simpler install. It is rated at 15 GPM (56.8 L/min) at 30 mJ/cm² and 95% UV transmittance, or 12 GPM at 40 mJ/cm².

Filter stages

• Stage 1: LC-20S 5-micron sediment cartridge
• Stage 2: LC-20WS scale-reduction cartridge
• Stage 3: LC-20AC high-capacity carbon cartridge
• UV: BLACKCOMB-HO 5.1 with 45 W high-output lamp

How it works and alerts you

The full-colour LCD BLACKCOMB-HO 5.1 controller shows remaining lamp life, diagnostics and fault messages, warns 30 days before the lamp expires and shows a service reminder every 6 months to maintain both the UV and the filters. Its Infinite Expandability Port accepts an optional RSHO-B3.5 UV intensity sensor and modules such as MOD-SOL, MOD-420, MOD-RAM, MOD-SHERPA and the LFM flow meter. The controller reports lamp status; it does not by itself confirm the water is safe to drink, so Luminor recommends testing your water for microbiological contaminants regularly.

Water quality requirements

• Hardness under 7 gpg; Luminor says water above this must be softened, even with the scale-reduction stage
• pH 6.5-8.5; iron under 0.3 ppm; manganese under 0.05 ppm; tannins under 0.1 ppm; turbidity under 1 NTU
• UV transmittance above 85%

Specifications

• Model: LBH5-Z222 (BLACKCOMB-HO 5.1 rack system, 3 x 20-inch housings)
• Flow: 15 GPM at 30 mJ/cm², 95% UVT; 12 GPM at 40 mJ/cm²
• Connections: 1-inch FNPT (filter inlet) / 1-inch MNPT (UV outlet)
• Lamp: 45 W high output, RL-420HO; power draw 57 W (48 W at 230V)
• Electrical: 90-265V, 50/60 Hz; North American NEMA 5-15P plug
• UV chamber: 316L stainless steel, 3.5 x 20 inches
• Operating pressure: 10-120 psi; water temperature: 36-149°F (2-65°C)
• Shipping weight: 60 lb (27.2 kg)

Maintenance and replacement parts

• UV lamp: RL-420HO. Replace every 12 months (rated 10,000 hours).
• Quartz sleeve: RQ-420. Clean every 6-12 months and replace every 24 months, or sooner if scaled, cloudy or damaged.
• Lamp and sleeve kit: RLQ-420HO
• Carbon cartridge LC-20AC: replace every 6 months (Luminor)
• Sediment LC-20S and scale-reduction LC-20WS cartridges: check and replace as needed at the 6-month service reminder

Warranty Luminor limited warranty: 10 years on the stainless steel reactor, 3 years on the controller, and 1 year on UV lamps, UV sensors and quartz sleeves.
