Luminor RL-720A Replacement UV Lamp for LR5-555, LR6-555, LR5-1105, LR6-1105
Luminor RL-720A Replacement UV Lamp for LR5-555, LR6-555, LR5-1105, LR6-1105
Subscription Details
Automatic deliveries and charges at your selected frequency. Skip, reschedule, or cancel through your subscription account. View subscription details.
Description

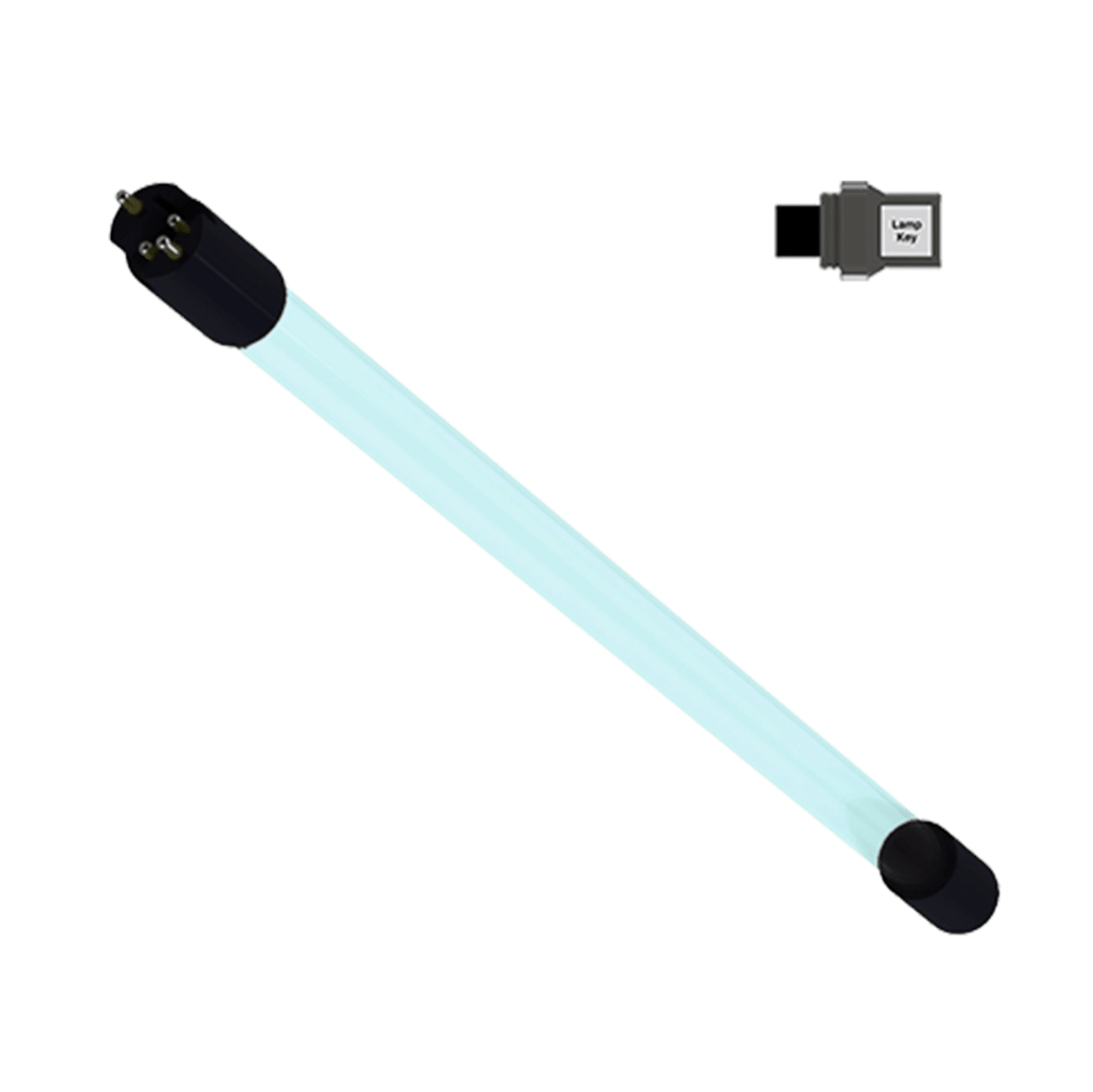

The RL-720A is a genuine Luminor replacement UV lamp and lamp key for LUMINOR RAINIER LR5-555, LR6-555, LR5-1105, and LR6-1105 light commercial UV water treatment systems, and their low-UVT "-50" variants listed below. It is an authentic Luminor part, not a compatible aftermarket substitute, so it drops in and treats water the way your system was originally tested and certified to perform.
How many lamps does your system need? The 55 GPM "-555" systems use a single-lamp chamber and take one RL-720A. The 140 GPM "-1105" systems use a dual-lamp chamber and take two RL-720A lamps per system. Check your chamber before ordering so you buy the right quantity.
The lamp is rated for 12,000 hours of use, about 12 months of continuous operation. UV-C output weakens gradually over the lamp's life, so Luminor recommends replacing it every 12 months or after 12,000 hours, whichever comes first, to keep UV output where the system needs it.
Why a genuine Luminor lamp matters
Luminor tests and certifies its UV systems as a complete unit: lamp, chamber, and sleeve together. An authentic RL-720A keeps your system performing the way it was certified. A non-Luminor lamp voids the system's certification and can affect your warranty coverage if a problem comes up later.
Fits these Luminor Rainier systems
- LR5-555 (1 lamp)
- LR6-555 (1 lamp)
- LR5-555-50 (1 lamp, low-UVT crossover)
- LR6-555-50 (1 lamp, low-UVT crossover)
- LR5-1105 (2 lamps)
- LR6-1105 (2 lamps)
- LR5-1105-50 (2 lamps, low-UVT crossover)
- LR6-1105-50 (2 lamps, low-UVT crossover)
The RL-720A runs on either 110V/60Hz or 230V/50-60Hz power, so the same lamp covers both electrical configurations. All eight models above use the RL-720A.
Complete your replacement The RL-720A is the lamp only. For the full replacement:
- Luminor RQ-720 UV Quartz Sleeve, the quartz sleeve that houses the lamp (1 required per "-555" system, 2 per "-1105" system). Replace every 24 months, or sooner if it's visibly scaled, cloudy, or damaged.
- Luminor RLQ-720A UV Lamp and Sleeve Kit, which bundles the RL-720A lamp and RQ-720 sleeve together.
- Replace every 12 months or 12,000 hours of use
- Length: 28.4" (720mm)
- Power: 152Watts
Helpful Info & Downloads
Q:
How do I know if the RL-720A is the right lamp for my system?
A:
Check the model number on your system's nameplate. The RL-720A fits LR5-555, LR6-555, LR5-1105, LR6-1105, and their low-UVT "-50" variants. If your model has a "LB" or "LBH" prefix instead of "LR," you have a BLACKCOMB system and need a different lamp.
Q:
What's the difference between the "-555" and "-1105" Rainier systems?
A:
Both are light commercial systems rated at 30 mJ/cm² and 95% UVT, but at different flow rates: the "-555" tier runs 55 GPM through a single-lamp chamber with 2" MNPT connections, while the "-1105" tier runs 140 GPM through a dual-lamp chamber with 2.5" MNPT connections. The higher flow rating is why the "-1105" systems need two RL-720A lamps instead of one.
Q:
What does the "-50" suffix mean on models like LR5-555-50 or LR6-1105-50?
A:
It marks a low-UVT crossover configuration, built for source water with reduced UV transmittance. Standard "-555" and "-1105" systems are rated for 95% UVT; the "-50" variants deliver the same UV dose at 50% UVT, with flow reduced accordingly, 23 GPM for the "-555-50" tier and 39 GPM for the "-1105-50" tier. They use the same RL-720A lamp as the standard systems.
Q:
My LR5-1105 or LR6-1105 system takes two lamps. Do I need to replace both at the same time?
A:
Luminor recommends replacing both lamps together, even if only one has failed. Since both lamps age at roughly the same rate, replacing them as a pair keeps UV output balanced across the chamber and avoids a second service call soon after the first.
Q:
Will a non-Luminor replacement lamp work in my Rainier system?
A:
It may physically fit, but Luminor systems are certified as a complete lamp-and-system unit. A non-Luminor lamp voids that certification and can affect your warranty if an issue comes up.
