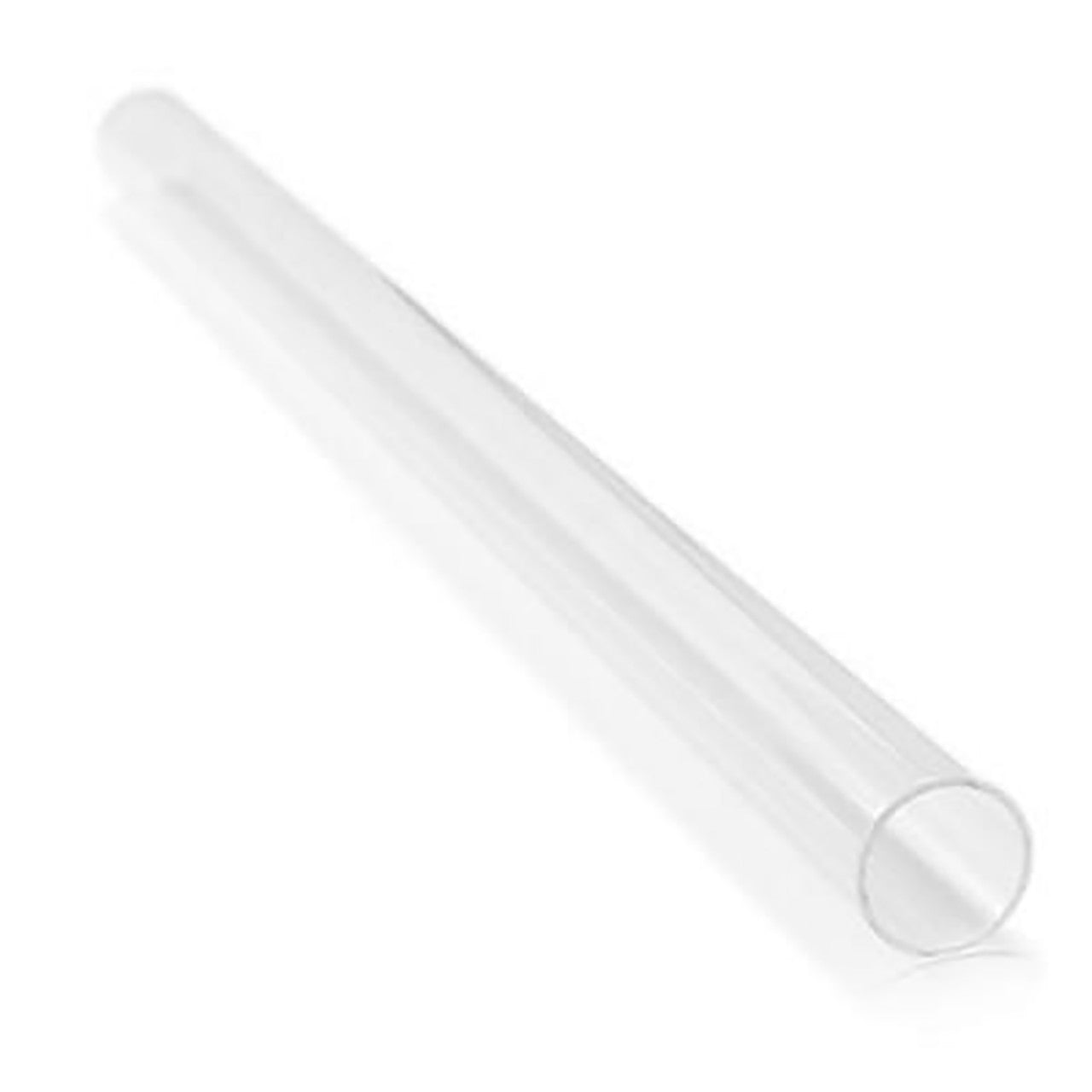

Luminor RQ-820 UV Quartz Sleeve for LB4-101, LB5-101, LB6-101
Q&As
Luminor RQ-820 UV Quartz Sleeve for LB4-101, LB5-101, LB6-101
Q&As
Part Number:
RQ-820
Replacement quartz sleeve protects lamp and maintains UV transmission for LB4 101 LB5 101 and LB6 101 systems.
Read More
IN STOCK
Receive a 15% bulk discount on orders of 12 or more
Description
The RQ-820 is a genuine Luminor replacement quartz sleeve for LUMINOR BLACKCOMB LB4-101, LB5-101, and LB6-101 UV systems, plus their NSF Class A/B variants below. It's an authentic Luminor part, not an aftermarket substitute, so your system keeps performing the way it was tested and certified.
Fits these Luminor BLACKCOMB systems
- LB4-101
- LB5-101
- LB6-101
- LB5-101B (NSF Class B, non-monitored)
- LB6-101B (NSF Class B, non-monitored)
- LB6-101A (NSF Class A, monitored, includes UV sensor)
The A and B suffixes mark the system's NSF/ANSI 55 monitoring class (A is monitored with a UV sensor, B is non-monitored), not a different sleeve. All six models above use the identical RQ-820.
Why a genuine Luminor sleeve matters
Luminor certifies its UV systems as a complete lamp, chamber, and sleeve unit. A non-Luminor sleeve can differ in wall thickness or quartz quality, reducing UV-C output reaching the water and affecting your warranty coverage.
Complete your replacement
- Luminor RL-820 UV Replacement Lamp, the lamp that goes inside this sleeve. Replace every 12 months, or after 9,000 hours.
- Luminor RLQ-820 UV Lamp and Sleeve Kit, which bundles the RL-820 lamp and RQ-820 sleeve together for LB4-101, LB5-101, and LB6-101.
Specs
- Replace every 24 months or as needed
- Length: 34.1" (866mm)
- Style: Domed
Features
This Item Fits These Select Systems
Helpful Info & Downloads
Downloads
Overall rating: 5.0 / 5 from 2 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Quartz sleeve
"Product was excellent and arrived super fast"
Q&A
Overall rating: 5.0 / 5 from 2 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Good product
"WORKS AS IT SHOULD. QUICK SHIPPING."
Quartz sleeve
"Product was excellent and arrived super fast"
Q&A
Q:
Does the RQ-820 fit the Class A and Class B versions of my system, or just the standard LB-101?
A:
It fits all of them. The A and B suffixes only mark the system's NSF/ANSI 55 monitoring class; the chamber and sleeve are identical across all six LB4/5/6-101 variants.
Q:
How do I know if I need to clean the sleeve or replace it?
A:
Clean it if it's scaled or lightly stained; replace it if it's chipped, cracked, or stays discolored after cleaning. Even with no visible damage, Luminor recommends replacing the sleeve every 24 months as routine maintenance, since UV-C transmission through quartz declines gradually with age.
Q:
Do I need to buy the lamp too, or can I just replace the sleeve?
A:
The RQ-820 is the sleeve only. If your lamp is also due, pair it with the [RL-820](https://espwaterproducts.com/products/luminor-rl-820-replacement-uv-lamp-for-lb4-101-lb5-101-lb6-101) lamp, or save by ordering the [RLQ-820](https://espwaterproducts.com/products/luminor-rlq-820-uv-lamp-and-sleeve-replacement-kit) kit, which bundles both.
Q:
Can I use a non-Luminor sleeve instead of the RQ-820?
A:
You can, but it's not recommended. Luminor certifies its systems as a complete lamp-chamber-sleeve unit, and a non-Luminor sleeve can differ in wall thickness or quartz quality, which reduces the UV-C dose reaching the water and can affect your warranty coverage.
Q:
Why does the sleeve need replacing on a different schedule than the lamp?
A:
The lamp is a wear part rated for 9,000 hours, so it's replaced on a fixed schedule (about every 12 months). The sleeve doesn't burn out the same way; it fouls from mineral scale and staining, which is why its replacement guidance is calendar-based (every 24 months) rather than hour-based.
