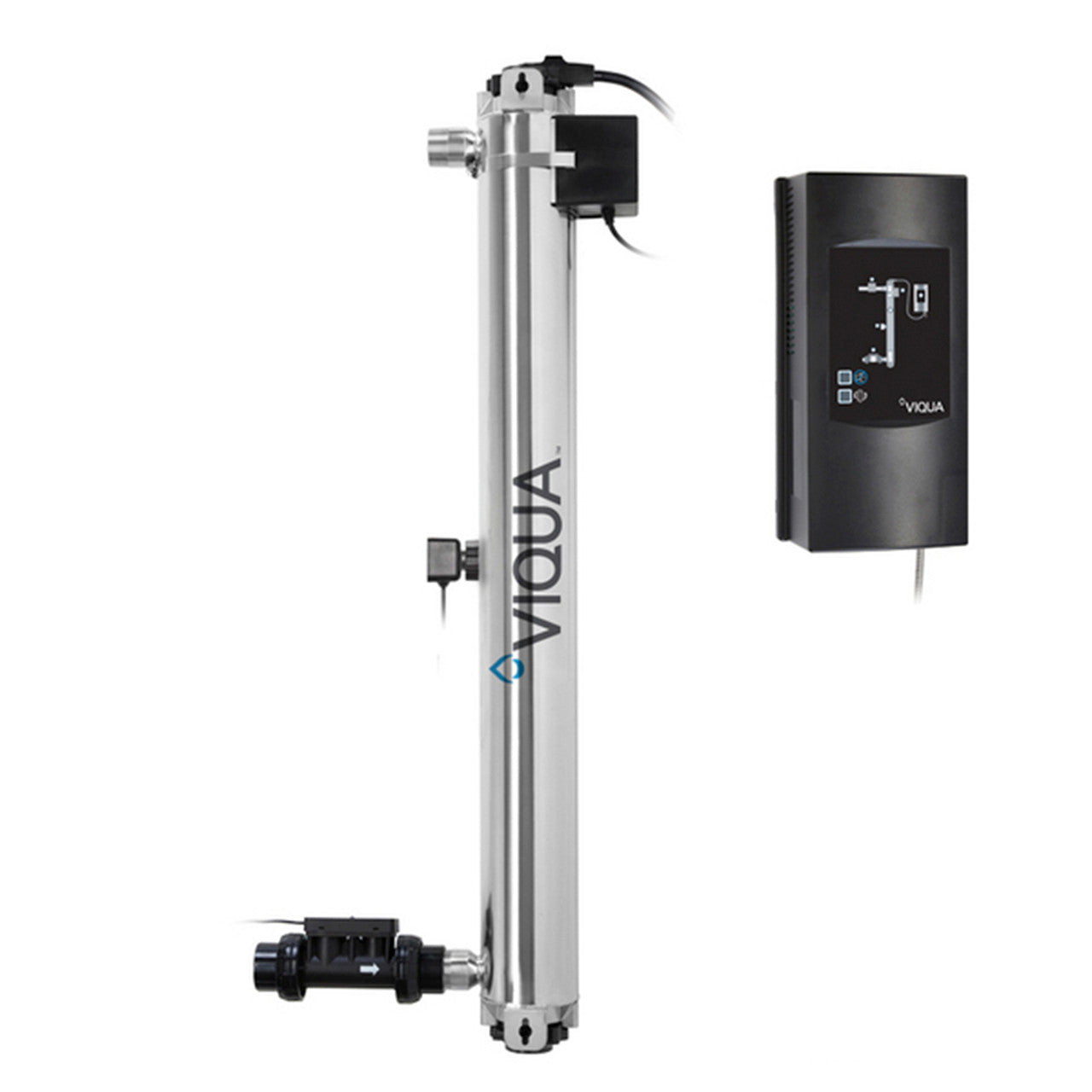

VIQUA PRO24-100 UV System, 24 GPM, USEPA 2-Log Validated 660095-R
Q&As
VIQUA PRO24-100 UV System, 24 GPM, USEPA 2-Log Validated 660095-R
Q&As
Part Number:
660095-R
High-output Viqua UV water sterilizer system delivering up to 24 GPM with USEPA 2-Log validated disinfection.
Read More
SHIPS IN 4-6 WEEKS
UV Sensor and Alarm
Flow Meter
Lamp Replacement Timer
Energy Efficient
24 Month Lamp Life
Made In North America
Description
The VIQUA Pro24-100 (660095-R) takes pro level safety to the next level thanks with an ultra-high output VIQUA UV lamp featuring Cool Touch fan technology. The Pro24-100 allows flow rates up to 24 GPM with a 3rd party validation for Adenovirus (2-log virus) giving you the peace of mind you need. Primarily intended for small public water systems, the validated flow rate can be changed dependent on UVT for either 10, 15, 21, or 24 GPM. The included UV sensor and flow meter will provide constant feedback on UV disinfection and system performance. This data can be constantly recorded on a micro-SD card or connected directly to a PC with free software available for analyzing system performance. Optional solenoid valve will ensure water shuts off in the event water is not being disinfected properly. This system makes complying with Ground Water Rule and LT2 regulations simple. The Pro24-100 features an amalgam lamp that provides higher strength and up to 2 years of lamp life. Capable of 100-240V, 50-60Hz.
To request international electrical plug types “F” (Europe), “G” (UK), and “I” (Australia) be included with your system at no charge, please email customer support, after ordering.
Specs
- Flow Rate: 24 Gallons Per Minute
- Power: 100-240V 50-60Hz 460W N. American Plug
- Application: Point-of-Entry
- Chamber Dimensions: 41" x 18"
- Inlet Dimensions: 1 1/4"" MPT
- Outlet Dimensions: 1" FPT
Features
This Item Fits These Select Systems
Replacements & Add Ons
Replacements for This Item
View All System Parts
Replacement Lamp
VIQUA 602856 UV Lamp for PRO30, PRO50, J, J+, K, K+, S80
Replace Every 24 Months
See Details
Replacement Sleeve
VIQUA 602976 UV Quartz Sleeve for PRO30, PRO50, J, K, S80
Replace Every 24 Months
See Details
Replacement Combo
VIQUA 602850-103 UV Lamp and Sleeve Kit for PRO30, PRO50 J, K, S80
Replace Every 24 Months
See Details
Helpful Info & Downloads
Overall rating: 5.0 / 5 from 1 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Great service
"Great service"
Q&A
Q:
What flow rate is the VIQUA PRO24-100 designed for?
A:
It is rated for up to 24 GPM under the manufacturer’s specified conditions. Size a UV system to peak simultaneous flow, not average daily use.
Q:
What plumbing and power does it require?
A:
The system uses the connections specified for the PRO24-100 chamber and the listed commercial electrical supply. Confirm pipe size, available electrical service, bypass layout, drainage, and service clearance before purchase.
Q:
What features distinguish this model?
A:
This high-output commercial model carries third-party 2-log adenovirus validation and includes CoolTouch temperature management for low-flow periods.
Q:

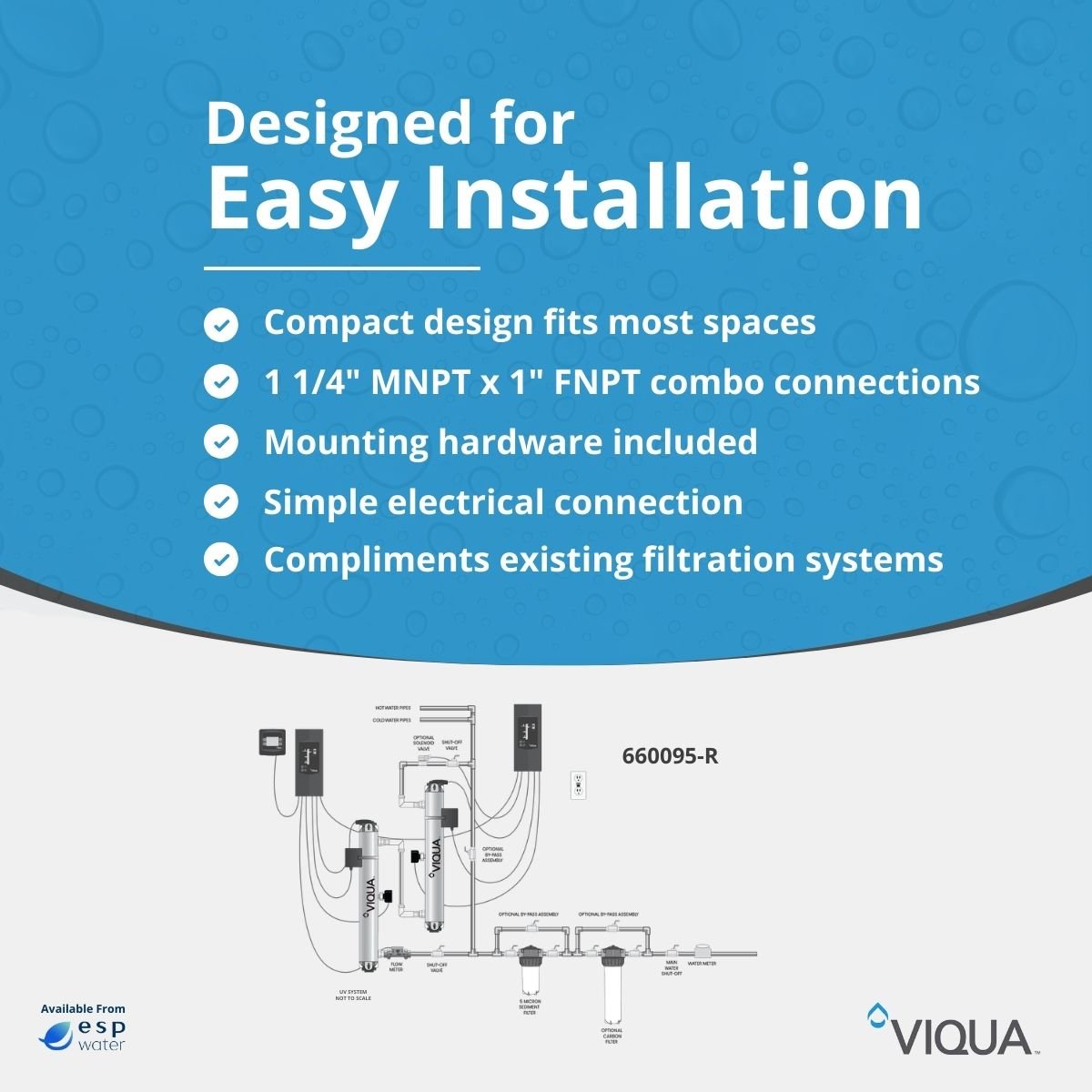

Where should the VIQUA PRO24-100 be installed?
A:
Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and other upstream treatment so water conditions stay within specifications.
Q:
What routine maintenance is required?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Track alarms and operating hours rather than relying on visible lamp glow.
Q:
Which service parts should I plan for?
A:
Plan for the correct amalgam lamp, quartz sleeve, seals, sensor-related parts where fitted, and upstream filter service items; match all replacements to 660095-R.
