Description

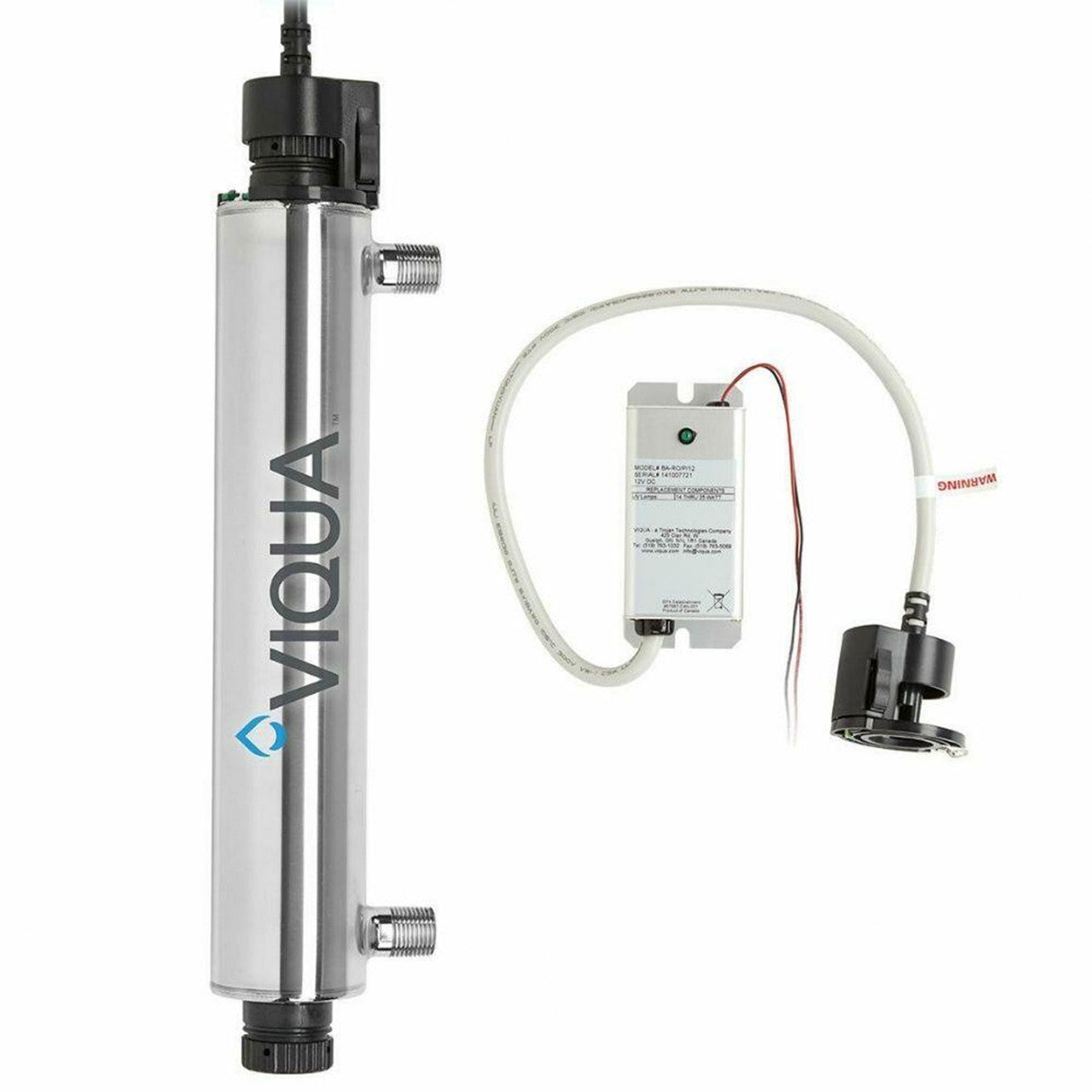

The VIQUA S2Q-P/12VDC is the 12 volt DC version of the S2Q-PA. Perfect for off-the-grid and battery powered situations, the S2Q-P/12VDC system will treat water in point-of-use situations at 3 GPM.
The S2Q-P is easy to service and requires little maintenance.
To request international electrical plug types “F” (Europe), “G” (UK), and “I” (Australia) be included with your system at no charge, please email customer support, after ordering.
- Flow Rate: 3 Gallons Per Minute
- Application: Point-of-Use
- Power: 12VDC 17W N. American Plug
- Chamber Dimensions: 17.1" x 2.5"
- Inlet Dimensions: 1/2" MPT
- Outlet Dimensions: 1/2" MPT
Replacements & Add Ons
Helpful Info & Downloads
Q:
What flow rate is the VIQUA S2Q-P/12VDC designed for?
A:
It is rated for up to 3 GPM under its specified conditions. Size the system to peak simultaneous flow, not average daily water use.
Q:
What electrical supply does it require?
A:
This model uses 12 VDC power. Confirm the power source, cord and plug requirements, grounding, and controller location before installation.
Q:

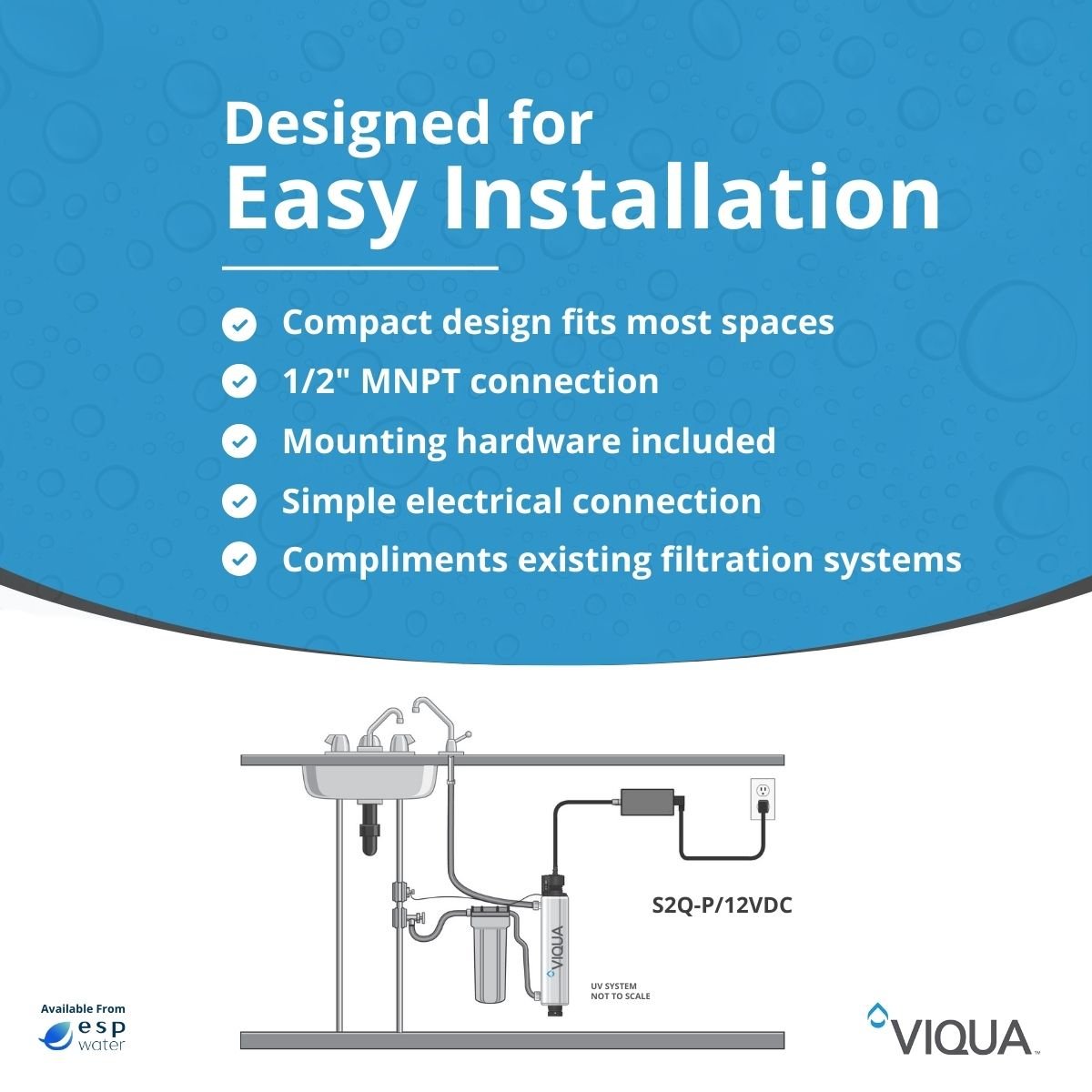

Where is this UV system typically installed?
A:
Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and other upstream treatment so water conditions remain within specification.
Q:
What maintenance does the VIQUA S2Q-P/12VDC require?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Track controller alarms rather than relying on visible lamp glow.
Q:
Which replacement parts should I plan for?
A:
Plan for the catalog-approved S330RL lamp, QS-330 sleeve, seals, and the correct 12 VDC controller components.
Q:
What else should I know before buying?
A:
The 12 VDC design is intended for battery or off-grid applications. Verify that the power source can provide the required regulated voltage and current.
