VIQUA SHF-140 UV System 170 GPM 3" Flange
Q&As
VIQUA SHF-140 UV System 170 GPM 3" Flange
Q&As
Part Number:
SHF-140
High flow commercial UV system delivers chemical free disinfection at flow rates up to 170 GPM.
Read More
SHIPS IN 4-6 WEEKS

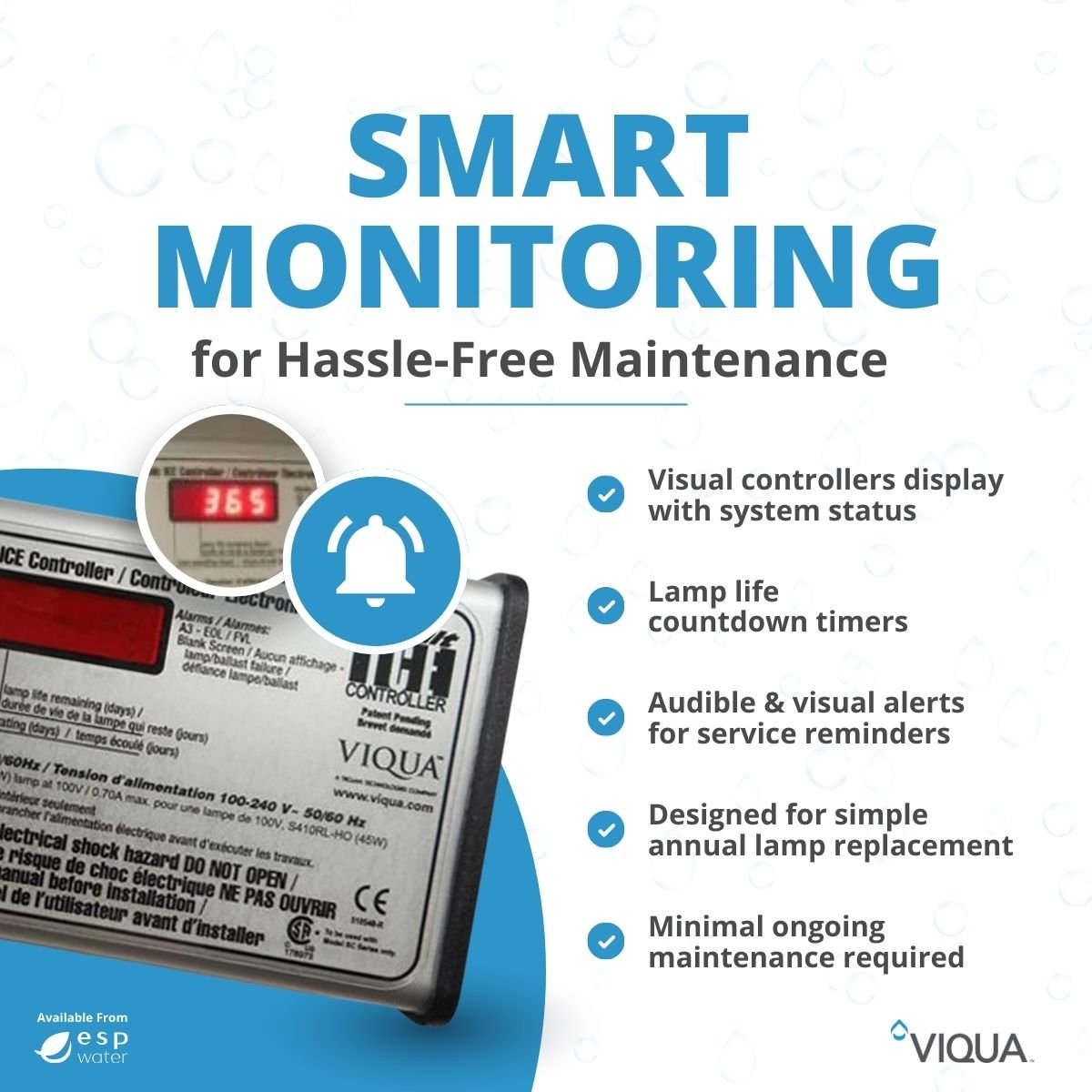

Lamp Replacement Timer
Made In North America
Description

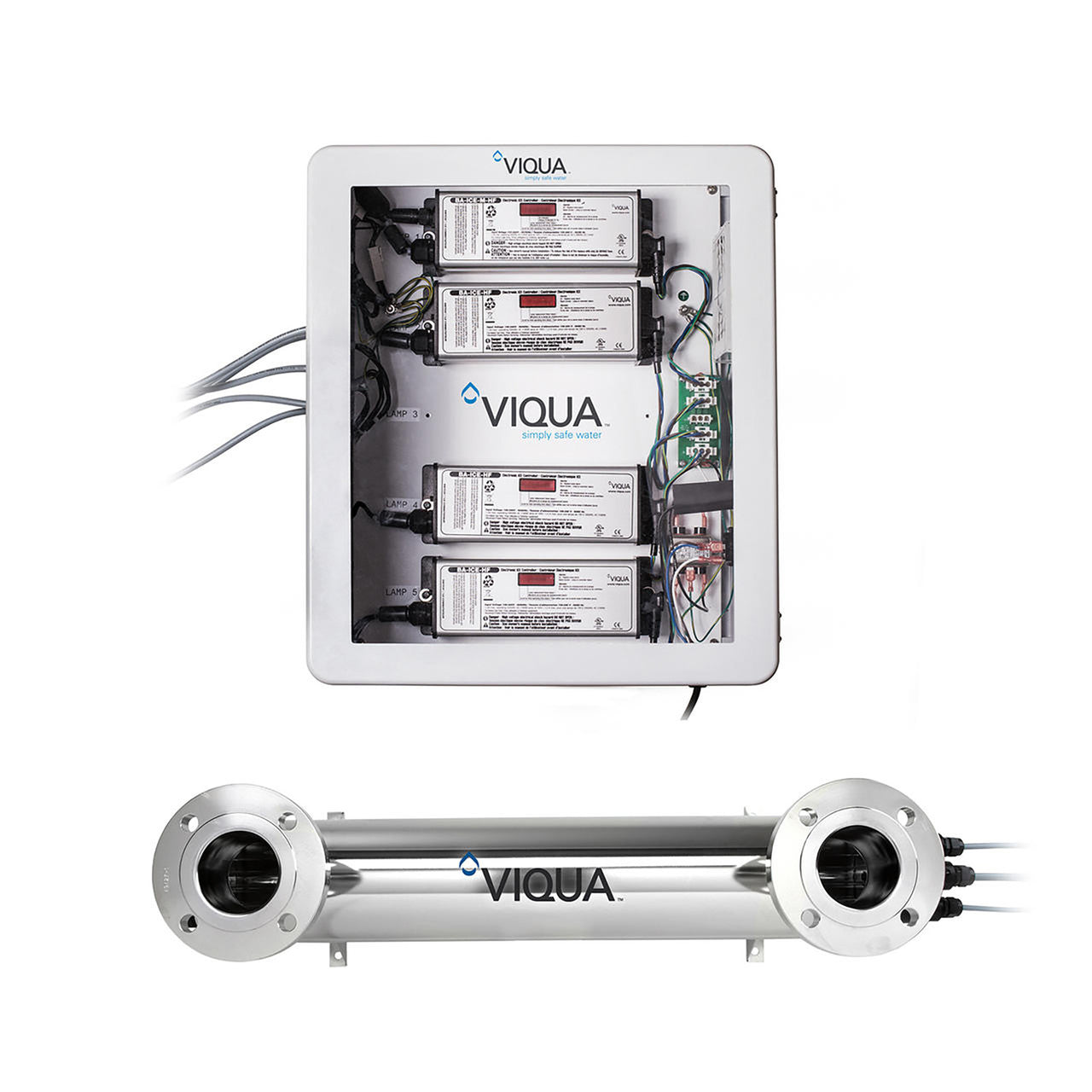

The VIQUA SHF-140 Model is a 170 GPM, high-flow, multi-lamp, commercial UV disinfection system that renders chlorine-resistant parasites, bacteria and viruses harmless. This four lamp system features a separate control panel with high visibility components, stainless steel chamber, and capable of 100-240V, 50-60Hz.
To request international electrical plug types “F” (Europe), “G” (UK), and “I” (Australia) be included with your system at no charge, please email customer support, after ordering.
Specs
- Flow Rate: 170 Gallons Per Minute
- Application: Point-of-Entry
- Power: 100-240V 50-60Hz 320W N. American Plug
- Overall Dimensions: 34" x 6" x 14"
- Inlet Dimensions: 3" Flange
- Outlet Dimensions: 3" Flange
Features
This Item Fits These Select Systems
Replacements & Add Ons
Replacements for This Item
View All System Parts
Replacement Lamp
VIQUA S740RL-4C UV Lamp for SHF-140 and SHFM-140
Replace Every 12 Months
See Details
Replacement Sleeve
VIQUA QS-012 UV Quartz Sleeve for SHF-140, SHFM-140, S12Q-PA, S24Q, S40Q, SSM-39, SUV 24-100P
Replace Every 24 Months
See Details
Replacement Combo
VIQUA QL-140 UV Lamp and Sleeve Kit for SHF-140 and SHFM-140
Replace Every 12 Months
See Details
