VIQUA SHFM-140 UV System with Sensor 170 GPM 3" Flange

Part Number: SHFM-140
( 0 reviews )

VIQUA SHFM-140 UV System with Sensor 170 GPM 3" Flange

( 0 reviews )
Part Number: SHFM-140
Ships In: 4-6 Weeks
$11615.00$13665.00
You save $2050.00
Ships In: 4-6 Weeks

Quantity

UV Sensor and Alarm
Lamp Replacement Timer
Made In North America
Replacement & Add Ons
View All System Parts
Replacement Lamp
VIQUA S740RL-4C UV Lamp for SHF-140 and SHFM-140 - - Replace Every 12 Months
$179.00$211.00
Replacement Sleeve
VIQUA QS-012 UV Quartz Sleeve for SHF-140, SHFM-140, S12Q-PA, S24Q, S40Q, SSM-39, SUV 24-100P - - Replace Every 24 Months
$90.00$106.00
Replacement Combo
VIQUA QL-140 UV Lamp and Sleeve Kit for SHF-140 and SHFM-140 - - Replace Every 12 Months
$235.00$276.00
UV Sensor and Alarm
Lamp Replacement Timer
Made In North America
Description

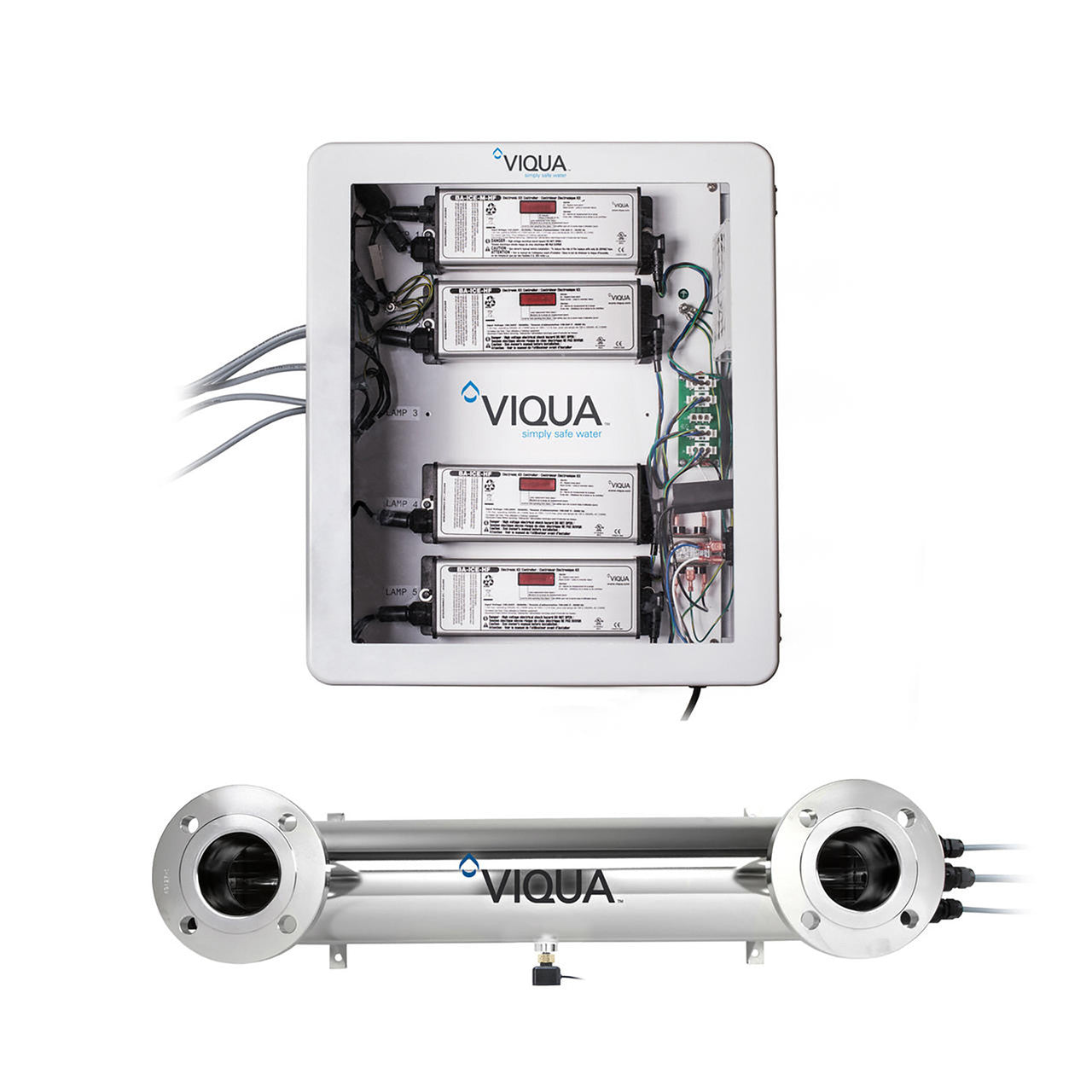

This unique system from VIQUA features four lamps which allows for an extremely high treatment flow rate. Rated at 170 GPM, the SHFM-140 will effectively combat any harmful microorganisms for your high-flow applications. Included with this system is the advanced UV sensor that provides continuous feedback of disinfection performance. Capable of 100-240V, 50-60Hz.

To request international electrical plug types “F” (Europe), “G” (UK), and “I” (Australia) be included with your system at no charge, please email customer support, after ordering.

Feature & Specs
Features
Monitors UV light intensity for proper UV dose
Counts down the days until UV lamp is due for replacement
System made in Canada and/or USA
Specs
Flow Rate: 170 Gallons Per Minute
UV Sensor: 254NM-HF
Application: Point-of-Entry
Power: 100-240V 50-60Hz 320W N. American Plug
Overall Dimensions: 34" x 6" x 14"
Inlet Dimensions: 3" Flange
Outlet Dimensions: 3" Flange
