VIQUA 440341-R Bottom Sleeve Bolt for Pro, G, H, J, K Systems
VIQUA 440341-R Bottom Sleeve Bolt for Pro, G, H, J, K Systems
Description

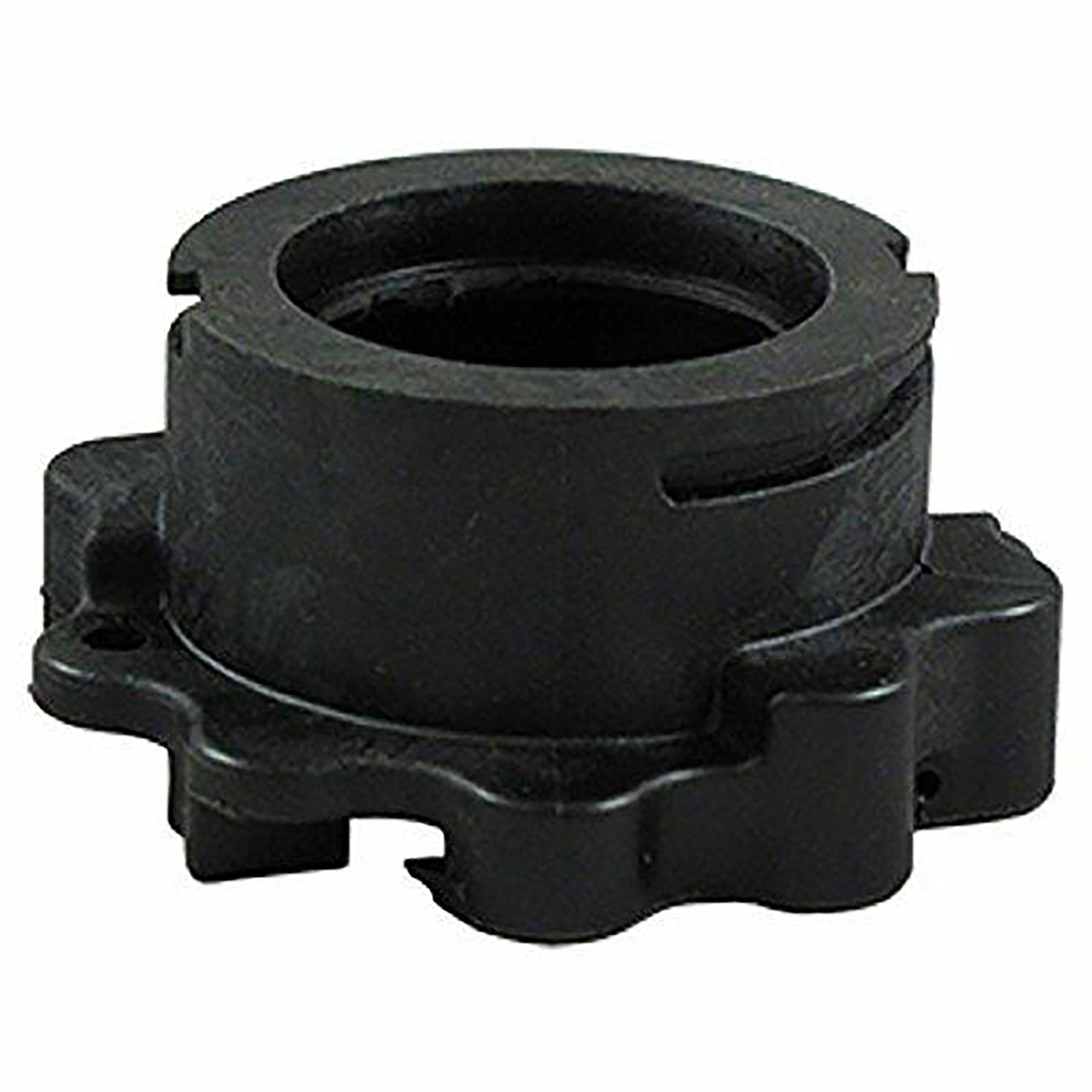

This replacement bottom sleeve bolt attaches to the bottom of the lamp and quartz sleeve clamping them together and fixing them to the chamber.
NOTE: Wire form and top sleeve bolt sold separately.
Compatible with VIQUA Pro, G, H, J, K and Plus Series Systems
- UVMax G
- UVMax G Plus
- UVMax H
- UVMax H Plus
- UVMax J
- UVMax J Plus
- UVMax K
- UVMax K Plus
- UVMAX PRO10
- UVMAX PRO20
- UVMAX PRO30
- UVMAX PRO50
- VIQUA H (650651)
- VIQUA H+ (650652)
- VIQUA K (660001-R)
- VIQUA K+ (660002-R)
- VIQUA PRO10 (650647)
- VIQUA PRO20 (650653)
- VIQUA PRO24-100 (660095-R)
- VIQUA PRO24-186 (660086-R)
- VIQUA PRO30 (650659)
- VIQUA PRO50 (660003-R)
Customer Reviews
Frequently Asked Questions
Q:
What does the VIQUA 440341-R bottom sleeve bolt do?
A:
It secures the lower end of the quartz-sleeve assembly on compatible commercial VIQUA chambers.
Q:
Which systems use the 440341-R bottom sleeve bolt?
A:
The catalog lists: H (650651), H+ (650652), K (660001-R), K+ (660002-R), PRO10 (650647), PRO20 (650653), PRO24-100 (660095-R), PRO24-186 (660086-R), PRO30 (650659), PRO50 (660003-R). Confirm the exact model and part number on your equipment before ordering VIQUA 440341-R.
Q:
Are the top bolt and wire retainer included?
A:
No. The 602916 top sleeve bolt and 602896 cord retainer are separate parts unless package contents state otherwise.
Q:
When should the bottom bolt be replaced?
A:
Replace it if threads, sealing surfaces, or the body are damaged, corroded, or no longer secure the assembly correctly.
Q:
How do I reduce the risk of sleeve breakage?
A:
Relieve pressure, support the sleeve, keep sealing surfaces free of grit, seat O-rings correctly, and tighten only as directed.
Q:
What should be checked after installation?
A:
Pressurize slowly and inspect for leaks before restoring power; confirm the sleeve remains centered and retaining hardware is secure.
