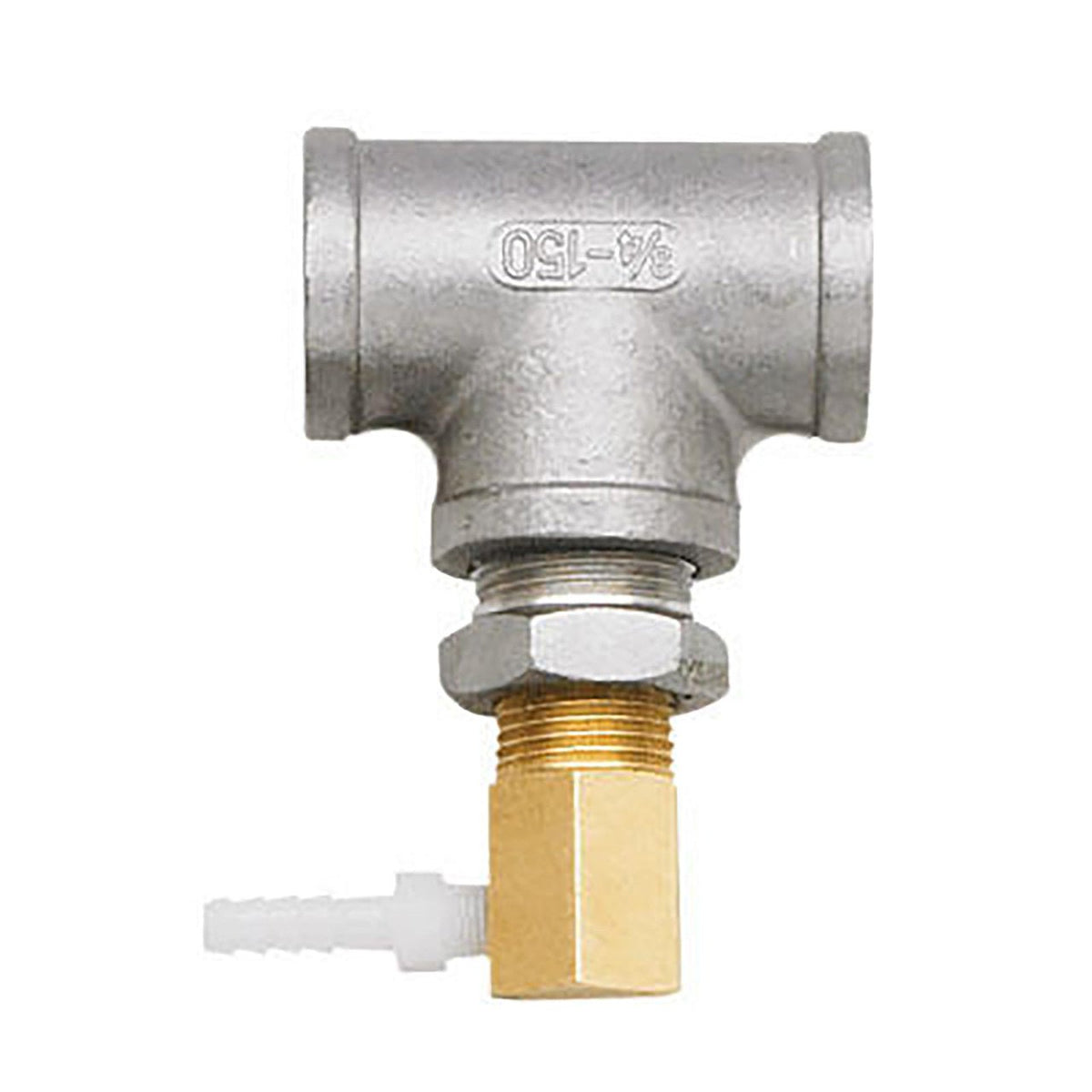

VIQUA 650537 UV CoolTouch Temperature Management Valve 3/4"
VIQUA 650537 UV CoolTouch Temperature Management Valve 3/4"
Description
The CoolTouch Valve is a temperature manager for VIQUA UVMAX D, D+, D4, and D4+ Series UV systems or any system with 3/4" MNPT outlet connection. This piece of equipment is useful because the UV system can overheat without constant water flow. To prevent this, the CoolTouch Valve releases small amounts of water when the system reaches temperatures in excess of 95° fahrenheit or 35° Celsius.
Manager Control Valve for: VIQUA D, D+, D4, D4+, D4 Premium UV Systems.
Q:
What does the VIQUA 650537 CoolTouch valve do?
A:
It helps manage elevated chamber temperature during extended no-flow periods by releasing a small amount of water when temperature reaches its operating threshold.
Q:
Which systems use the VIQUA 650537?
A:
The catalog lists: PUV-8-P, UVMax D4, UVMax D4 Plus, D4 (650694-R), D4 Premium (660089-R), D4+ (650695-R), D4-V (660039-R), D4-V+ (660042-R), IHS22-D4. Confirm the exact model and part number on your equipment before ordering VIQUA 650537.
Q:
What connection size does it use?
A:
This version uses 3/4-inch connections. Match the piping size and installation orientation specified in the system manual.
Q:
At what temperature does it operate?
A:
The listing identifies an operating point around 95°F (35°C). It is a temperature-management accessory, not a general pressure-relief valve.
Q:
Does it require electricity?
A:
The thermal valve itself operates from water temperature, but the UV system still requires its normal electrical supply. Follow the installation drawing for the drain path.
Q:
What should be verified after installation?
A:
Check connections for leaks, make sure discharged water has an appropriate destination, and confirm the valve is not obstructed or isolated from the chamber.
