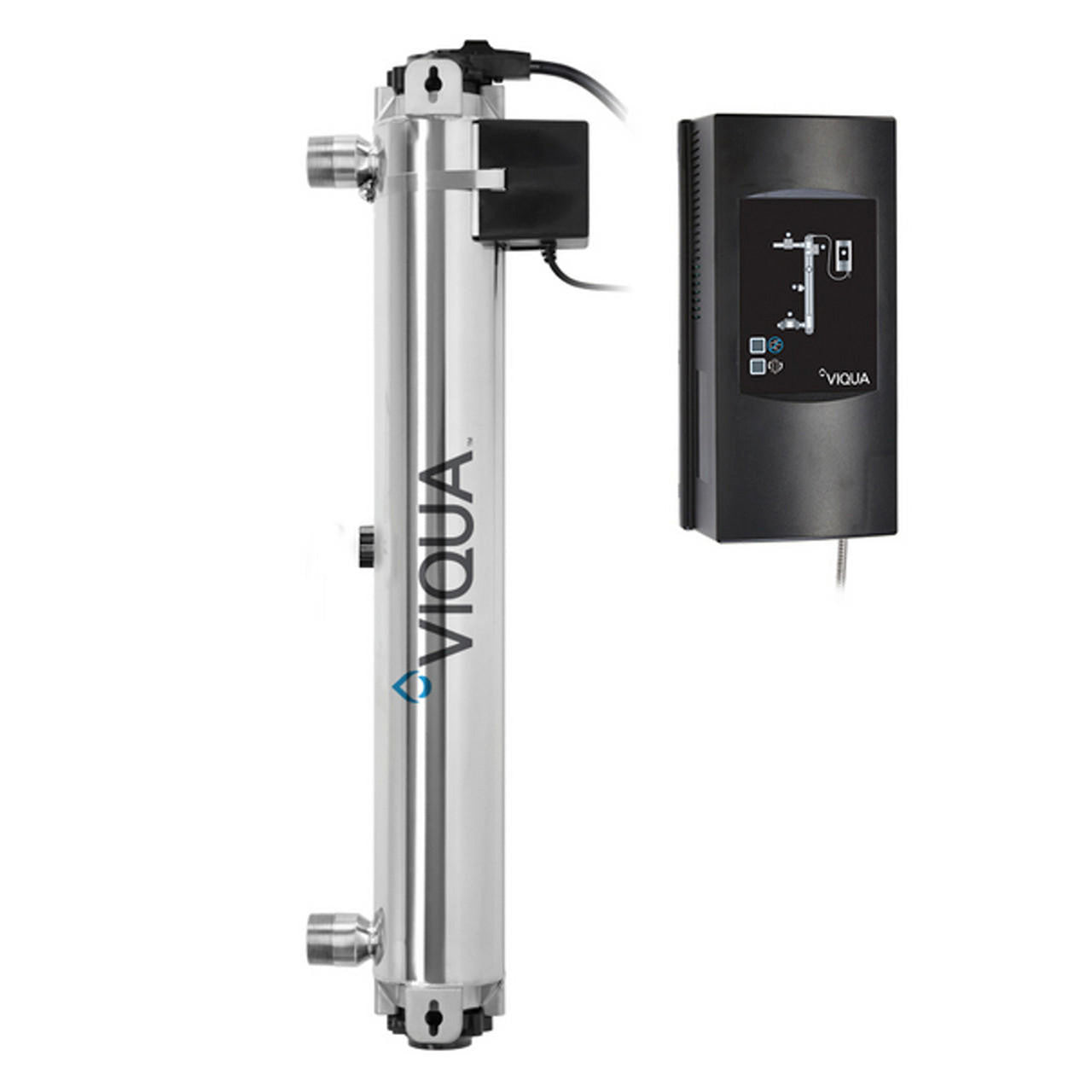

VIQUA 650651 H UV System, 45 GPM, 1" and 1.25" NPT
VIQUA 650651 H UV System, 45 GPM, 1" and 1.25" NPT
Description
The VIQUA H UV commercial system incorporates the latest lamp technology to provide greater UV power than standard UV lamps plus includes VIQUA's Cool-Touch fan technology. The VIQUA H features an amalgam lamp that provides higher strength and up to 2 years of lamp life. Rated at 45 GPM, H model systems will meet most commercial needs while being capable of 100-240V, 50-60Hz.
To request international electrical plug types “F” (Europe), “G” (UK), and “I” (Australia) be included with your system at no charge, please email customer support, after ordering.

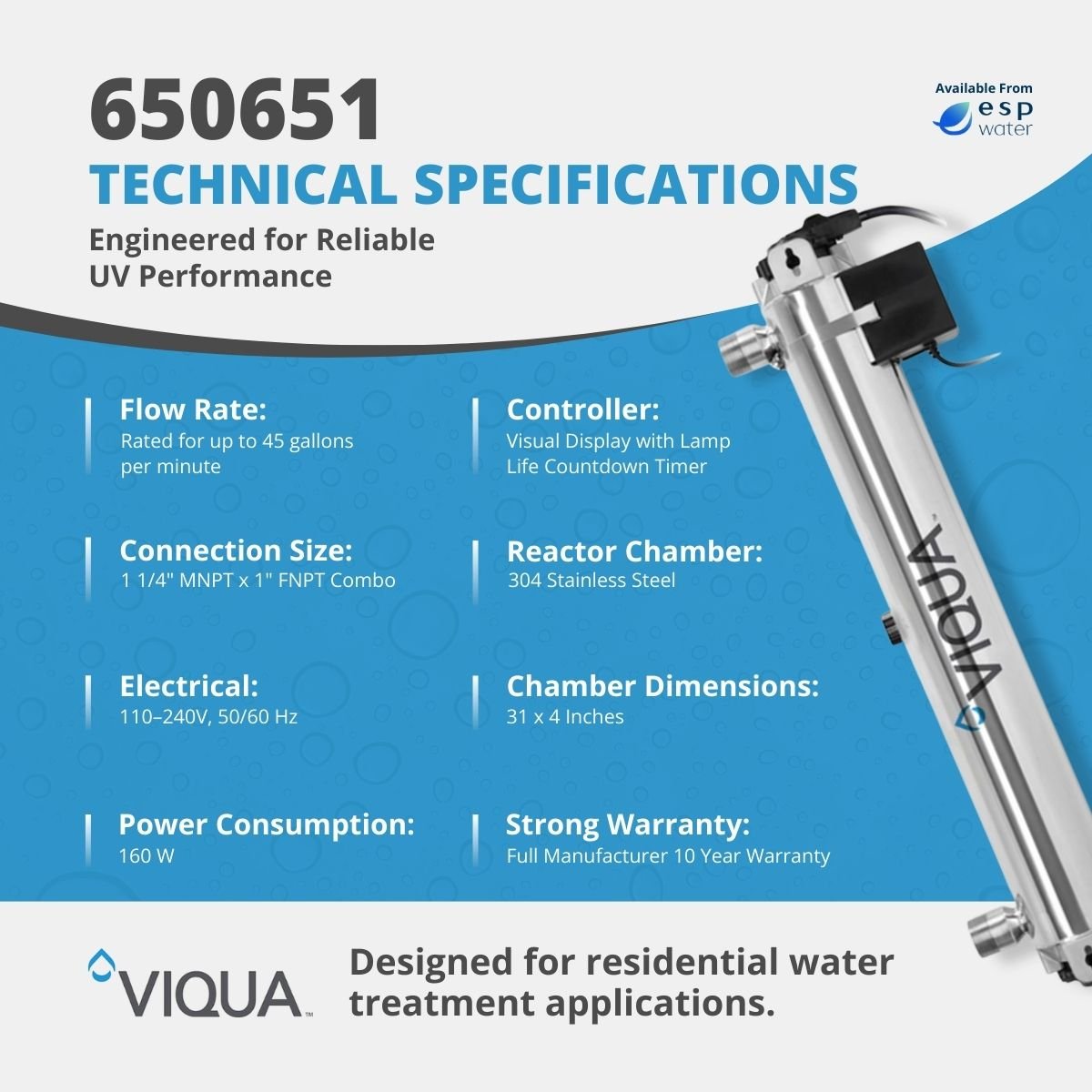

- Flow Rate: 45 Gallons Per Minute
- Application: Point-of-Entry
- Power: 100-240V 50-60Hz 160W N. American Plug
- Chamber Dimensions: 31" x 4"
- Inlet Dimensions: 1" FPT and 1-1/4" MPT
- Outlet Dimensions: 1" FPT and 1-1/4" MPT
- Electrical Plug Types Available: North & Central America, Japan (B or NEMA 5-15P), Europe, Brazil, Russia (F or CEE 7/7)
Replacements & Add Ons
Helpful Info & Downloads
Q:
What flow rate is the VIQUA H 650651 designed for?
A:
It is rated for up to 45 GPM under the manufacturer’s specified conditions. Size a UV system to peak simultaneous flow, not average daily use.
Q:
What plumbing and power does it require?
A:

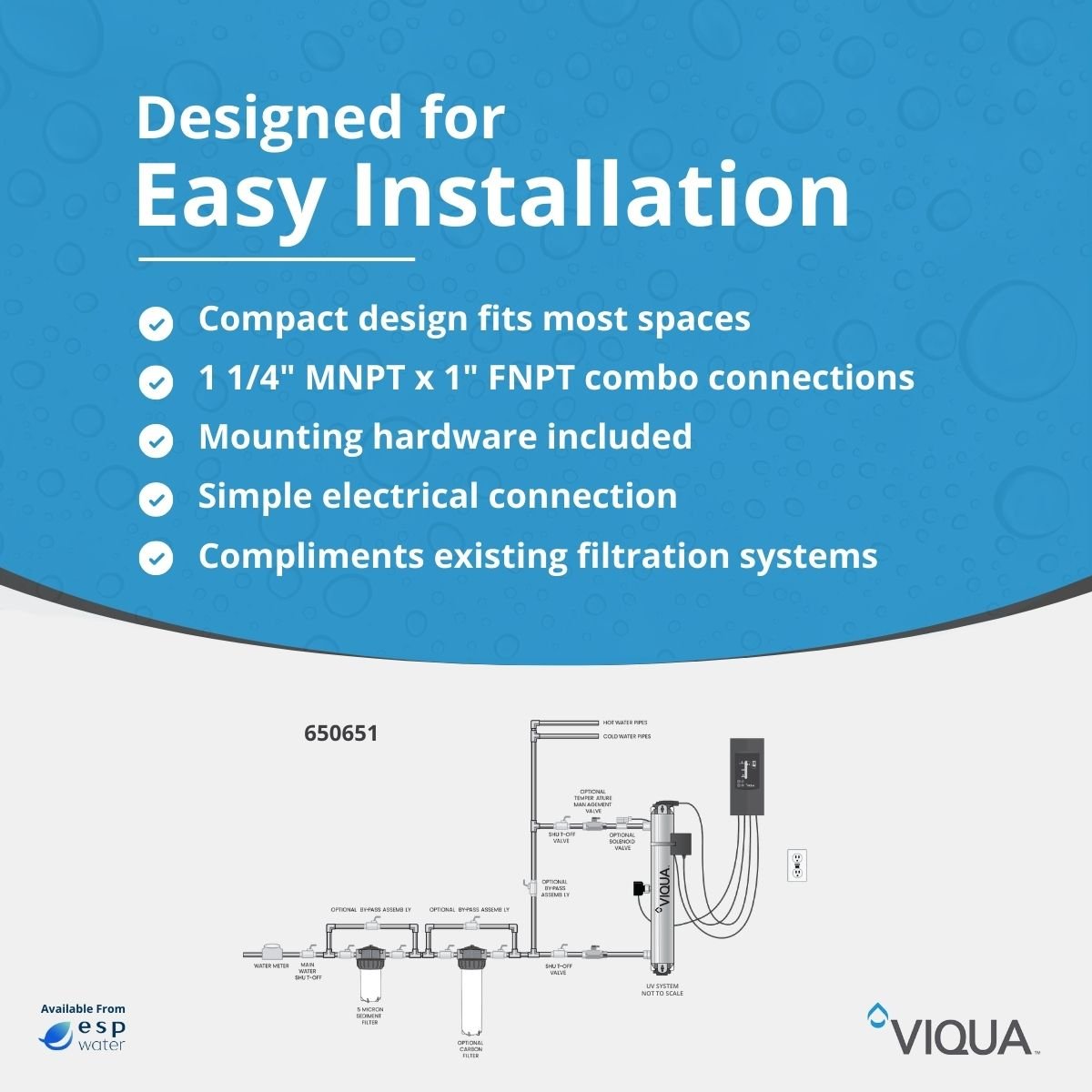

The system uses 1-inch and 1.25-inch NPT connections and 100–240 V, 50–60 Hz power. Confirm pipe size, available electrical service, bypass layout, drainage, and service clearance before purchase.
Q:
What features distinguish this model?
A:
This commercial model uses a high-output amalgam lamp rated for a longer service interval and CoolTouch fan-based temperature management.
Q:
Where should the VIQUA H 650651 be installed?
A:
Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and other upstream treatment so water conditions stay within specifications.
Q:
What routine maintenance is required?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Track alarms and operating hours rather than relying on visible lamp glow.
Q:
Which service parts should I plan for?
A:
Plan for the correct two-year amalgam lamp, quartz sleeve, seals, and any cooling-fan or controller service parts listed for 650651.
