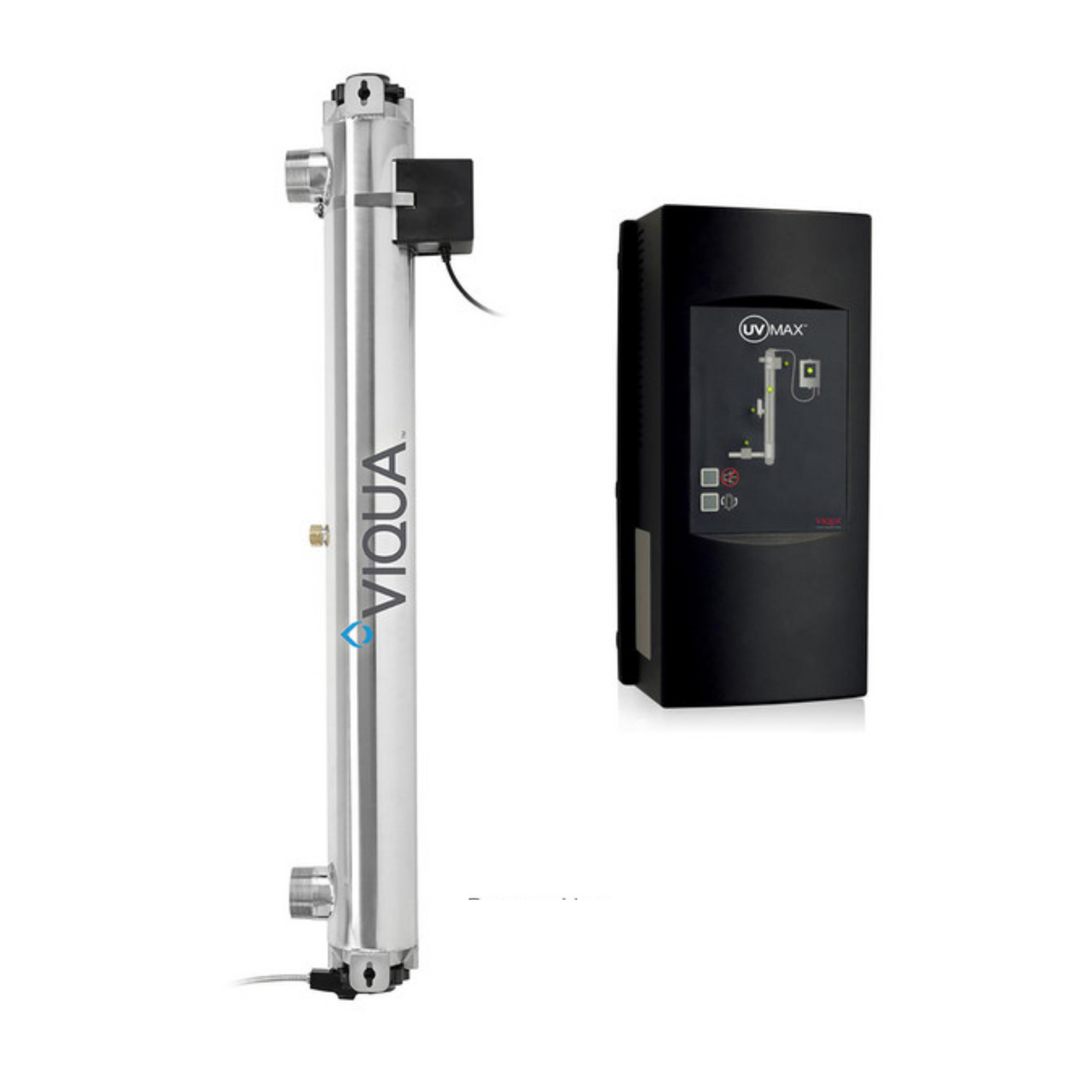

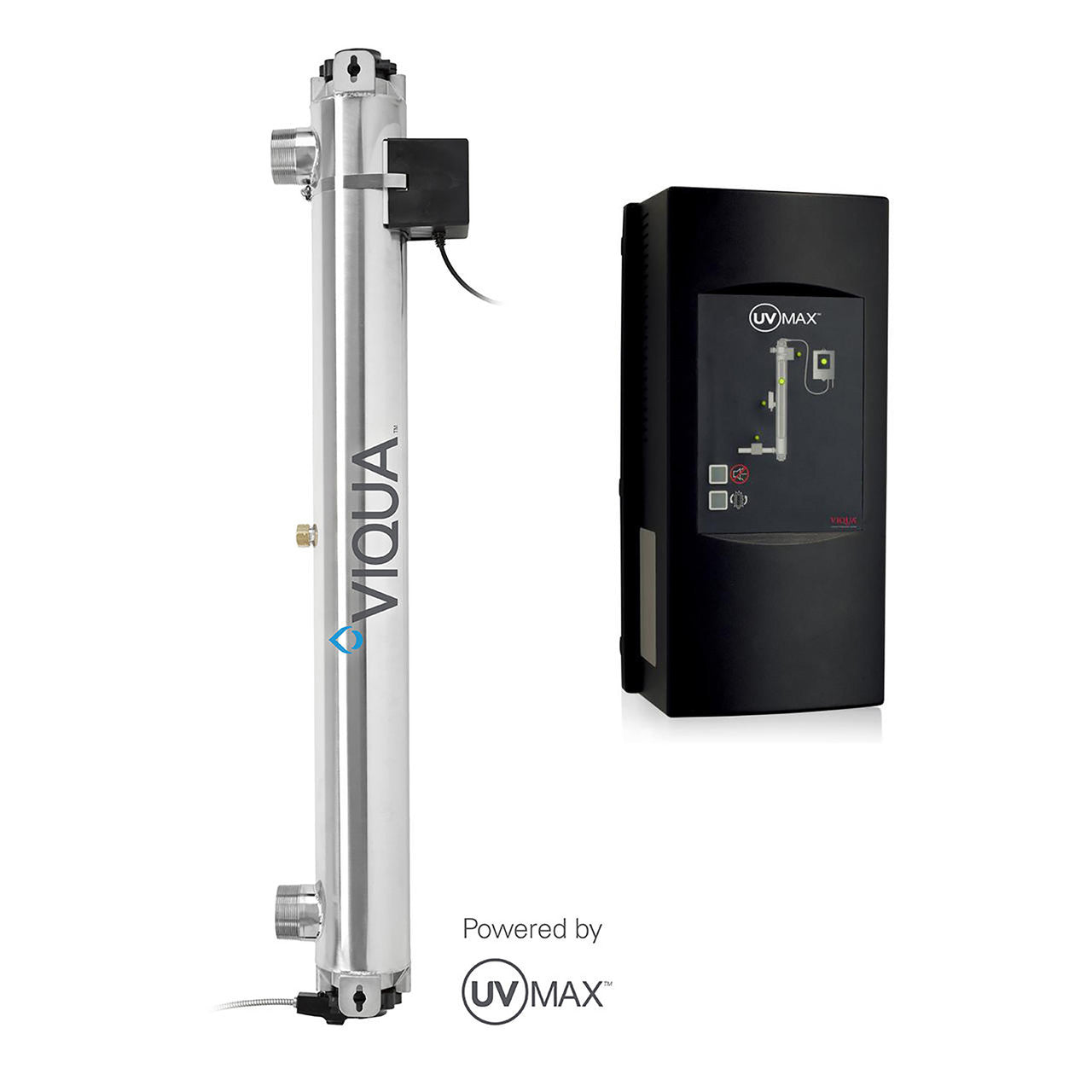

VIQUA 660001-R K UV System 80 GPM 2" MNPT
VIQUA 660001-R K UV System 80 GPM 2" MNPT
Description
The VIQUA K model UV system is a high-flow, commercial unit designed to treat flow rates of up to 80 GPM. The VIQUA K features an amalgam lamp that provides higher strength and up to 2 years of lamp life. These systems come equipped with several accessories for easier maintenance plus are capable of 100-240V, 50-60Hz.
To request international electrical plug types “F” (Europe), “G” (UK), and “I” (Australia) be included with your system at no charge, please email customer support, after ordering.
- Flow Rate: 80 Gallons Per Minute
- Application: Point-of-Entry
- Power: 100-240V 50-60Hz 230W N. American Plug
- Chamber Dimensions: 41" x 4"
- Inlet Dimensions: 2" MPT
- Outlet Dimensions: 2" MPT
Replacements & Add Ons
Helpful Info & Downloads
Q:
What flow rate is the VIQUA K 660001-R designed for?
A:
It is rated for up to 80 GPM under the manufacturer’s specified conditions. Size the system to peak simultaneous flow, not average daily use.
Q:
What plumbing and power does it require?
A:
It uses 2-inch male NPT connections and operates from 100–240 V, 50–60 Hz power unless the selected configuration states otherwise. Confirm bypass, drainage, and service clearance.
Q:
Does the VIQUA K 660001-R include UV output monitoring?
A:
No. This K configuration does not add the plus-model UV sensor; confirm whether monitored output is required for the application.
Q:
Where should the system be installed?
A:
Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and any other upstream treatment needed to keep water conditions within specification.
Q:
What routine maintenance is required?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Respond to controller alarms rather than relying on visible lamp glow.
Q:
Which service parts should I plan for?
A:
Plan for the correct two-year amalgam lamp, quartz sleeve, seals, controller parts, and commercial-system accessories.
