VIQUA VP950M UV System with Sensor 34 GPM 1.5" MNPT
VIQUA VP950M UV System with Sensor 34 GPM 1.5" MNPT
Description
An upgraded version of the VP950, the VIQUA VP950M comes equipped to not only treat flow rates of up to 34 GPM but also to monitor the actual UV intensity of the lamp. This keeps you informed and provides peace of mind that your system is performing to standard. Capable 100-240V, 50-60Hz.
To request international electrical plug types “F” (Europe), “G” (UK), and “I” (Australia) be included with your system at no charge, please email customer support, after ordering.

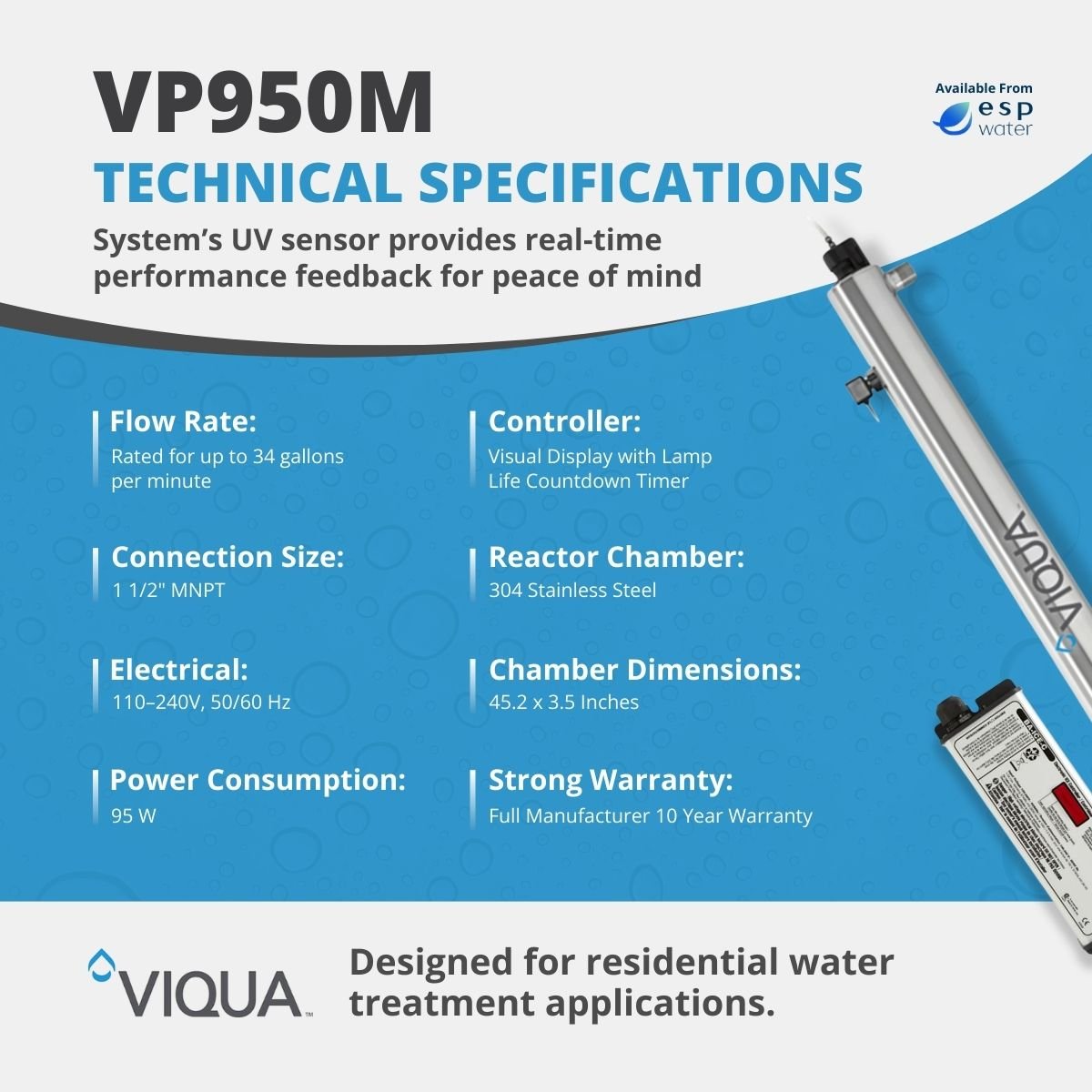

- Flow Rate: 34 Gallons Per Minute
- Application: Point-of-Entry
- Power: 100-240V 50-60Hz 95W N. American Plug
- Overall Dimensions: 45" x 3.5"
- Inlet Dimensions: 1.5" MPT
- Outlet Dimensions: 1.5" MPT
Replacements & Add Ons
Helpful Info & Downloads
Q:
What flow rate is the VIQUA VP950M designed for?
A:
It is rated for up to 34 GPM under the manufacturer’s specified conditions. Size the system to peak simultaneous flow, not average daily use.
Q:
What plumbing and power does it require?
A:
It uses 1.5-inch male NPT connections and operates from 100–240 V, 50–60 Hz power unless the selected configuration states otherwise. Confirm bypass, drainage, and service clearance.
Q:

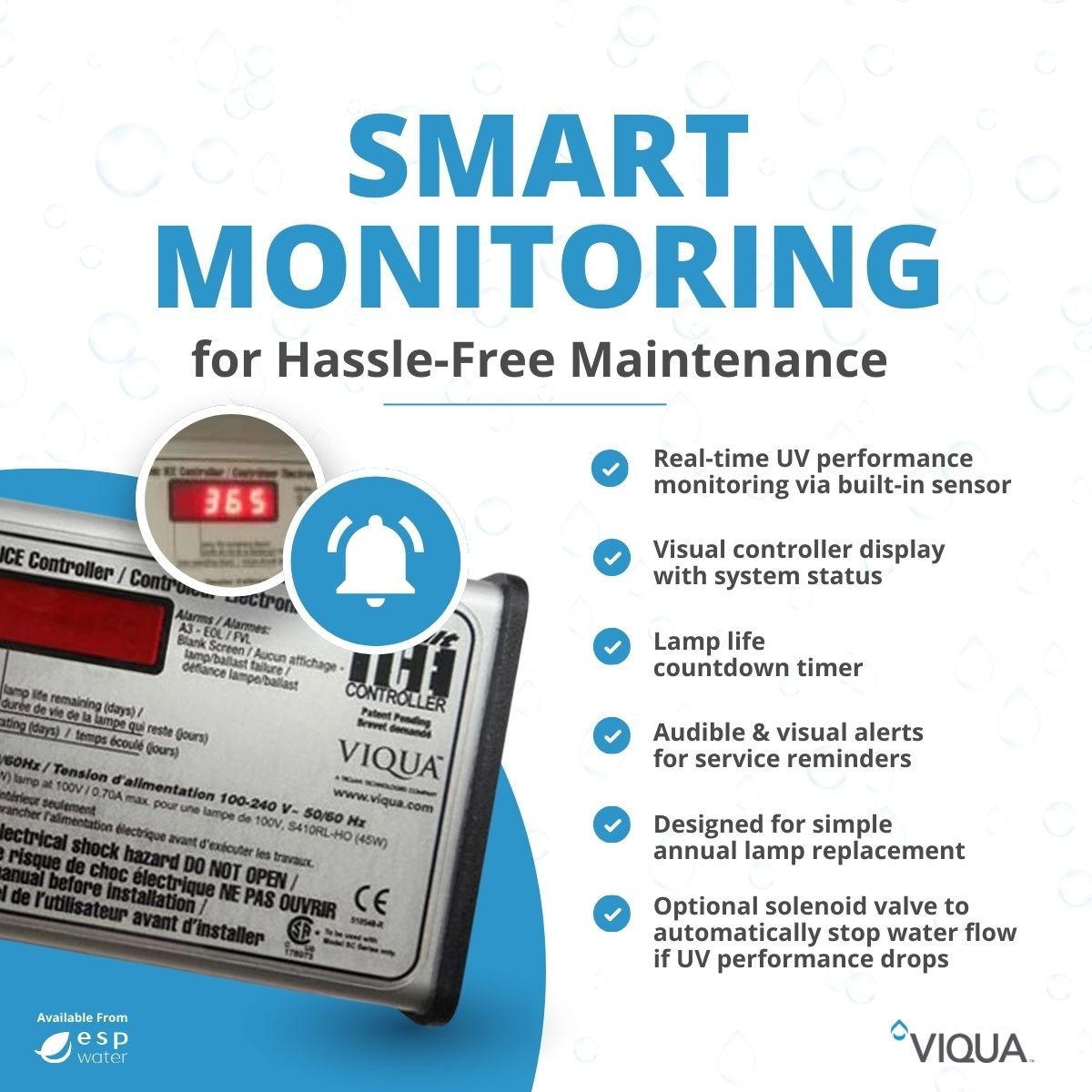

Does the VIQUA VP950M include UV output monitoring?
A:
Yes. The M model includes a UV sensor for continuous output monitoring.
Q:
Where should the system be installed?
A:

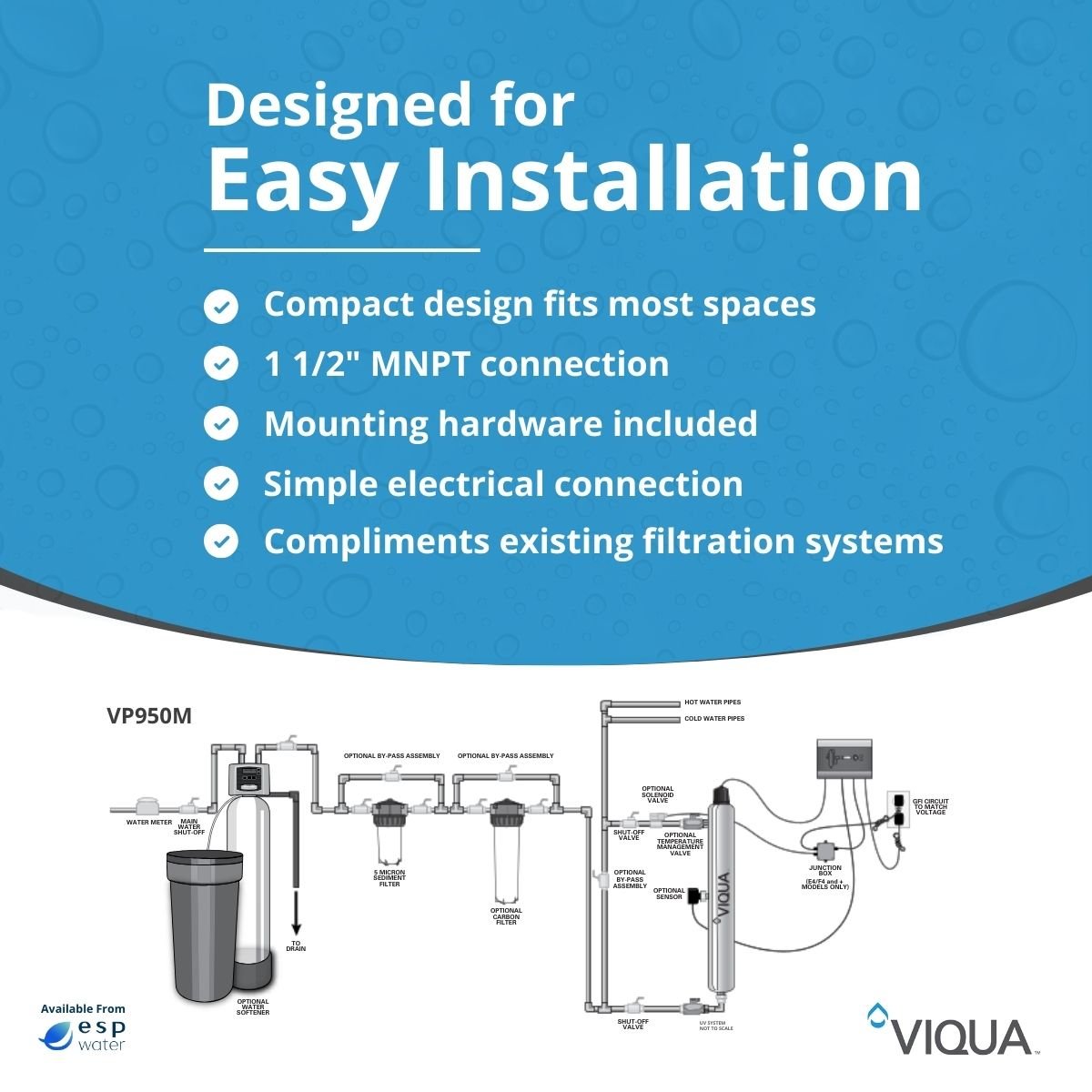

Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and any other upstream treatment needed to keep water conditions within specification.
Q:
What routine maintenance is required?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Respond to controller alarms rather than relying on visible lamp glow.
Q:
Which service parts should I plan for?
A:
Plan for the S950RL-HO lamp, QSO-950 sleeve or QL-950 kit, seals, 254NM-C1 sensor, and controller parts.
