Luminor RLQ-1000A UV Lamp and Sleeve for LR5-851, LR5-1751
Luminor RLQ-1000A UV Lamp and Sleeve for LR5-851, LR5-1751
Subscription Details
Automatic deliveries and charges at your selected frequency. Skip, reschedule, or cancel through your subscription account. View subscription details.
Description

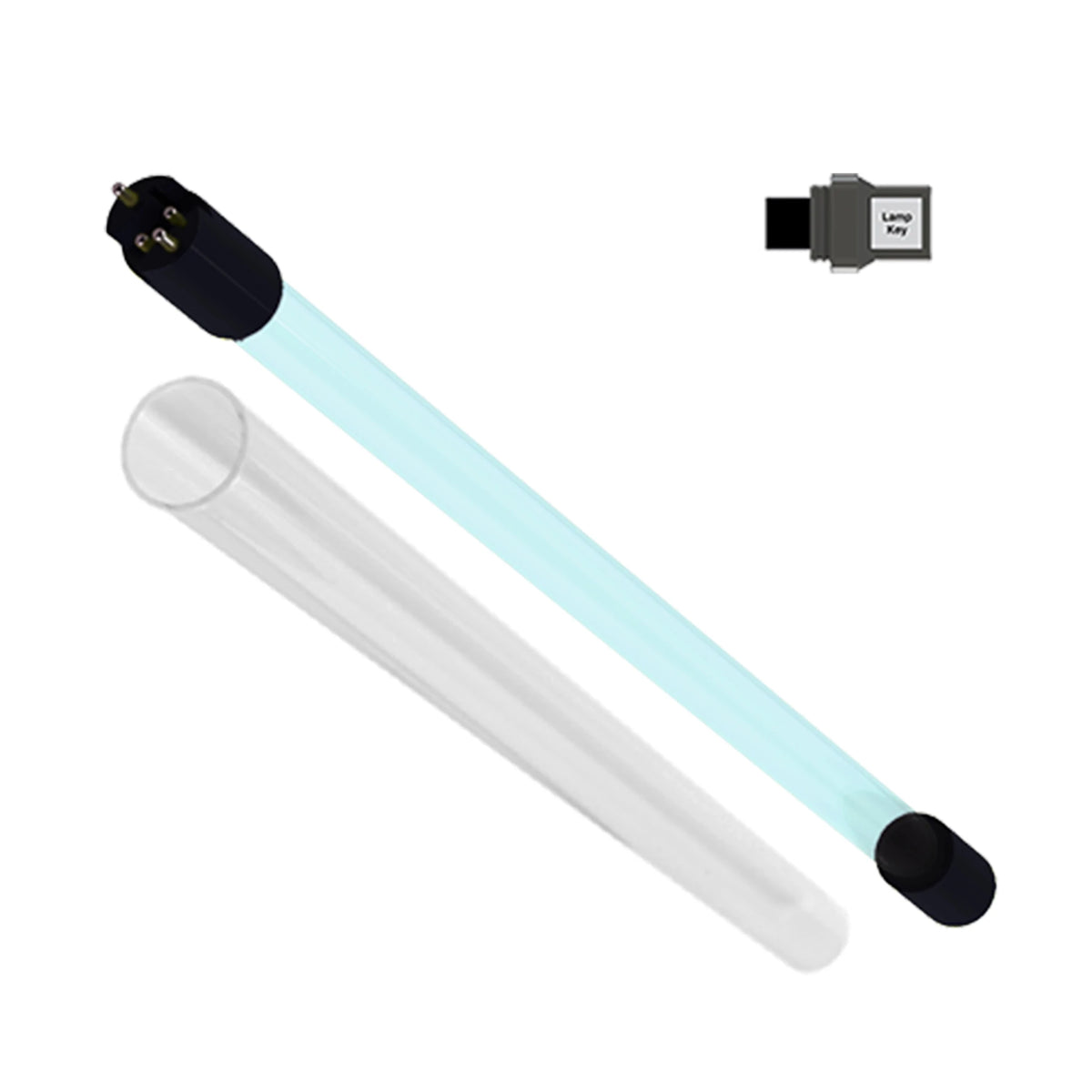

The RLQ-1000A bundles a genuine RL-1000A UV lamp and RQ-1000 quartz sleeve for Rainier light commercial UV water treatment systems. Both parts are authentic Luminor components, tested and certified together as a complete unit, so your system keeps performing the way it was originally certified.
How many kits does your system need? The 85 GPM "-851" systems use a single-lamp chamber and need one RLQ-1000A. The 175 GPM "-1751" systems use a dual-lamp chamber and need two RLQ-1000A kits. Check your chamber before ordering so you get the right quantity.
The lamp is rated for 12,000 hours of use, about 12 months of continuous operation, and runs on universal voltage. Luminor recommends replacing it every 12 months or 12,000 hours, whichever comes first. The quartz sleeve should be replaced every 24 months, or sooner if it's visibly scaled, cloudy, or damaged.
Why genuine Luminor parts matter Luminor tests and certifies its UV systems as a complete lamp, chamber, and sleeve unit. Non-Luminor parts can differ in output or quartz quality, which voids the system's certification and can affect your warranty coverage.
Fits these Luminor Rainier systems
- LR5-851 (1 lamp and sleeve)
- LR6-851 (1 lamp and sleeve)
- LR5-851-50 (1 lamp and sleeve, low-UVT crossover)
- LR6-851-50 (1 lamp and sleeve, low-UVT crossover)
- LR5-1751 (2 lamps and sleeves)
- LR6-1751 (2 lamps and sleeves)
- LR5-1751-50 (2 lamps and sleeves, low-UVT crossover)
- LR6-1751-50 (2 lamps and sleeves, low-UVT crossover)
- Includes RL-1000A and RQ-1000
- Replace lamp every 12 months
- Replace sleeve every 24 months or as needed
Helpful Info & Downloads
Q:
How many RLQ-1000A kits do I need for my system?
A:
It depends on your chamber size. The 85 GPM "-851" systems (LR5-851, LR6-851, and their low-UVT "-50" versions) use a single-lamp chamber and need one RLQ-1000A. The 175 GPM "-1751" systems (LR5-1751, LR6-1751, and their "-50" versions) use a dual-lamp chamber and need two RLQ-1000A kits. Check your chamber before ordering.
Q:
What's included in the RLQ-1000A kit?
A:
The kit includes one genuine RL-1000A UV lamp, one RQ-1000 quartz sleeve, and a lamp key.
Q:
How often should I replace the lamp and sleeve?
A:
Replace the RL-1000A lamp every 12 months or 12,000 hours of use, whichever comes first. Replace the RQ-1000 quartz sleeve every 24 months, or sooner if it's visibly scaled, cloudy, or damaged.
Q:
Can I buy just the lamp or just the sleeve instead of the full kit?
A:
Yes. The RL-1000A lamp and RQ-1000 sleeve are also sold separately if you only need to replace one part.
Q:
Does the RL-1000A lamp in this kit also fit Luminor Everest systems?
A:
The RL-1000A lamp itself is also used in Luminor Everest LE5/LE6-A42, A62, and A72 industrial systems (standard, hot-water, and low-UVT versions). However, Everest systems use a different quartz sleeve (RQ-K2), not the RQ-1000 included in this kit, so this RLQ-1000A kit is intended for the Rainier systems listed above. If you have an Everest system, see the RL-1000A lamp page or contact us to source the correct sleeve.
