Description
The RQ-500 is a genuine Luminor replacement quartz sleeve for LUMINOR RAINIER LR5-355 and LR6-355 light commercial UV systems, and their low-UVT "-50" variants. It is an authentic Luminor part, not a compatible aftermarket substitute, so it keeps your system performing the way it was originally tested and certified.

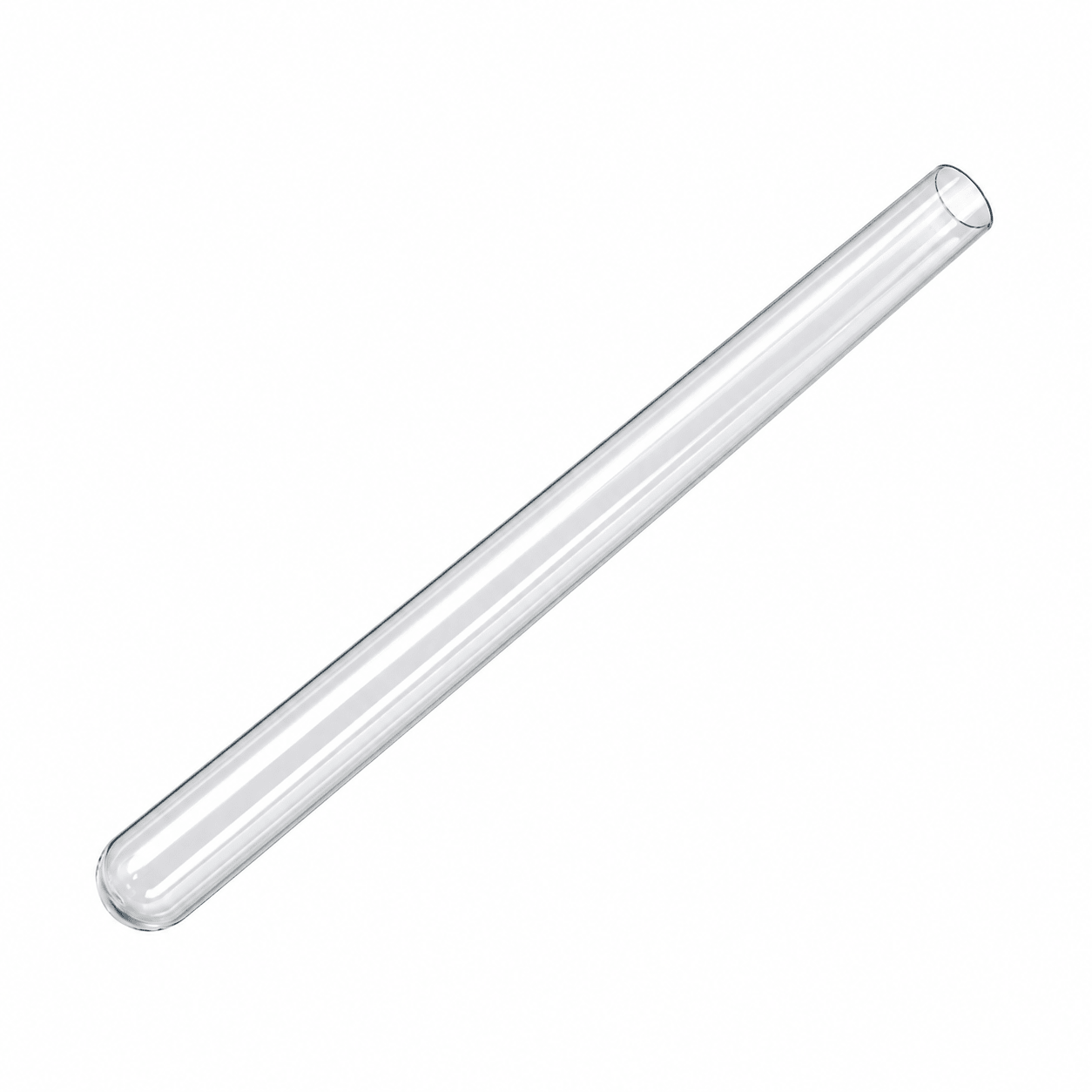

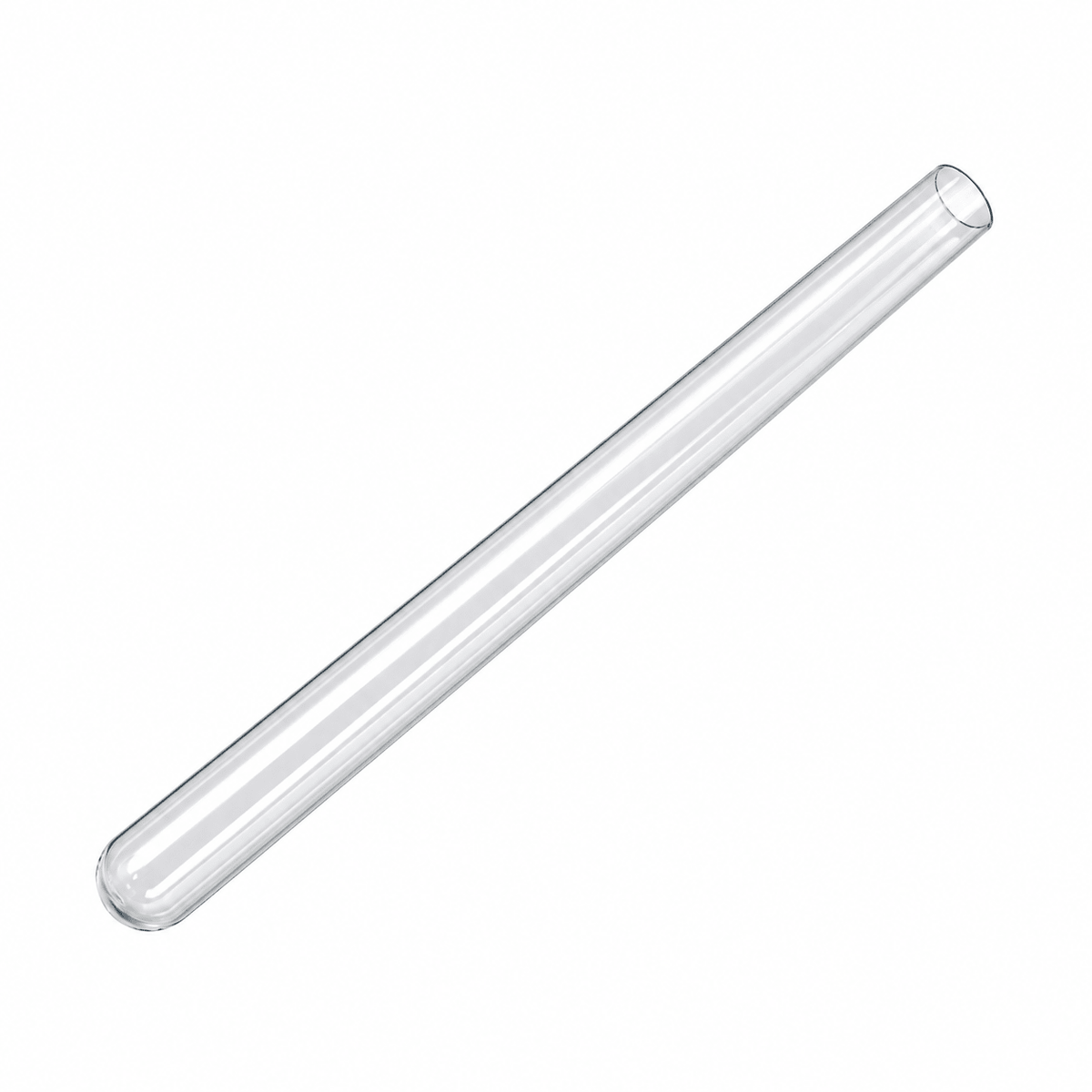

The sleeve is an open-style quartz tube that surrounds the UV lamp, letting UV-C light pass through to the water while keeping the lamp itself dry and at the right operating temperature. Luminor recommends replacing it every 24 months, or sooner if it's visibly scaled, cloudy, scratched, or pitted.
Why the sleeve needs replacing, even though it's not a wear part like the lamp
Unlike the lamp, the quartz sleeve doesn't burn out on a fixed schedule. Instead, mineral scale and staining build up on its surface over time, gradually blocking UV-C transmission even if the lamp inside is brand new. Annual cleaning with a scale remover can restore clarity for a while, but once a sleeve is scratched, pitted, or stays cloudy after cleaning, it needs to be replaced rather than cleaned again.
Why a genuine Luminor sleeve matters
Luminor tests and certifies its UV systems as a complete unit: lamp, chamber, and sleeve together. An authentic RQ-500 keeps your system's UV dose where it was certified. A non-Luminor sleeve can differ in wall thickness or quartz quality, which changes how much UV-C actually reaches the water, and can affect your warranty coverage if a problem comes up later.
Fits these Luminor Rainier systems
- LR5-355
- LR6-355
- LR5-355-50 (low-UVT crossover)
- LR6-355-50 (low-UVT crossover)
All four models above pair the RQ-500 sleeve with the RL-500A lamp.
Complete your replacement The RQ-500 is the sleeve only. For the full replacement:
- Luminor RL-500A UV Replacement Lamp, the lamp that goes inside this sleeve. Replace every 12 months, or after 12,000 hours of use.
- Luminor RLQ-500A UV Lamp and Sleeve Kit, which bundles the RL-500A lamp and RQ-500 sleeve together for LR5-355 and LR6-355.
- Replace every 24 months or as needed
- Length: 25" (635mm)
- Style: Open
Helpful Info & Downloads
Q:
How do I know if the RQ-500 is the right sleeve for my system?
A:
Check the model number on your system's nameplate. The RQ-500 fits LR5-355, LR6-355, and their low-UVT "-50" variants. If your model has a "LB" or "LBH" prefix, you have a residential BLACKCOMB system and need a different sleeve.
Q:
Can I clean my quartz sleeve instead of replacing it?
A:
Yes, in many cases. Luminor recommends wiping the sleeve with a scale remover like CLR or Lime-A-Way and a soft, lint-free cloth at least once a year, more often if you have hard water or high iron and manganese levels. Keep moisture out of the sleeve's interior during cleaning and let it dry completely before reinstalling.
Q:
How do I know when cleaning isn't enough and I need a new sleeve?
A:
If the sleeve stays cloudy or has a persistent white film after cleaning, or if you notice scratches or pitting on the surface, cleaning won't restore it and it's time to replace it. Physical damage to the quartz can't be cleaned away, and a scratched or pitted sleeve won't transmit UV-C the way it should. Even without visible damage, we recommend replacing the sleeve every 24 months as routine maintenance, since UV transmission can decline gradually in ways that aren't obvious just by looking at it.
Q:
What happens if I keep using a scaled or cloudy sleeve instead of replacing it?
A:
UV-C has to pass through the sleeve to reach the water, so scale buildup or cloudiness reduces how much disinfecting UV dose actually gets delivered, even with a healthy lamp inside. Left long enough, this can drop UV output below what your system needs for effective treatment.
Q:
Will a non-Luminor replacement sleeve work in my Rainier system?
A:
It may physically fit, but Luminor systems are certified as a complete lamp-and-system unit, and sleeve wall thickness and quartz quality affect how much UV-C reaches the water. A non-Luminor sleeve can change that dose and can affect your warranty if an issue comes up.
