VIQUA QSO-410 UV Quartz Sleeve for VH410, VH410M, VH410-F20

A:

The QSO-410 is a genuine VIQUA replacement quartz sleeve specifically designed for the VIQUA VH410, VH410M, and VH410-F20 UV water disinfection systems. It is a double open-ended (DOE) sleeve that surrounds and protects the UV lamp. The VH410 series treats water at 18 GPM and is ideal for larger homes (4-7 bathrooms) or light commercial applications.

A:

The QSO-410 quartz sleeve should be replaced every 24 months (2 years) or as needed. However, if the sleeve becomes cracked, chipped, or remains cloudy after cleaning, it should be replaced immediately regardless of age. Regular cleaning every 6-12 months is recommended depending on water hardness. If mineral buildup becomes permanent and cannot be removed through cleaning, the sleeve must be replaced.

A:

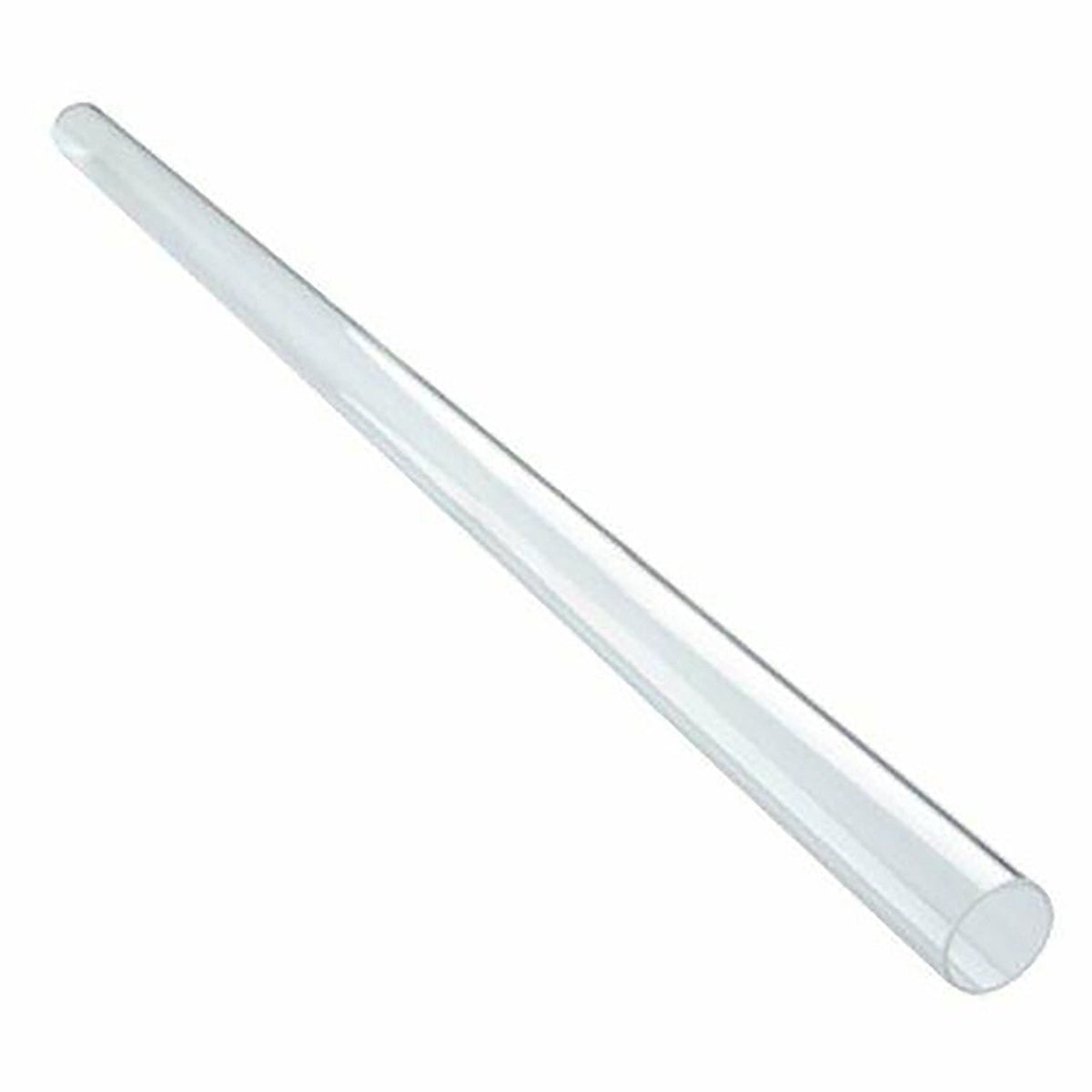

The QSO-410 quartz sleeve specifications are: Length: 21.26 inches (540mm), External diameter: 23mm, Internal diameter: 20mm, Type: Double open-ended (DOE) sleeve. It is made from 100% fused silica quartz with high UV-C transmittance and comes with 2 o-rings included. The sleeve maintains the UV lamp's ideal operating temperature of 104 degrees Fahrenheit for optimal disinfection performance. View product details at https://espwaterproducts.com/products/viqua-qso-410-uv-quartz-sleeve-for-vh410-vh410m-vh410-f20

A:

To clean the QSO-410 sleeve: 1) Turn off power and water supply, depressurize the system, and allow it to cool for 5-10 minutes. 2) Remove the safety cap, lamp plug, UV lamp, and then carefully remove the quartz sleeve. 3) Wearing clean gloves, wipe the sleeve with a soft, lint-free cloth soaked in white vinegar, CLR (Calcium Lime Rust remover), or a mild citric acid solution. 4) Rinse thoroughly with clean water and dry completely before reinstallation. 5) Replace the o-rings and reinstall the sleeve. Clean the sleeve every 6-12 months depending on water hardness, or whenever you replace the UV lamp. For detailed instructions, visit https://espwaterproducts.com/pages/how-to-clean-a-uv-sleeve

A:

The QSO-410 quartz sleeve typically retails for around $80-100 USD. Prices may vary by retailer. The sleeve comes with two replacement o-rings included. This is significantly more affordable than purchasing an entire lamp and sleeve combo kit. Check current pricing at https://espwaterproducts.com/products/viqua-qso-410-uv-quartz-sleeve-for-vh410-vh410m-vh410-f20

A:

The QSO-410 quartz sleeve serves multiple critical functions: 1) Protects the UV lamp from direct water contact, preventing electrical shorting and damage. 2) Maintains the lamp's optimal operating temperature of 104°F for maximum UV output efficiency. 3) Transmits UV-C light from the lamp through to the water for effective disinfection of bacteria, viruses, Cryptosporidium, and Giardia. The high-quality fused silica quartz allows maximum UV light transmittance (95%+ UVT) while keeping the lamp isolated from water and debris. Without a clean, intact sleeve, the VH410 UV system cannot effectively disinfect water at its rated 18 GPM flow rate.

A:

VIQUA strongly recommends using only genuine VIQUA QSO-410 sleeves for several important reasons: 1) Aftermarket replicas may not meet quality standards and testing has shown many do not allow safe UV dosage to pass through. 2) Only genuine VIQUA sleeves are made from 100% fused silica with verified high UV transmittance that is tested for proper fit and performance. 3) Non-genuine sleeves may fail prematurely, compromising water safety and system performance. 4) Using aftermarket parts can void your system warranty and compromise NSF certifications. 5) Genuine VIQUA sleeves undergo rigorous quality control inspection and are manufactured to exact specifications for VH410 series systems.

A:

Replace the QSO-410 sleeve immediately when you notice: 1) Any visible cracks, chips, or breakage in the glass (even small damage requires immediate replacement for safety). 2) Cloudy or white film that persists after thorough cleaning with acid-based solutions like vinegar or CLR. 3) Scratches, pitting, or etching on the sleeve surface that cannot be removed. 4) The sleeve has been in use for 24-36 months (normal replacement schedule). 5) Drop in UV intensity readings if your VH410M system has UV monitoring. 6) The sleeve remains stained or discolored after multiple cleaning attempts. If any of these conditions exist, the sleeve cannot properly transmit UV light at the required levels, and water safety is compromised. Order a replacement at https://espwaterproducts.com/products/viqua-qso-410-uv-quartz-sleeve-for-vh410-vh410m-vh410-f20

A:

Yes, the QSO-410 sleeve can be installed by homeowners following proper safety procedures. The installation process involves: 1) Shutting off water supply and power to the UV system. 2) Depressurizing the system by opening a downstream tap and allowing the system to cool for 5-10 minutes. 3) Removing the safety cap and lamp plug, then carefully removing the UV lamp while wearing clean gloves. 4) Removing the old sleeve and o-rings from both ends. 5) Installing new o-rings on the new QSO-410 sleeve (included with purchase). 6) Inserting the new sleeve into the chamber and reassembling components in reverse order. Always handle the sleeve with clean gloves to avoid oils from your skin. The entire process typically takes 15-20 minutes.

A:

Essential replacement parts for VH410/VH410M/VH410-F20 systems include: 1) UV Lamp (S410RL-HO) - replace every 12 months for optimal disinfection performance. 2) Quartz Sleeve (QSO-410) - replace every 24 months or as needed. 3) Replacement O-rings (410867) - replace annually or when installing new sleeve/lamp for proper sealing. 4) Lamp & Sleeve Combo Kit (QL-410) - convenient bundle for comprehensive annual maintenance that saves money. 5) BA-ICE-CL Controller - if controller fails or for system upgrades. It's recommended to keep a spare quartz sleeve on hand since the glass is fragile and can break during maintenance. Browse all VH410 replacement parts at https://espwaterproducts.com/collections/viqua-vh410-18-gpm
