Description

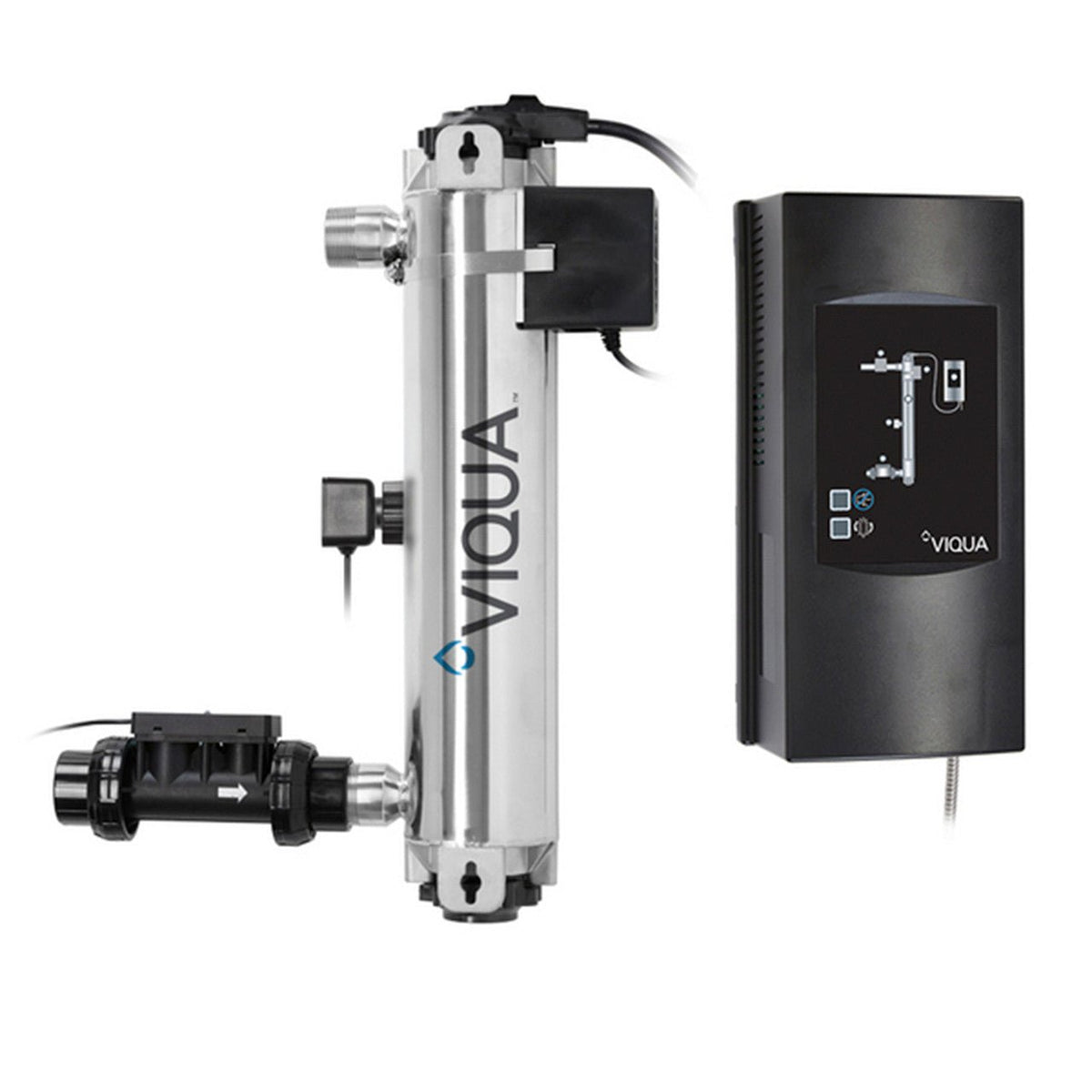

VIQUA PRO10 Model 10 GPM UV System – NFS Class A Certified with LightWise Lamp Dimmer (650647)
The VIQUA Pro10 line of UV systems is a premier choice for both whole-house and light commercial applications. Updated with the latest state-of-the-art accessories for enhanced performance, the Pro10 is one the safest and most dependable UV systems on the market.
Certified to NSF/ANSI Standard 55 Class A, the Pro10 is a Point of Entry (POE) ultraviolet sterilizer designed to treat up to 10 gpm@40mJ/cm² and features an amalgam lamp that provides higher strength as well as up to 2 years of lamp life. The VIQUA Pro10 is capable of 100-240V, 50-60Hz, and is the smallest member of Trojan UVMax Pro Series product line.
To request international electrical plug types “F” (Europe), “G” (UK), and “I” (Australia) be included with your system at no charge, please email customer support, after ordering.

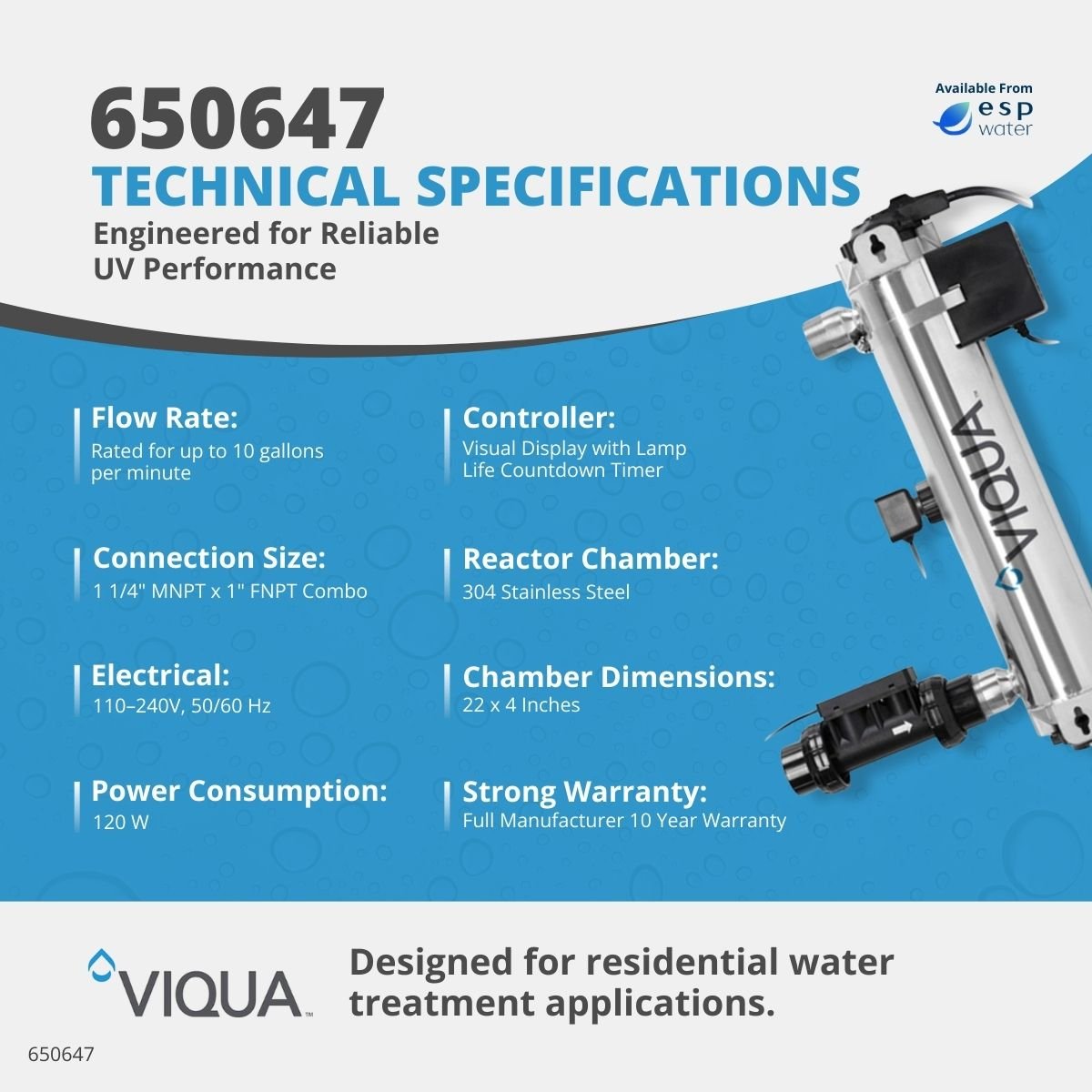

- Flow Rate: 10 Gallons Per Minute
- Application: Point-of-Entry
- Power: 100-240V 50-60Hz 120W N. American Plug
- Chamber Dimensions: 22" x 4"
- Inlet Dimensions: 1-1/4" MPT or 1" FPT
- Outlet Dimensions: 1-1/4" MPT or 1" FPT
Replacements & Add Ons
Q:
What flow rate is the VIQUA PRO10 650647 designed for?
A:
It is rated for up to 10 GPM under its specified conditions. Size the system to peak simultaneous flow, not average daily water use.
Q:
What electrical supply does it require?
A:
This model uses 100–240 V, 50–60 Hz power. Confirm the power source, cord and plug requirements, grounding, and controller location before installation.
Q:
Where is this UV system typically installed?
A:

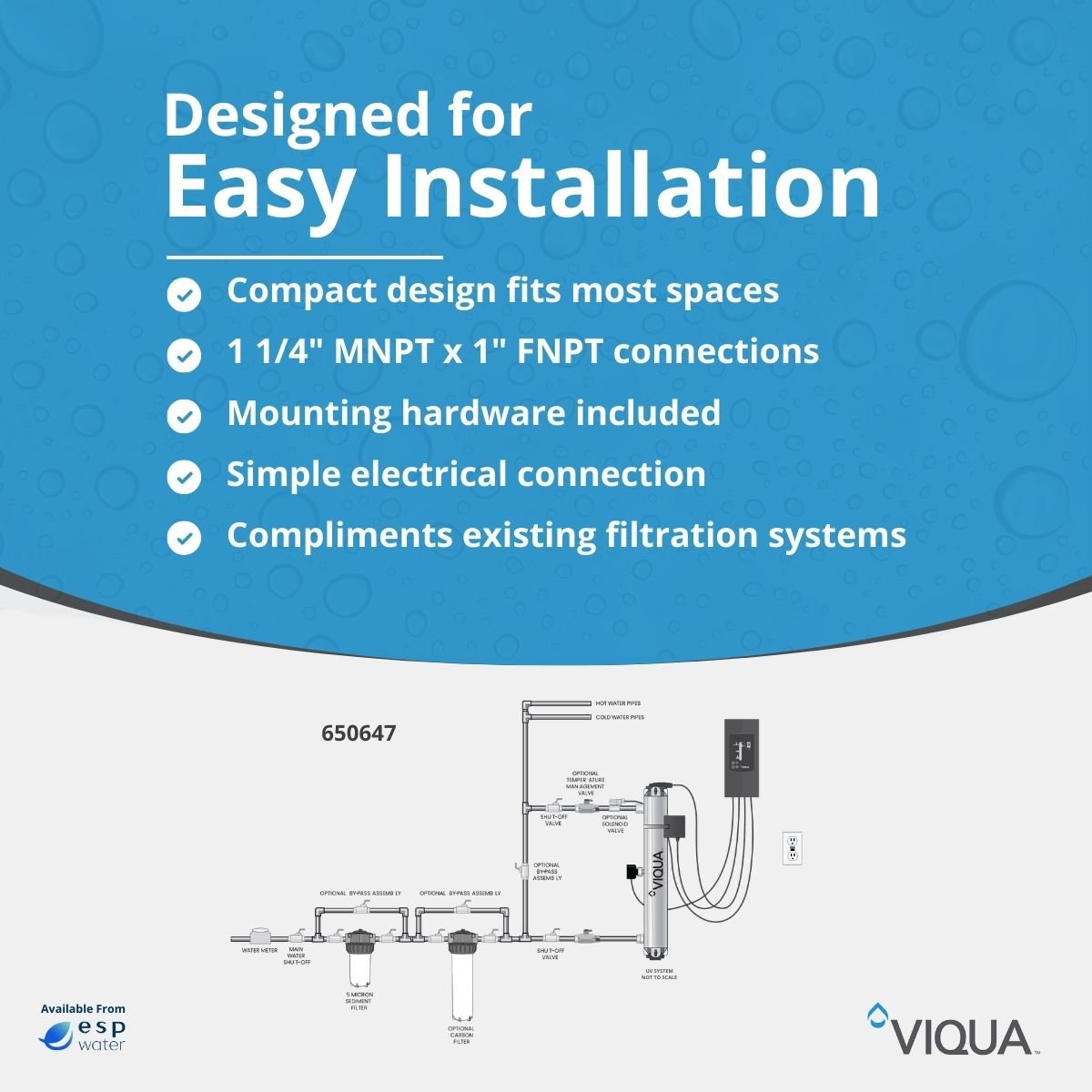

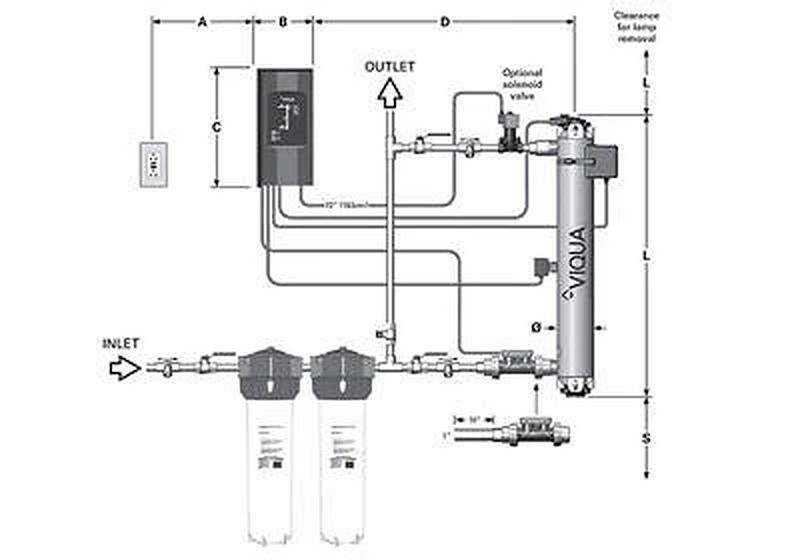

Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and other upstream treatment so water conditions remain within specification.
Q:
What maintenance does the VIQUA PRO10 650647 require?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Track controller alarms rather than relying on visible lamp glow.
Q:
Which replacement parts should I plan for?
A:
Plan for the correct two-year amalgam lamp, quartz sleeve, seals, UV sensor service, and approved controller or valve accessories.
Q:
What else should I know before buying?
A:
The PRO10 is NSF/ANSI 55 Class A certified and uses LightWise lamp dimming. Preserve the certified configuration and installation requirements.
