Description

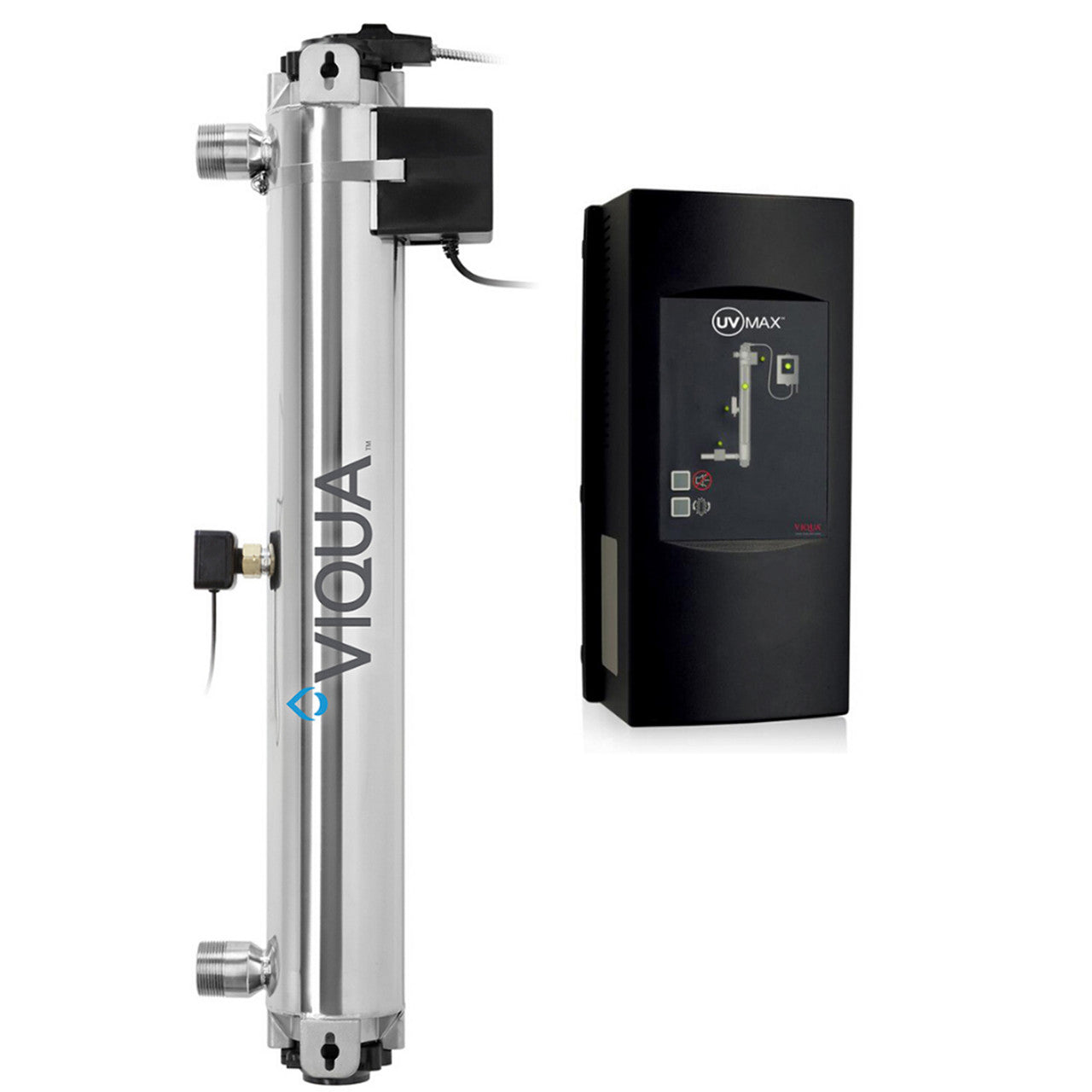

The VIQUA H+ is an advanced version of the H Model UV system is made for commercial purposes and high-flow applications such as restaurants, large office buildings, hotels, schools and more. The H+ incorporates several additional features that supplement its overall performance. The VIQUA H+ features an amalgam lamp that provides higher strength and up to 2 years of lamp life. Capable of 100-240V, 50-60Hz.
To request international electrical plug types “F” (Europe), “G” (UK), and “I” (Australia) be included with your system at no charge, please email customer support, after ordering.

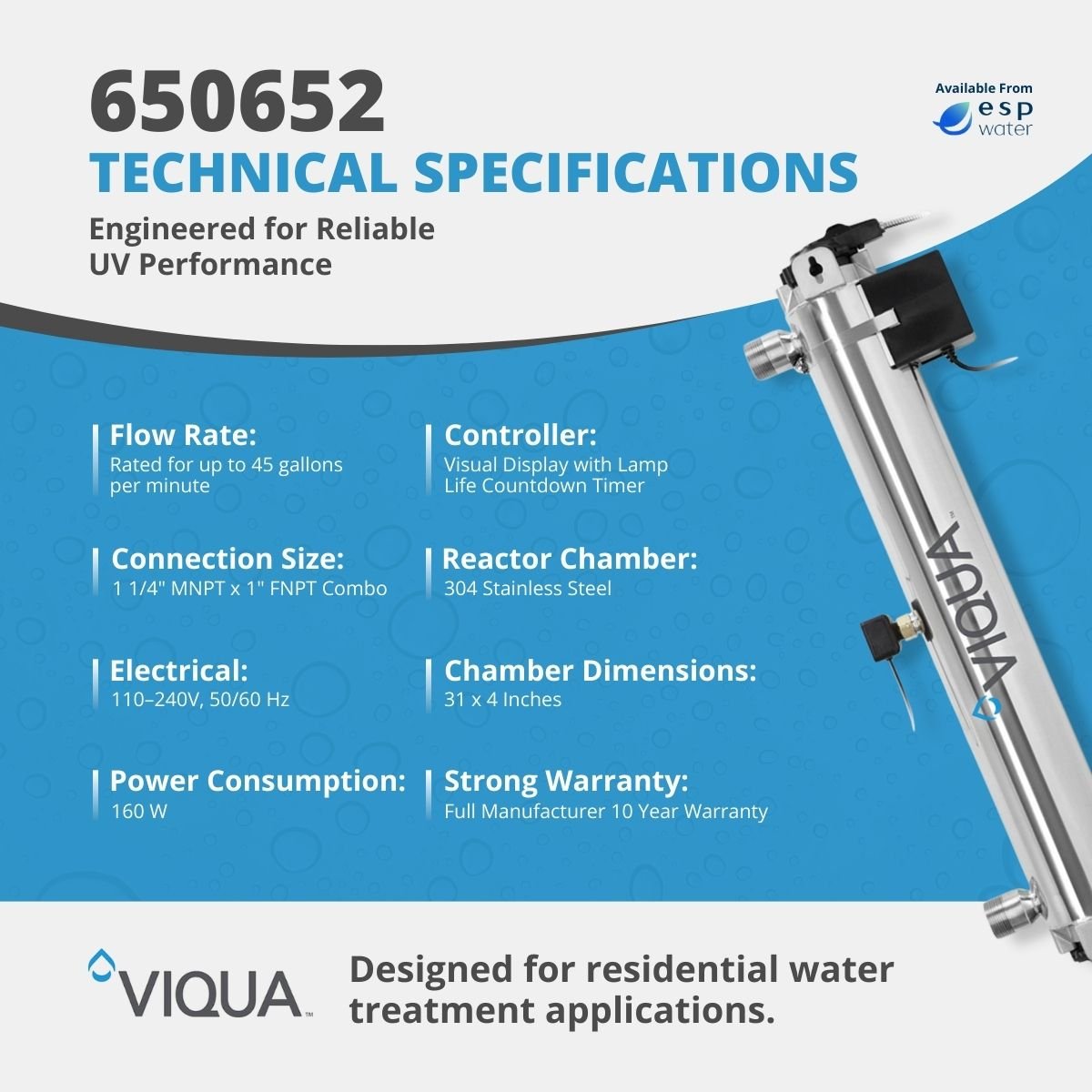

- Flow Rate: 45 Gallons Per Minute
- Application: Point-of-Entry
- Power: 100-240V 50-60Hz 160W N. American Plug
- Chamber Dimensions: 31" x 4"
- Inlet Dimensions: 1" FPT or 1-1/4" MPT
- Outlet Dimensions: 1" FPT or 1-1/4" MPT
Replacements & Add Ons
Q:
What flow rate is the VIQUA H+ 650652 designed for?
A:
It is rated for up to 45 GPM under the manufacturer’s specified conditions. Size a UV system to peak simultaneous flow, not average daily use.
Q:
What plumbing and power does it require?
A:
The system uses 1-inch and 1.25-inch NPT connections and 100–240 V, 50–60 Hz power. Confirm pipe size, available electrical service, bypass layout, drainage, and service clearance before purchase.
Q:
What features distinguish this model?
A:
The H+ adds a UV sensor for real-time output monitoring to the H-series high-output lamp and CoolTouch fan platform.
Q:
Where should the VIQUA H+ 650652 be installed?
A:
Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and other upstream treatment so water conditions stay within specifications.
Q:
What routine maintenance is required?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Track alarms and operating hours rather than relying on visible lamp glow.
Q:
Which service parts should I plan for?
A:
Plan for the matching amalgam lamp, quartz sleeve, seals, UV sensor maintenance, and controller-specific parts for 650652.
