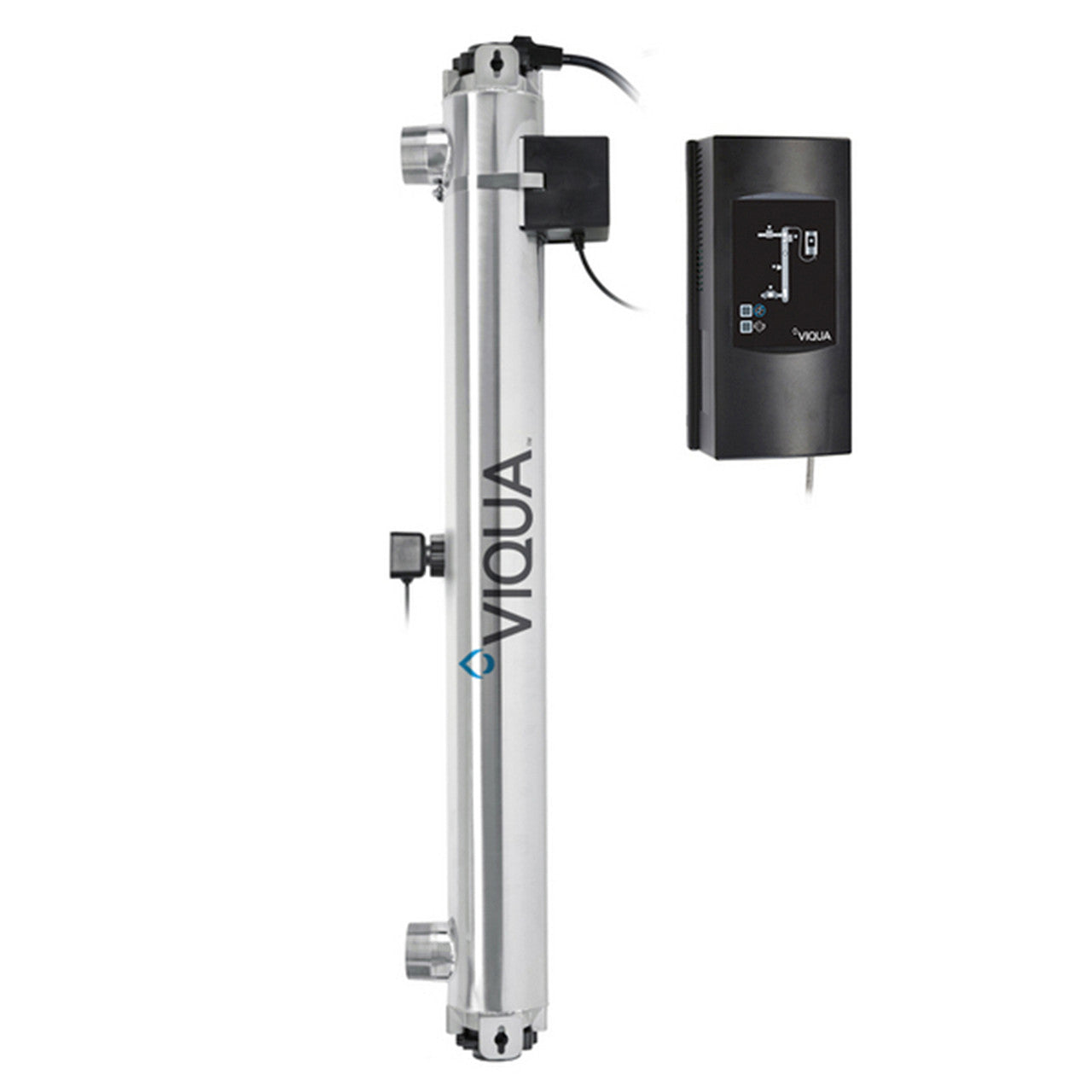

VIQUA 660002-R K+ UV System with Sensor, 80 GPM , 2" MNPT
VIQUA 660002-R K+ UV System with Sensor, 80 GPM , 2" MNPT
Description
VIQUA K+ (K Plus) systems include all the features of the K Model system plus the advanced UV sensor for enhanced system performance tracking. The VIQUA K+ features an amalgam lamp that provides higher strength and up to 2 years of lamp life. The K+ is designed for 80 GPM flow rates and is capable of 100-240V, 50-60Hz.
To request international electrical plug types “F” (Europe), “G” (UK), and “I” (Australia) be included with your system at no charge, please email customer support, after ordering.
- Flow Rate: 80 Gallons Per Minute
- Application: Point-of-Entry
- Power: 100-240V 50-60Hz 230W N. American Plug
- Chamber Dimensions: 41" x 4"
- Inlet Dimensions: 2" MPT
- Outlet Dimensions: 2" MPT
- Electrical Plug Types Available: B – North & Central America, Japan (NEMA 5-25P) F – Europe, Brazil, Russia (CEE 7/7)
Replacements & Add Ons
Q:
What flow rate is the VIQUA K+ 660002-R designed for?
A:
VIQUA lists up to 80 GPM at a 30 mJ/cm² UV dose. The official specifications also list 60 GPM at 40 mJ/cm² and 120 GPM at 16 mJ/cm², so size the system to the required treatment target and peak flow.
Q:
What plumbing connection does the K+ use?
A:

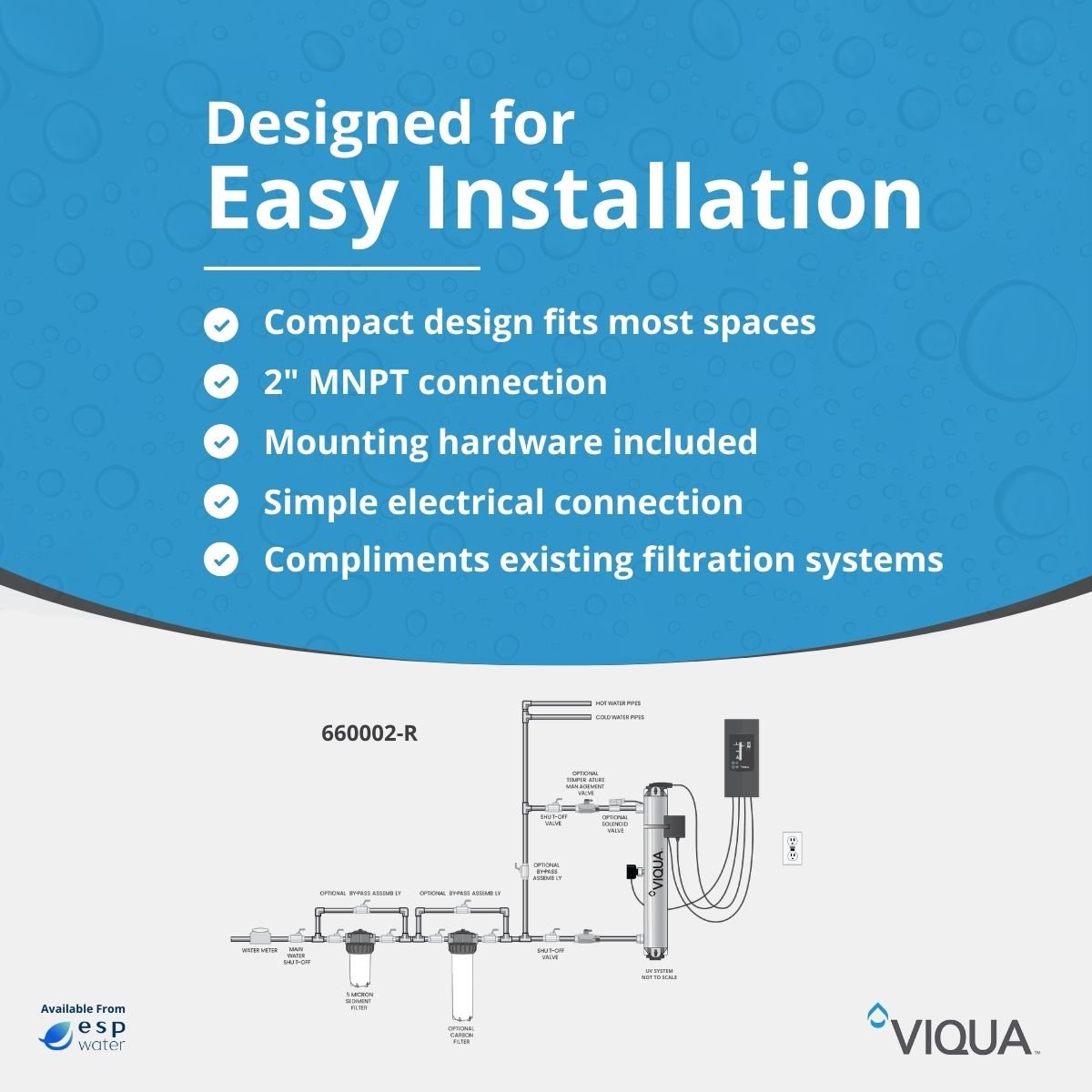

It uses 2-inch MNPT inlet and outlet connections. Allow room for shutoff valves, service clearance, and the controller and fan.
Q:
Does the K+ include UV performance monitoring?
A:
Yes. The K+ includes a UV sensor for real-time performance feedback, plus a controller with lamp-life display and audible reminders.
Q:
How often is the lamp replaced?
A:
The high-output amalgam lamp is rated for up to two years. Follow controller hours and alarms, and service the quartz sleeve and seals at the same time.
Q:
What electrical supply does 660002-R accept?
A:
It accepts 100–240 volts at 50–60 Hz. Confirm the supplied plug, grounding, and local electrical requirements.
Q:
What water conditions and prefiltration should I verify?
A:
Size pretreatment to keep sediment and other water-quality parameters within the VIQUA specification. UV treats water with light and does not remove sediment, hardness, or dissolved solids.
